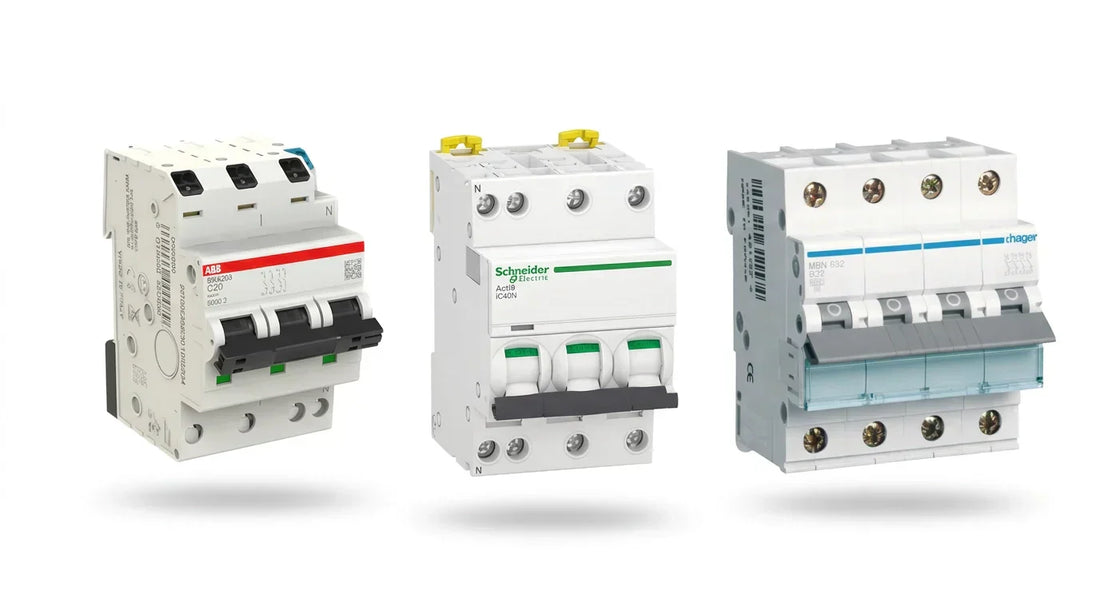

Circuit breakers explained: B, C or D characteristic - which one is the right one?
Whether for home installations, workshops, or industrial plants — the right circuit breaker protects wiring from overload and short circuits. But what do the letters B, C, and D actually mean? And which characteristic do you need for your project? We'll explain.
What is a circuit breaker?
A miniature circuit breaker (MCB) is the heart of every fuse box. It protects electrical wiring from overload and short circuits by automatically interrupting the circuit when the current exceeds a critical value.
Unlike a traditional fuse, a circuit breaker can simply be reset after tripping — no fuse replacement is necessary.
Each circuit breaker has two tripping mechanisms:
- Thermal trip (bimetal): Reacts to sustained overload — the higher the current is above the nominal value, the faster it trips.
- Electromagnetic trigger (coil): Reacts instantly to short-circuit currents — i.e., to very high currents that occur suddenly.
The letter on the circuit breaker—B, C, or D—determines the multiple of the rated current at which the electromagnetic instantaneous trip unit activates. And this is precisely the crucial difference.
The three trigger characteristics in detail
B-characteristic — The standard for home use
The B-characteristic trips electromagnetically at a current between 3 and 5 times the rated current . It is therefore the most sensitive of the three variants and offers the best protection for cables in residential buildings.
Typical areas of application:
- Electrical outlet circuits in homes and offices
- Lighting circuits
- Household appliances (refrigerator, washing machine, stove)
- Basically anywhere where high inrush currents do not occur.
Rule of thumb: If you are unsure which characteristic you need — in 90% of cases in residential buildings, B is the right choice.
C-characteristic — For motors and devices with inrush current
The C-characteristic trips at a current between 5 and 10 times the rated current . This allows it to tolerate significantly higher current peaks during switch-on.
Many electrical devices draw several times their rated current briefly when switched on—the so-called inrush current. A type B circuit breaker would trip unnecessarily in such a case. A type C circuit breaker tolerates these short current spikes without compromising the circuit protection.
Typical areas of application:
- Electric motors (pumps, fans, compressors)
- Wallbox
- Air conditioners and heat pumps
- Machine tools in the workshop
- Group insurance with multiple consumers
- IT power supplies and servers with high inrush current
Caution: C-type circuit breakers offer less sensitive protection against short circuits in long, thin cables than B-type circuit breakers. Therefore, only use them in residential installations if there is a specific reason.
D-characteristic — The robust variant for industry
The D-characteristic only trips at a current between 10 and 20 times the rated current . It is designed for devices with extremely high inrush currents and has no place in normal household installations.
Typical areas of application:
- Transformers (especially toroidal transformers)
- Welding equipment
- Large three-phase motors
- X-ray equipment
- Solenoid valves in industrial plants
Comparison at a glance
To help you quickly grasp the differences, here's an overview:
- B-characteristic: Magnetic tripping at 3–5 × rated current | High sensitivity | Primarily used in homes
- C-characteristic: Magnetic tripping at 5–10 × rated current | Medium sensitivity | Primarily used in motors and industrial applications
- D-characteristic: Magnetic tripping at 10–20 × rated current | Low sensitivity | Mainly used in industry
The 5 most common mistakes when making a selection
1. "I'll just use C, then it won't trigger so quickly."
Wrong. A C-type circuit breaker, where a B-type would suffice, reduces short-circuit protection. The breaker must be suitable for the wiring, not for convenience.
2. Rated current selected too high
A 16A circuit breaker protects a 1.5 mm² cable. Connecting a 20A circuit breaker to the same cable is a fire hazard. The circuit breaker must be compatible with the cable , not the appliance.
3. B and C confused in motor circuits
If your B-type compressor keeps tripping when you turn on the compressor, that's not a defect - you simply need a C-type compressor.
4. Selectivity ignored
In a distribution system, the downstream circuit breaker should always trip first, not the upstream one. This only works if the rated currents and characteristics are matched.
5. No residual current device (RCD) in front of it
A circuit breaker protects wiring, not people . For personal protection, you also need a residual current device (RCD). The two complement each other, but they are not interchangeable. You can learn more in our article about Type A vs. Type B RCDs .
How to choose the right circuit breaker
- Determine the conductor cross-section — this will give you the maximum rated current.
- Check the consumers — are there any motors or devices with high inrush current?
-
Choose the characteristic:
No special inrush currents → B
Motors, compressors, air conditioning, wallbox → C
Transformers, welding equipment, industrial motors → D - When in doubt: ask a specialist company — electrical installation is not a hobby project.
Rated current and conductor cross-section — The most important assignment
The correct characteristic is of little use if the rated current does not match the conductor cross-section. Here are the most common assignments for the installation method in residential buildings:
- 1.5 mm² — maximum 16 A (standard for lighting and individual sockets)
- 2.5 mm² — maximum 20 A (stove, washing machine, higher current consumers)
- 4.0 mm² — maximum 25 A
- 6.0 mm² — maximum 32 A
Important: These values apply to standard installation. Depending on the installation method, ambient temperature, and grouping, different values may apply. Precise dimensioning must always be carried out according to the applicable standards (ÖVE/ÖNORM E 8001 or DIN VDE 0298-4).
Conclusion
Choosing the right tripping characteristic isn't rocket science: B for residential use, C for motors, D for industrial applications. More important than the characteristic itself is often the correct rated current for the conductor cross-section—and making sure a residual current device (RCD) isn't forgotten for personal protection.
Are you looking for the right circuit breaker for your project? At techarena24.shop you will find circuit breakers of all characteristics from brand manufacturers - delivered quickly and fairly priced.
Note: Work on the electrical system may only be carried out by qualified electricians. This information is for guidance only and does not replace professional planning.
