Hager LS-FI switches: The perfect combination of circuit protection and residual current protection
Circuit breakers with residual current devices (RCDs), also known as combination switches, offer combined circuit protection and residual current protection in a single device. The German manufacturer Hager is renowned for its high-quality RCDs, which ensure maximum safety and functionality in both residential and commercial buildings. This article explains how Hager RCDs work, their advantages, and their applications in modern electrical installations.
What is an LS-FI switch?

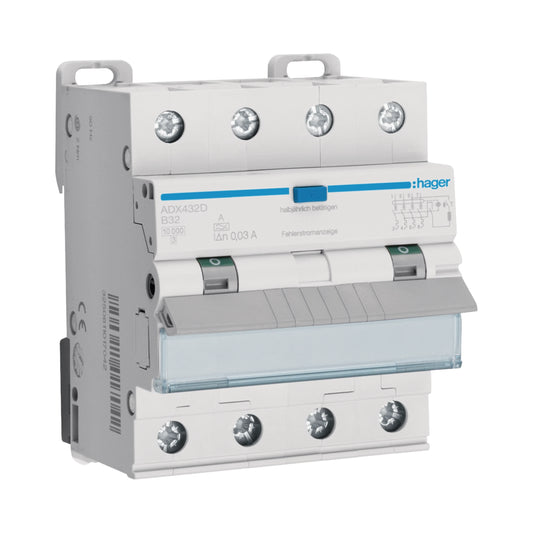

A LS-FI switch (Circuit breaker with residual current protection) combines two important safety functions in one compact device:
-
Line protection (LS): This part of the switch protects cables from overload and short circuit. If an overcurrent occurs, the circuit breaker cuts off the power supply, thus preventing the cable from overheating and being damaged.
-
Residual current protection (RCD): Residual current device (RCD) ensures that in the event of a ground fault or a fault current, the power supply is immediately interrupted, thus preventing dangerous electric shocks. This is particularly important in areas where moisture or direct contact with live wires poses a risk.
Hager's LS-FI switches combine these two safety functions in a compact module, thus offering a space-saving and efficient solution for electrical installations.
Advantages of Hager LS-FI switches at a glance
-
Combination of two protective functions : The biggest advantage of a Hager circuit breaker with residual current device (RCD) is the combination of circuit protection and residual current protection in a single device. This saves space in the distribution box and reduces installation effort.
-
High-quality workmanship and durability : Hager is known for its high quality standards. The circuit breakers/residual current devices (RCDs) are robust and designed for a long service life, making them ideal for demanding installations in residential and commercial buildings.
-
Easy installation and maintenance : Hager's residual current circuit breakers (RCCBs) are designed for quick and easy installation on standard DIN rails. Thanks to their compact design, the devices save space and simplify installation in small distribution boards.
-
Reliable protection against overload and earth fault : Thanks to their high precision and fast response time, Hager LS-FI switches ensure maximum safety in the event of a short circuit or fault current.
-
Increased safety in damp rooms and outdoor areas : Residual current protection offers additional protection in areas where moisture poses an increased risk, such as bathrooms, kitchens or outdoor areas.
Application areas of Hager LS-FI switches
Hager's residual current circuit breakers (RCCBs) are used in a wide variety of applications and offer an excellent safety solution, particularly in the following areas:
-
Residential buildings : In private homes, residual current circuit breakers (RCCBs) provide protection for the entire house installation. They protect cables from overload and offer residual current protection in all rooms, including bathrooms and kitchens.
-
Commercial applications : In offices, shops and other commercial establishments, combination switches provide protection for electrical equipment and wiring.
-
Industry and outdoor facilities : In industrial environments and outdoor areas, residual current circuit breakers (RCCBs) ensure that machines and systems are automatically switched off in the event of overcurrent or earth fault.
Important selection criteria for Hager LS-FI switches
When choosing a Hager residual current circuit breaker (RCCB), several technical factors must be considered:
-
Rated current and tripping current : Depending on the circuit to be protected, the residual current device (RCD) should be designed for the correct rated current (e.g. 16 A or 25 A) and tripping current (e.g. 30 mA).
-
Number of poles and application : Circuit breakers with residual current devices (RCDs) are available as 1-pole or 2-pole models for various applications. 3-pole and 4-pole versions are available for three-phase systems.
-
Circuit breaker characteristics : The circuit breaker characteristic (e.g., type B, C, or D) must be selected according to the requirements. Type B is suitable for most household applications, while types C and D are suitable for industrial applications.
-
Recommended installation and accessories : For certain applications, Hager offers accessories such as locks and protective covers that further increase functionality and safety.
Installation tips for Hager MCBs (miniature circuit breakers with residual current devices).
For optimal functioning of the residual current circuit breaker (RCCB), professional installation is essential. It is important to select the correct conductor cross-sections and ensure secure connections. Since the RCCB is sensitive to fault currents, all installations should be checked regularly. Professional installation ensures that in the event of a fault, the current is interrupted quickly and reliably, thus minimizing the risk of damage and accidents.
Conclusion
The LS-FI switches from Hager They offer an intelligent and space-saving solution for modern electrical installations, combining safety and functionality. They are the ideal choice for residential buildings, commercial properties, and industrial environments where circuit protection and residual current protection are required. Thanks to their high quality and durability, they are highly reliable. Hager products Installers and users can rely on dependable protection and ease of use. With the right Hager circuit breaker/residual current device (RCD), electrical installations can be designed to be safe, efficient, and future-proof.
