Hager RCBO, characteristic curve C, 16A, 30mA, 4-pole, type A - ADX466D

€137,90 EUR

Sale Sold out

Taxes included. Shipping calculated at checkout.

In stock

Delivery time: 2-5 working days

PayPal Buyer Protection
Klarna purchase on account
Free shipping within DE & AT from 149€

SKU:VER0229 / ADX466D

View full details

Product details

DESCRIPTION

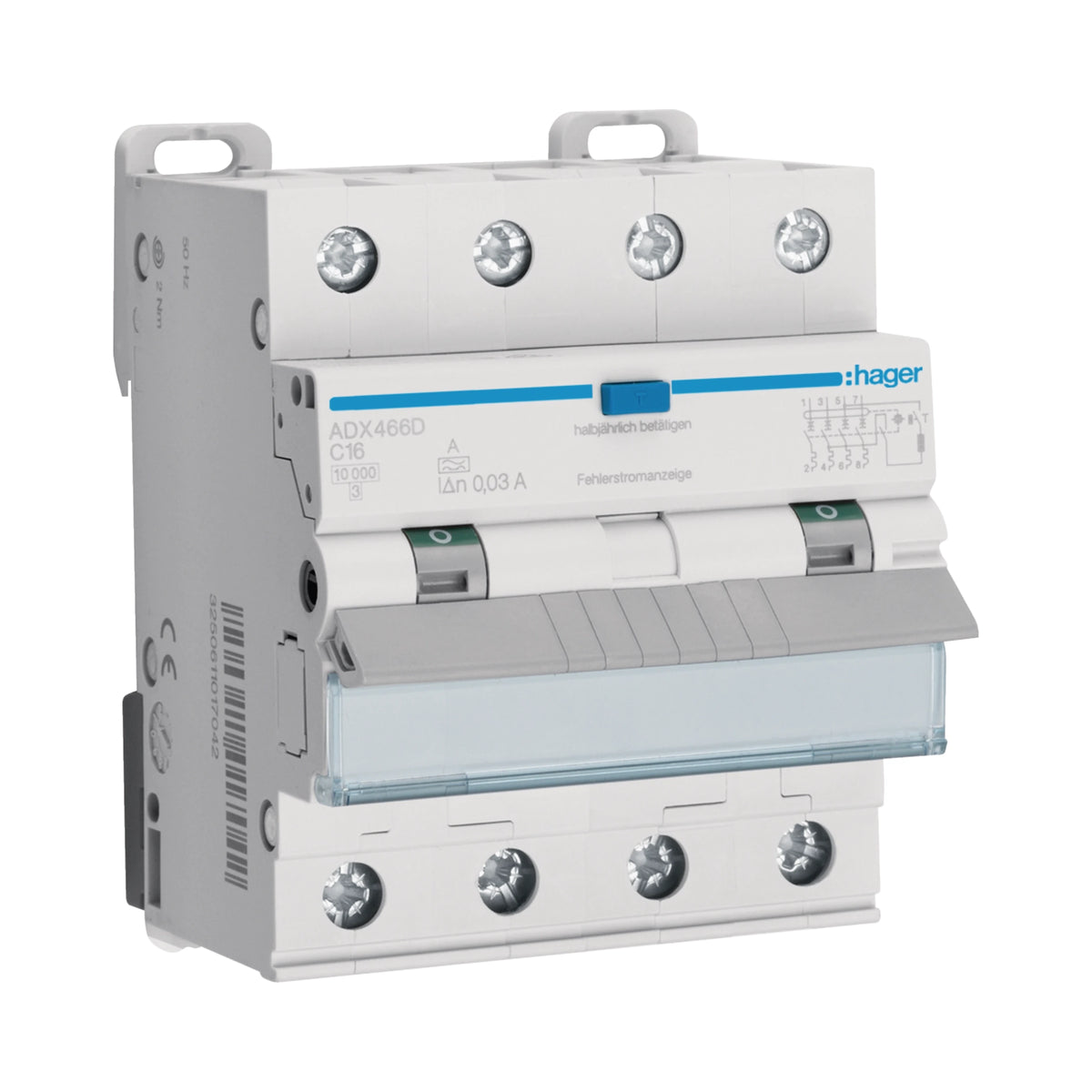

Hager RCBO ADX466D – 4-pole, C-16 A, 30 mA, Type A, 10 kA

The Hager FI-LS switch ADX466D is a residual current circuit breaker for 400 V three-phase circuits.

It operates according to EN 61009-1 and combines line protection and residual current protection in a compact housing.

A blue test button is provided, while a residual current indicator facilitates functional testing.

The device can be individually removed from the busbar assembly, and additional equipment can be retrofitted.

Technical Product Details ADX466D

Device type: Residual current circuit breaker , 4-pole design.
Rated current: 16 A with tripping characteristic C.
Rated residual current Idn: 30 mA , implemented as residual current protection type A.
Rated breaking capacity Icn: 10 kA according to IEC 60898-1.
Total power loss at rated current: 10.90 W.
Insulation voltage Ui: 500 V , while the impulse voltage resistance is 4000 V.
Frequency: 50Hz .

Connection data

Flexible connection cross-section with screws: 1–16 mm² .
Solid connection cross-section with screws: 1–25 mm² .

equipment

Blue test button with integrated residual current indicator.
Easy individual removal from the busbar assembly.
Labeling option directly on the device.

Conclusion on the ADX466D

The Hager ADX466D combines line protection and residual current protection and is suitable for reliable three-phase applications.

Manufacturer part number : ADX466D
Article number : VER0229

SHIPPING & RETURNS

Shipping costs: free shipping within the EU for orders over €149; for orders under €149, we charge €5.90 shipping costs.

Switzerland: flat rate €25.00

Returns: You can cancel your purchase within 14 days of receipt and then return the products to us. Please note that for sustainability reasons and a fair pricing philosophy, we only cover return shipping costs in the case of a defect or warranty claim.

MANUFACTURER'S IDENTIFICATION

Hager Elektro Ges.mbH
Dieselgasse 3
2333 Leopoldsdorf
info-austria@hager.com

Downloads - Datenblatt:

Hager RCBO, characteristic curve C, 16A, 30mA, 4-pole, type A - ADX466D – Datenblatt
