Hager

Hager RCBO, characteristic curve C, 32A, 30mA, 4-pole, type A - ADX482D

€179,90 EUR

Sale Sold out

Taxes included. Shipping calculated at checkout.

In stock

Delivery time: 2-5 working days

PayPal Buyer Protection
Klarna purchase on account
Free shipping within DE & AT from 149€

SKU:VER0232 / ADX482D

View full details

Product details

DESCRIPTION

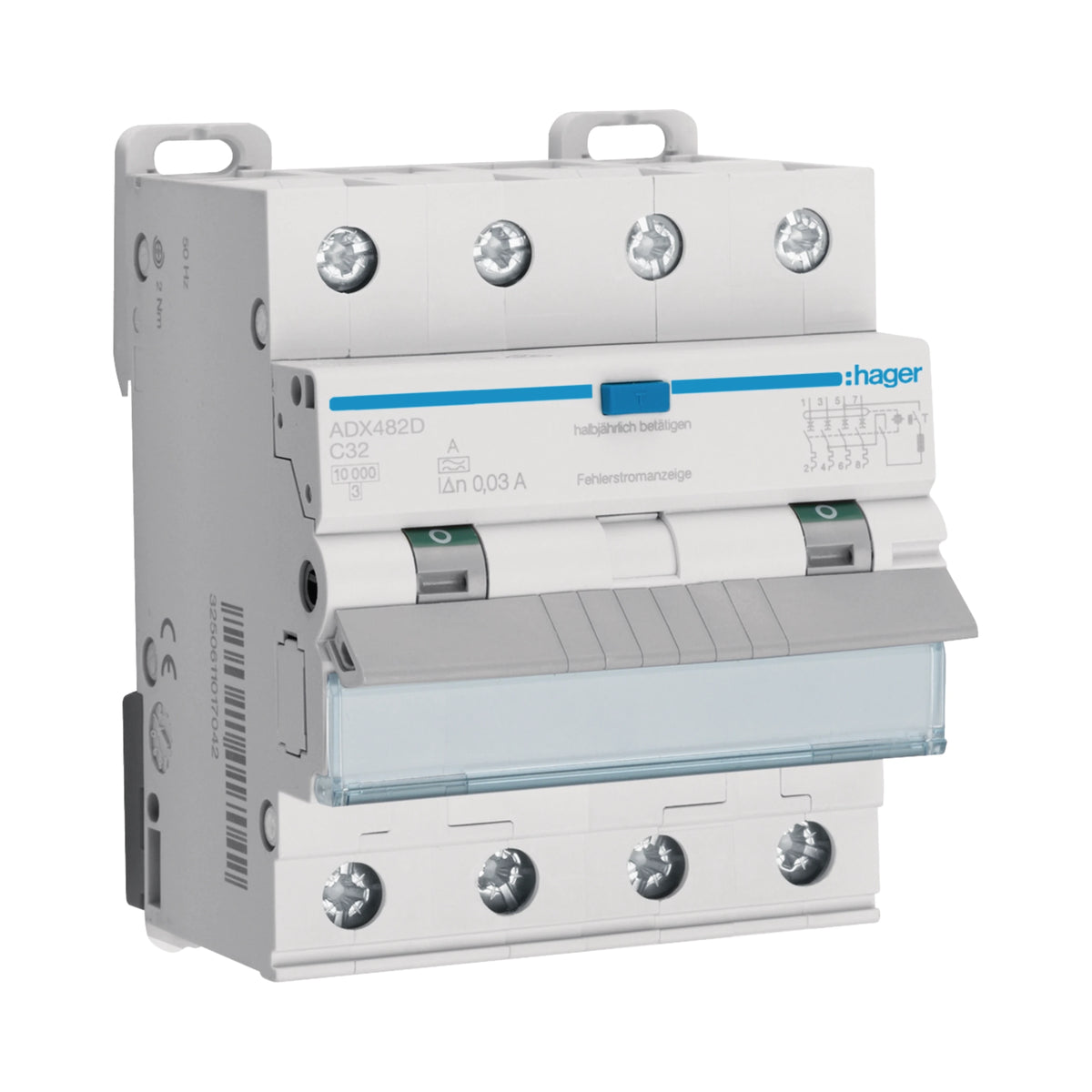

Hager RCBO ADX482D – 4-pole, C-32 A, 30 mA, Type A, 10 kA

The Hager FI-LS switch ADX482D combines residual current protection and line protection for use in three-phase circuits.

It operates according to EN 61009-1 and combines circuit breakers and residual current protection in one compact device.

The blue test button is present, while a residual current indicator facilitates monitoring during operation.

The device can be individually removed from the busbar assembly, and additional equipment can be retrofitted.

Technical Product Details ADX482D

Device type: Residual current circuit breaker , 4-pole design.
Rated current: 32 A with tripping characteristic C.
Rated residual current Idn: 30 mA , implemented as residual current protection type A.
Rated breaking capacity Icn: 10 kA according to IEC 60898-1.
Insulation voltage Ui: 500 V , while the impulse voltage resistance is 4000 V.
Total power loss at rated current: 14.60 W.
Frequency: 50 Hz .

Connection data

Flexible connection cross-section with screws: 1–16 mm² .
Solid connection cross-section with screws: 1–25 mm² .

equipment

Blue test button with integrated residual current indicator.
Easy individual removal from the busbar assembly.
Labeling option directly on the device.

Conclusion on the ADX482D

The Hager ADX482D combines line protection and residual current protection and is suitable for demanding three-phase applications.

Manufacturer part number : ADX482D
Article number : VER0232
