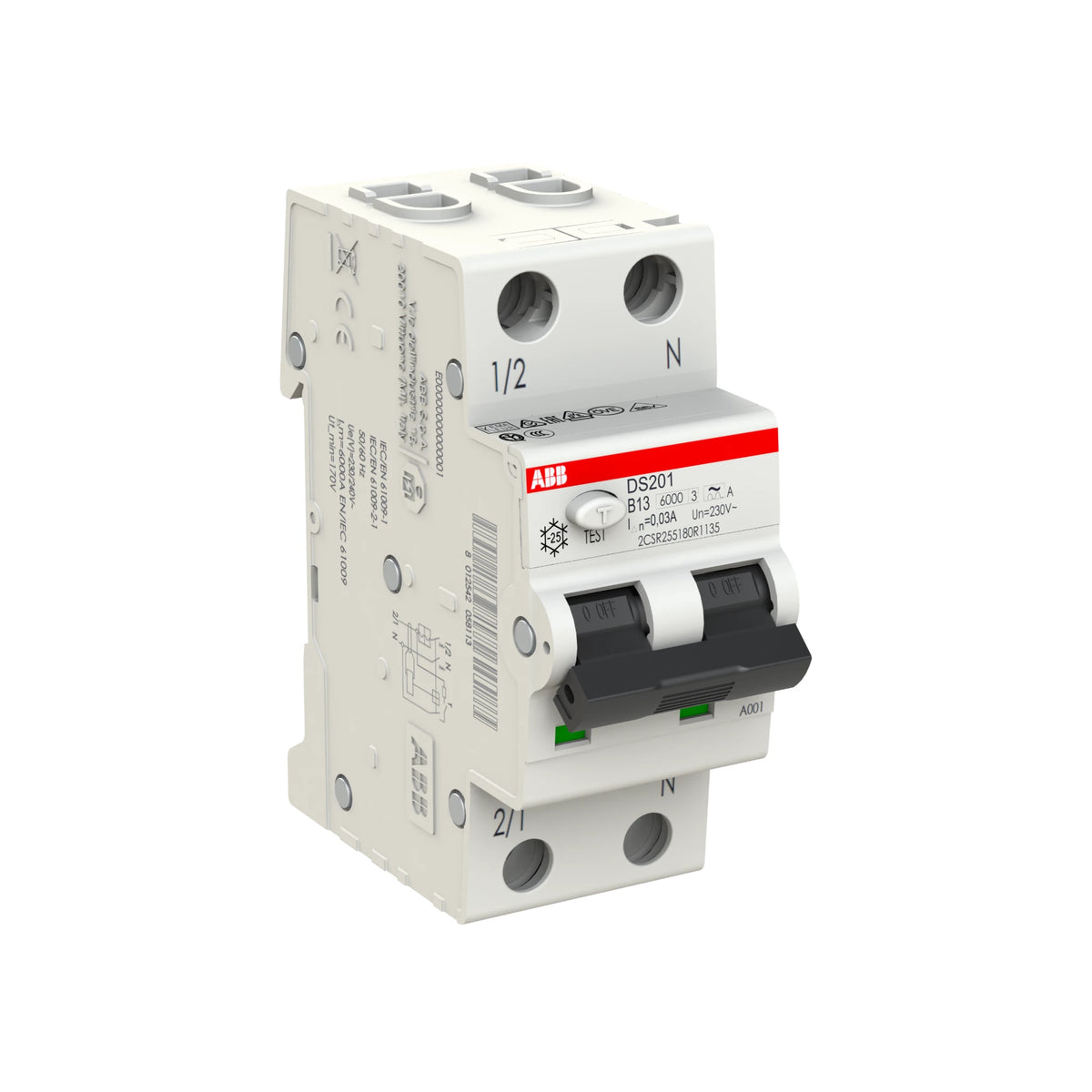

ABB DS201 B13 A30 – RCBO for combined residual current and line protection
The ABB DS201 B13 A30 provides combined residual current and line protection for AC circuits. It trips at a fault current of 30 mA and in case of overload from 13 A. Furthermore, as a Type A device, it detects both AC and pulsating DC fault currents.
Your benefits at a glance
-
Two protection functions: residual current device (RCD) protection and line protection in one device – saves space and costs.
-
Personal protection: 30 mA residual current tripping reliably protects against dangerous touch currents.
-
Characteristic B: Perfect for lighting, sockets and household appliances (13 A).
-
Pulse current sensitive (Type A): Detects alternating and pulsating DC fault currents.
-
Compact: Only 2 TE (35.0 mm) on the DIN rail.
-
ABB quality: Tested according to IEC/EN 61009 and approved worldwide.
Protective function and use
As a Type A circuit breaker, the DS201 B13 A30 detects both sinusoidal AC fault currents and pulsating DC fault currents. This makes it suitable for circuits with modern electronic devices such as LED dimmers or switched-mode power supplies. Its Type B tripping characteristic triggers at 3 to 5 times the rated current. Therefore, this circuit breaker is particularly suitable for lighting, sockets, and typical household appliances.
Technical data
-
Article number: 2CSR255180R1135
-
Number of poles: 1+N (1-pole protected, N switching)
-
Rated current: 13 A
-
Trigger characteristic: B
-
Rated residual current: 30 mA
-
Type: A
-
Rated breaking capacity: 6 kA according to IEC/EN 61009
-
Rated voltage: 230 V AC
-
Terminal type: Screw terminals
-
Connection cross-section: up to 25 mm²
-
Division units: 2 TE (35.0 mm)
-
Frequency: 50/60 Hz
Assembly and wiring
The DS201 B13 A30 easily snaps onto a 35 mm DIN rail. You then connect the conductors using the screw terminals. Power can be fed in from both the top and bottom. Additionally, you can connect the RCBO (residual current circuit breaker with overload protection) to the ABB PS busbar system. Furthermore, the test button simplifies regular functional testing of the RCD section.
Standards and approvals
- IEC/EN 61009-1
- DIN VDE 0664-20, 0664-21
- DIN VDE 0100-410
- DIN VDE 0100-530
- CE marked
