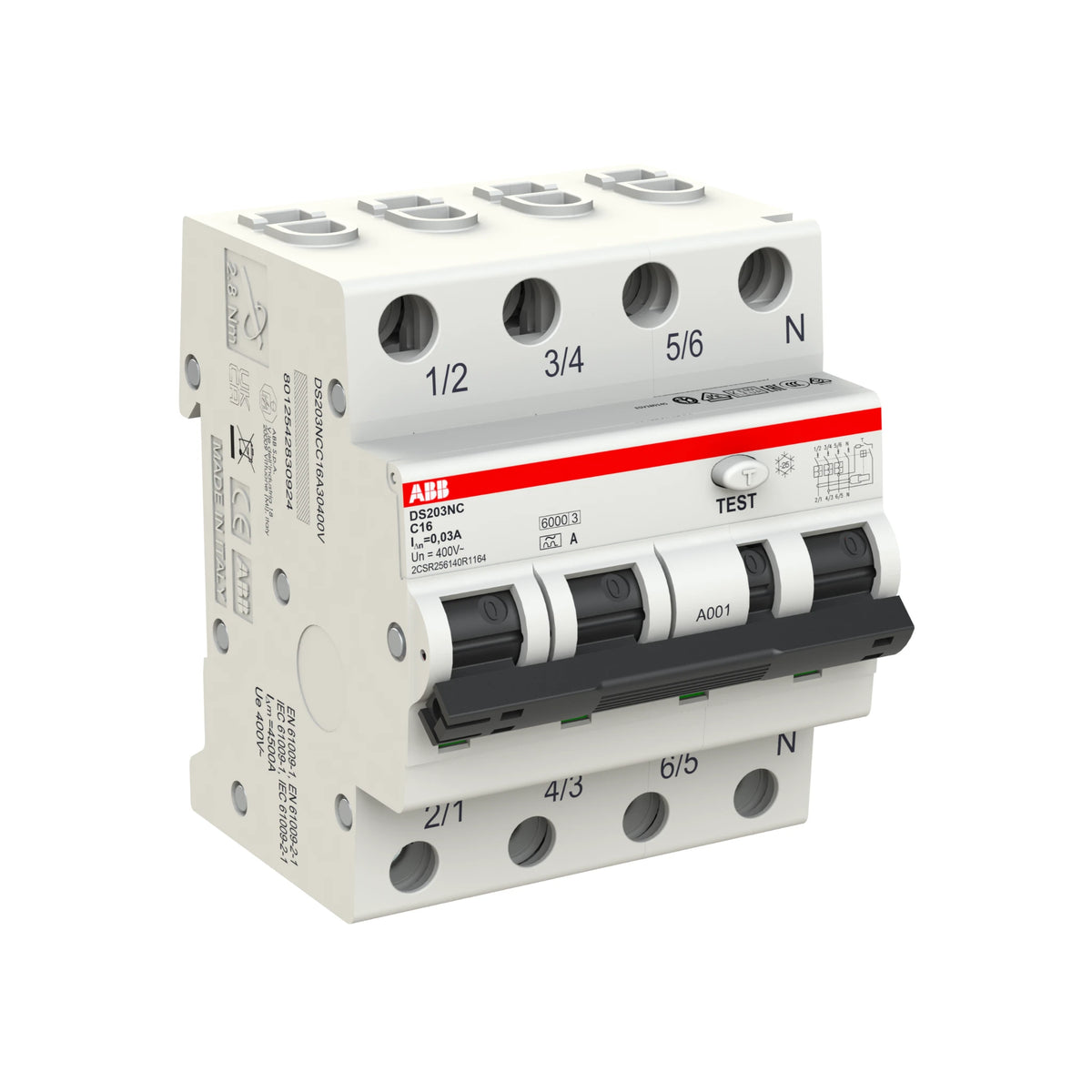

ABB DS203NC C16 A30 – Residual Current Circuit Breaker with Overcurrent Protection for Three-Phase Circuits
The ABB DS203NC C16 A30 offers combined residual current and line protection for three-phase circuits. It provides 3-pole protection and 4-pole switching. It reliably trips at 30 mA residual current and 16 A overcurrent. It is also suitable for three-phase loads such as cooker connections, wallboxes, or sauna heaters.
Your benefits at a glance
-
Two protection functions: residual current device (RCD) protection and line protection in one device – saves space and costs.
-
Personal protection: 30 mA residual current tripping reliably protects against dangerous touch currents.
-
Characteristic C: Optimal for consumers with higher inrush currents (16 A).
-
Pulse current sensitive (Type A): Detects alternating and pulsating DC fault currents.
-
Compact: Only 4 TE (70.0 mm) on the DIN rail.
-
ABB quality: Tested according to IEC/EN 61009 and approved worldwide.
Protective function and use
As a Type A residual current device (RCD), the DS203NC C16 A30 detects both sinusoidal AC fault currents and pulsating DC fault currents. This makes it suitable for circuits with modern electronic devices such as LED dimmers or switched-mode power supplies. Its C-type tripping characteristic triggers at 5 to 10 times the rated current. Therefore, it is also suitable for devices with higher inrush currents, such as air conditioners or heat pumps.
Technical data
-
Article number: 2CSR256140R1164
-
Number of poles: 3+N (3-pole protected, N switching)
-
Rated current: 16 A
-
Trigger characteristic: C
-
Rated residual current: 30 mA
-
Type: A
-
Rated breaking capacity: 6 kA (IEC/EN 61009), 10 kA (IEC/EN 60947-2)
-
Rated voltage: 400 V AC
-
Terminal type: Screw terminals
-
Connection cross-section: up to 25 mm²
-
Division units: 4 TE (70.0 mm)
-
Frequency: 50/60 Hz
Assembly and wiring
The DS203NC C16 A30 simply snaps onto a 35 mm DIN rail. You then connect the conductors using the screw terminals. Power can be fed in from both the top and bottom. Additionally, you can connect the RCBO (residual current circuit breaker with overload protection) to the ABB PS busbar system. This simplifies wiring when multiple devices are installed in a distribution board.
Standards and approvals
- IEC/EN 61009-1
- DIN VDE 0664-20, 0664-21
- DIN VDE 0100-410
- DIN VDE 0100-530
- CE marked
