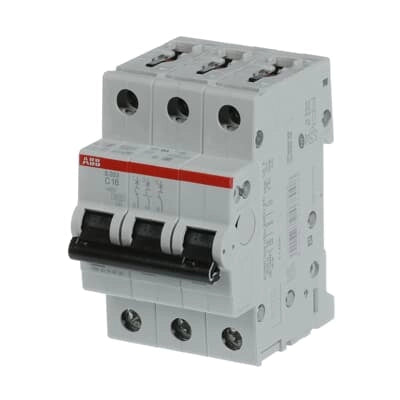

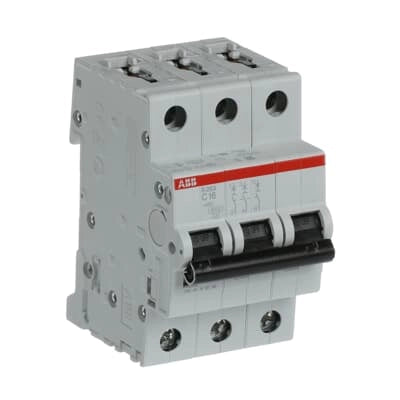

ABB S203-C16 – 3-pole circuit breaker for safe electrical installations
The ABB S203-C16 is a proven 3-pole circuit breaker for safe electrical installations. It reliably protects your circuits against overload and short circuits at a rated current of 16 A. Furthermore, its breaking capacity of 6 kA ensures safe disconnection even in the event of high fault currents.
Your benefits at a glance
-
Secure connection: The screw terminals accommodate conductor cross-sections of 0.75–35 mm² and ensure permanently secure contacts.
-
Space-saving: With 3 TE (52.5 mm width), the S203-C16 also fits into compact distribution boxes.
-
High breaking capacity: 6 kA rated breaking capacity according to EN 60898-1 for reliable protection against short circuits.
-
Characteristic C: Optimal for consumers with higher inrush currents such as air conditioners or motors.
-
ABB quality: Tested and approved according to international standards for worldwide use.
Application areas of the S203-C16
The C-type tripping characteristic triggers at 5 to 10 times the rated current. Therefore, this circuit breaker is ideally suited for appliances with higher inrush currents, such as air conditioners, heat pumps, or fluorescent lamps. Typical applications for this 3-phase circuit breaker include cooker connections, wallboxes, or sauna heaters. Furthermore, DIN rail mounting allows for flexible placement.
Technical data
-
Part number: 2CDS253001R0164
-
Number of poles: 3-pole
-
Rated current: 16 A
-
Trigger characteristic: C
-
Rated breaking capacity: 6 kA (according to IEC/EN 60898-1)
-
Rated voltage: 400 V AC
-
Terminal type: Screw terminals
-
Connection cross-section: 0.75–35 mm²
-
Division units: 3 TE (52.5 mm)
-
Frequency: 50/60 Hz
Mounting on DIN rail
The S203-C16 simply snaps onto a 35 mm DIN rail. Then you connect the conductors using the screw terminals. The circuit breaker is also compatible with the ABB PS busbar system, significantly simplifying wiring for multiple devices in a distribution board.
Standards and approvals
- IEC/EN 60898-1
- DIN VDE 0641-11
- CE marked
