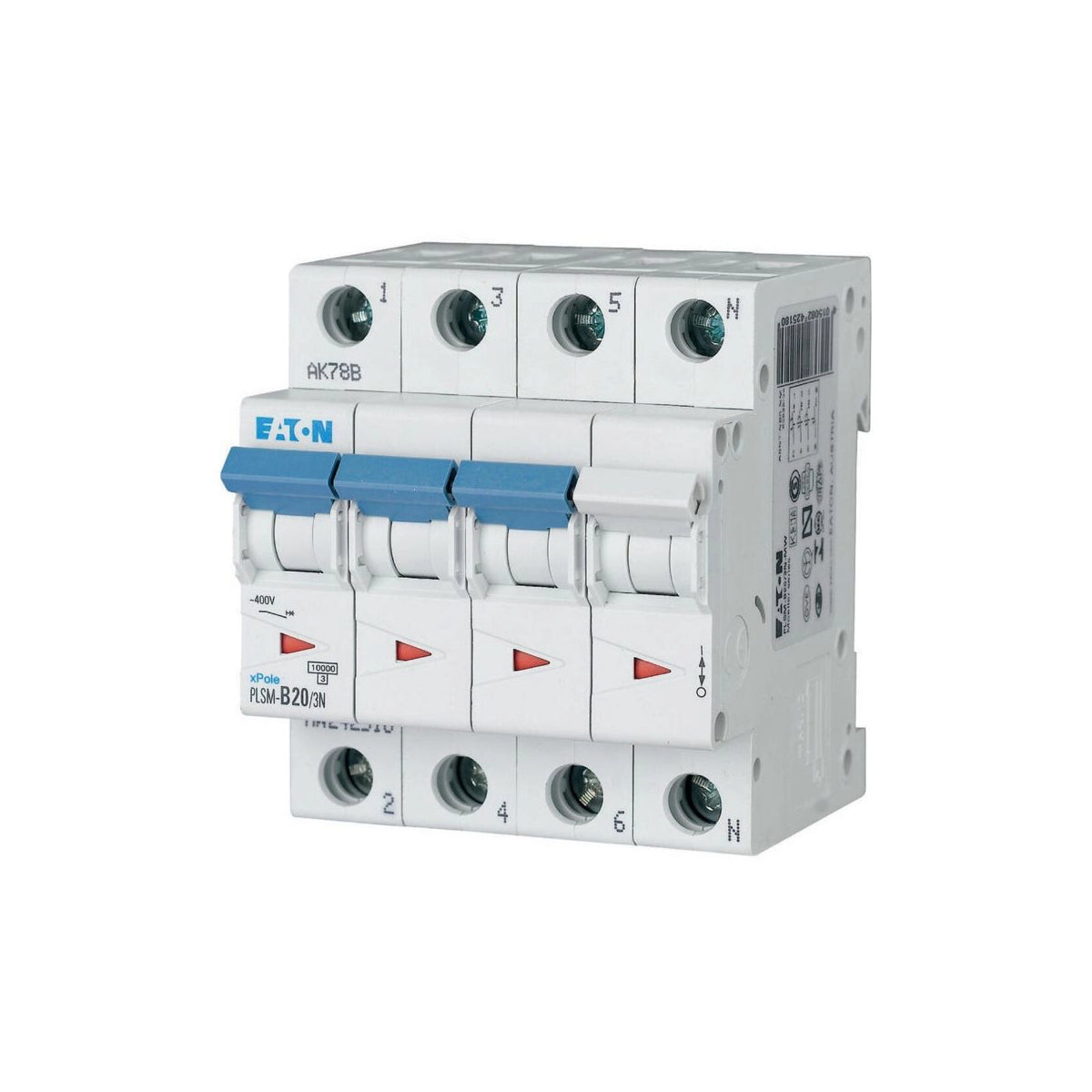

Eaton PLSM-B20/3N-MW circuit breaker
The Eaton PLSM-B20/3N-MW miniature circuit breaker belongs to the xPole series and offers reliable protection for three-phase circuits with neutral conductor at a rated current of 20 A. It is designed for residential and commercial buildings.
This device features a tripping characteristic B. Consequently, it is optimized for resistive loads such as heaters and sockets. Characteristic B is more sensitive to overcurrents than characteristic C. Therefore, it offers more comprehensive circuit protection, which is ideal for devices without high inrush currents.
The four-pole design disconnects the neutral conductor in addition to the three phases simultaneously. This ensures complete galvanic isolation in the event of a fault. This significantly increases safety during maintenance work and in the event of a malfunction.
Installation on the DIN rail is straightforward. Solid and stranded conductors from 1 mm² to 25 mm² can be connected. Additional accessories can also be retrofitted.
The rated breaking capacity is 10 kA according to IEC/EN 60898-1. Additionally, the operating voltage is up to 400 V AC. The insulation voltage is 440 V and the impulse voltage withstand capability is 4 kV.
Technical specifications at a glance
-
Model code: PLSM-B20/3N-MW
-
Article number: 242518
-
EAN: 4015082425180
-
Number of poles: 3-pole + N
-
Trigger characteristic: B
-
Rated current: 20 A
-
Rated breaking capacity: 10 kA (IEC/EN 60898-1)
-
Rated operating voltage: 400 V AC
-
Rated insulation voltage: 440 V
-
Impulse voltage withstand: 4 kV
-
Frequency: 50/60 Hz
-
Protection rating: IP20
-
Width: 4 TE (70 mm)
-
Connection cross-section (solid wire): 1 – 25 mm²
-
Connection cross-section (multi-stranded): 1 – 25 mm²
-
Energy limiting class: 3
-
Weight: 0.399 kg
-
Certifications: IEC/EN 60898-1, RoHS compliant
Protect your three-phase circuits with a neutral conductor — the Eaton PLSM-B20/3N-MW circuit breaker is the reliable choice. Order now.
