Eaton miniature circuit breaker, characteristic curve B, 3-pole, 32A - PLSM-B32/3-MW (242451)

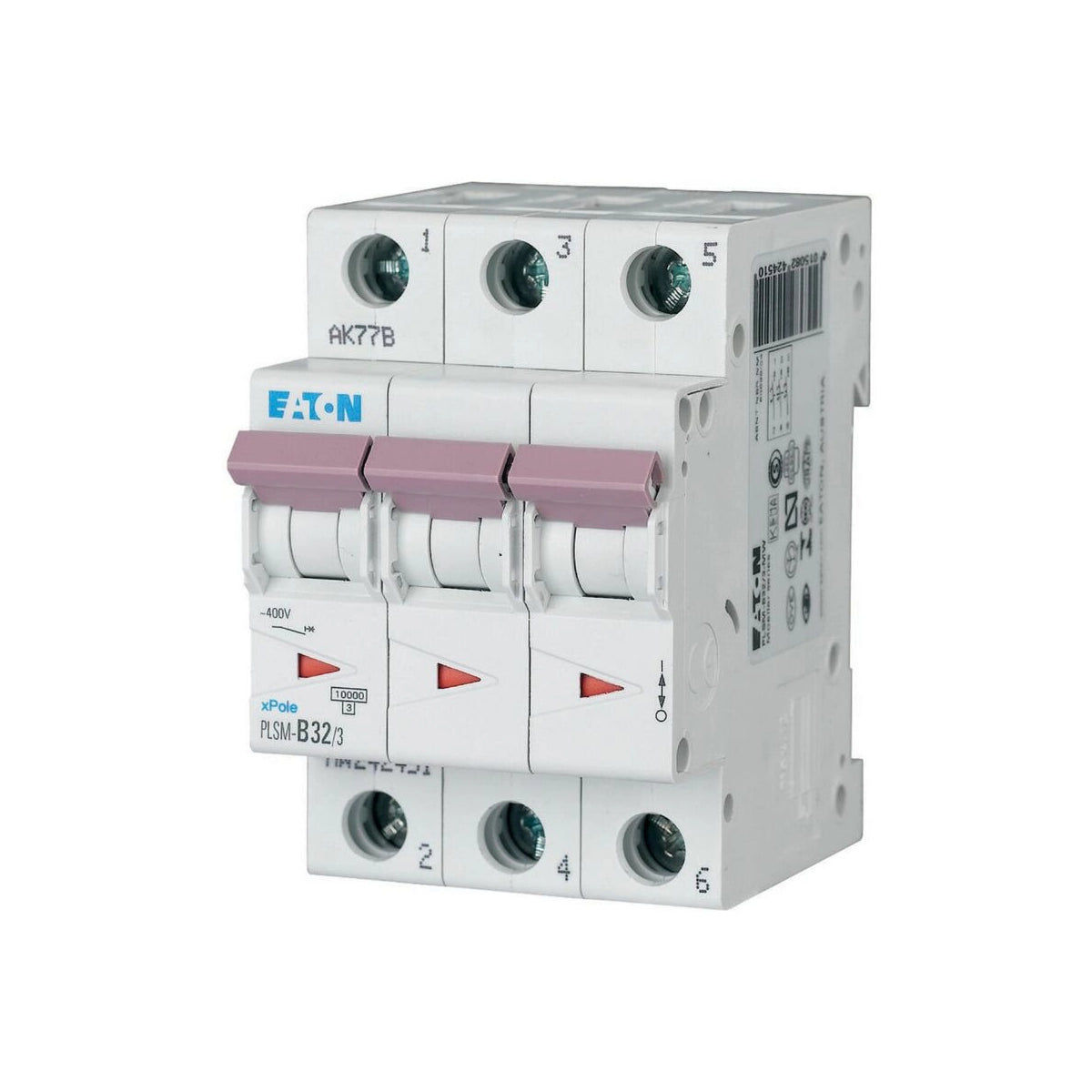

Eaton miniature circuit breaker PLSM-B32/3-MW (Part no. 242451)

The Eaton PLSM-B32/3-MW miniature circuit breaker is the ideal solution for overload and short-circuit protection in three-phase circuits. With a rated current of 32 A and a Type B tripping characteristic, this breaker offers maximum reliability and durability in demanding applications such as industrial, commercial, and residential buildings.

Key features

• Efficient overcurrent protection :
  • Type B tripping characteristic, ideal for standard circuits.

  • Rated current: 32 A , ideal for heavy loads.

  • Rated voltage: 400 V AC .



• High switching capacity :
  • Rated breaking capacity: 10 kA according to EN 60898 at 230 V and 400 V.
  • Energy limiting class 3 offers optimal protection against overcurrents.



• User-friendly design :
  • 3-pole version , protects all conductors of a three-phase circuit.

  • Compact width: 3 TE , saves space in installation.

  • Supports the integration of additional devices for extended functionality.



• Robust and durable :
  • Operating temperature range: -25 °C to +75 °C , for versatile applications.

  • Protection class IP20 , suitable for dry indoor areas.




Technical details

• Technical specifications :
  • Number of poles: 3 .

  • Frequency range: 50 - 60 Hz .

  • Power loss: 12.1 W.

  • Installation depth: 70.5 mm .


• Standards and certificates :
  • Certified according to EN 60898 and IEC 60947-2.

  • Overvoltage category: 3 , Pollution degree: 2


Applications

• Protection of three-phase electrical circuits in industrial, commercial and residential applications.

• Protection of electrical systems against overload and short circuit.

• Flexible integration into modular distribution boxes and control cabinets.


Additional benefits

• Produced by Eaton Industries , a leading manufacturer in the field of electrical engineering.

• Space-saving design for compact installations.

• Durable and robust construction for demanding applications.


The Eaton PLSM-B32/3-MW circuit breaker is the perfect choice for reliable protection and easy integration into your electrical installations.

Further information can be found at www.eaton.com .

Manufacturer part number : 242451
Article number : VER0961
