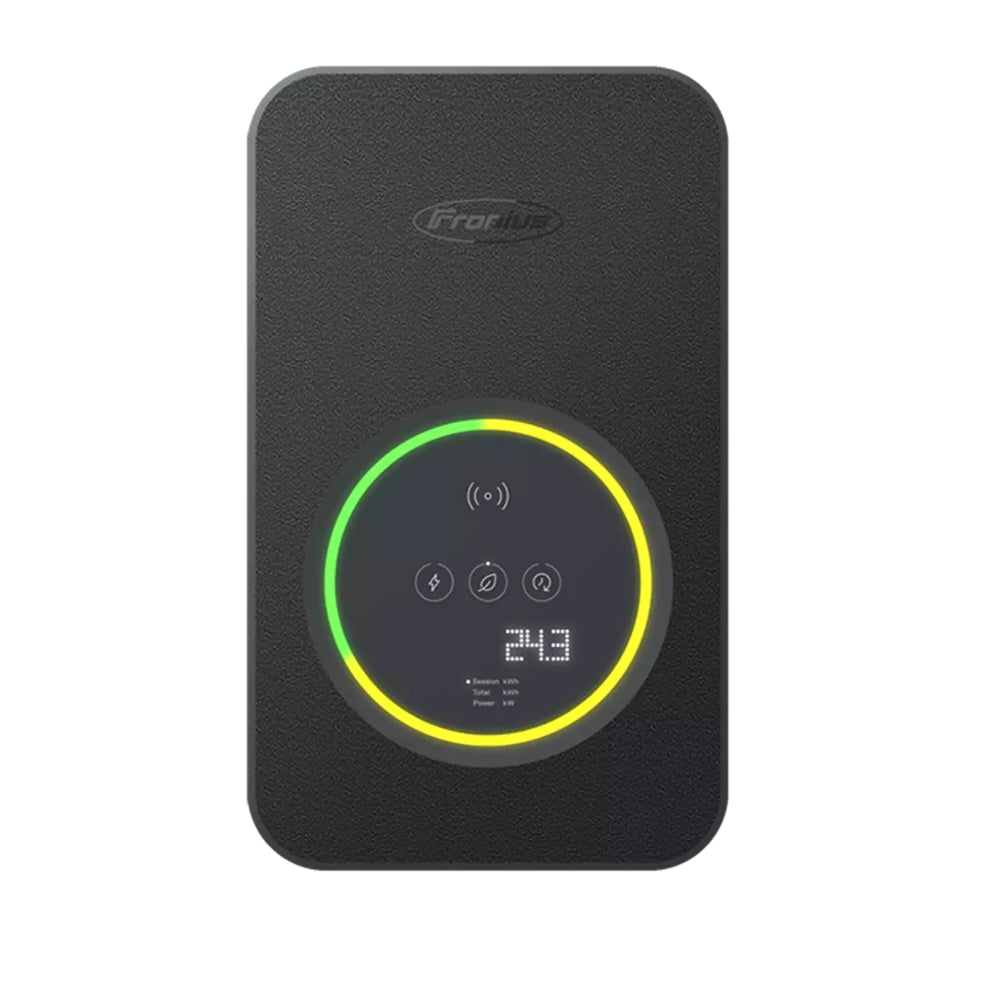

Fronius Wattpilot Flex Pro 11 C6E – PV-optimized wallbox with MID-certified meter
With the Fronius Wattpilot Flex Pro 11 C6E, you can charge your electric vehicle at home in a particularly economical way, preferably using your own solar power. This PV-optimized wallbox from the Wattpilot Flex series delivers a maximum charging power of 11 kW and automatically switches between 1- and 3-phase charging. In addition, the Fronius Wattpilot Flex Pro 11 C6E features a built-in, MID-compliant and metrology-compliant electricity meter – making it ideal for transparent billing, for example when charging company or fleet vehicles.
Highlights
- Maximum charging power of 11 kW (3-phase) or 3.7 kW (1-phase)
- Dynamic PV surplus charging from 1.38 to 11 kW with automatic 1-/3-phase switching
- Integrated MID meter (accuracy class B), measuring and metrology compliant

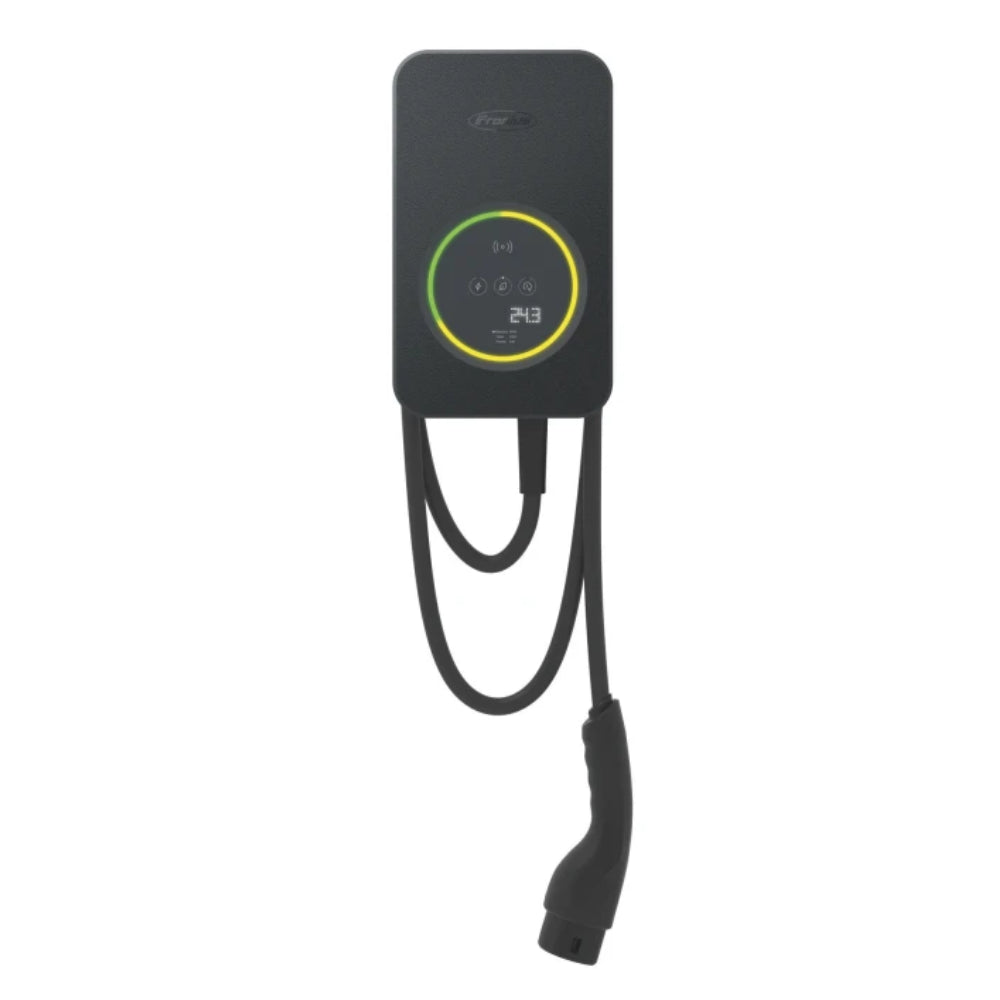

- Fixed 6 m charging cable with Type 2 charging connector
- Configurable rated current from 6 to 16 A
- Robust anthracite housing with IP66 protection rating and IK08 impact resistance
Furthermore, you can conveniently control the wallbox via the Fronius Solar.wattpilot app. It offers intelligent charging modes such as Eco Mode and Next Trip Mode. This ensures that your vehicle is either charged as economically as possible or in time for your next trip. Thanks to the app, you can also set start times and 3-phase power levels, allowing you to make optimal use of the available PV surplus. In addition, access can be enabled via RFID, reliably preventing unauthorized charging.
Intelligent charging with solar power
For PV-optimized charging, the Fronius Wattpilot Flex Pro 11 C6E uses the surplus energy from your photovoltaic system. For this, you need a compatible Fronius inverter as well as a Fronius Smart Meter on the same network. The system then intelligently distributes the available power and preferentially charges your vehicle with solar power. Furthermore, manufacturer-independent Dynamic Load Balancing is already integrated, allowing you to dynamically coordinate an unlimited number of charging stations.
Technical specifications
-
Model: Fronius Wattpilot Flex Pro 11 C6E
-
Maximum charging power: 3.7 kW (1-phase) / 11 kW (3-phase)
-
Rated current (configurable): 6 – 16 A, 1- or 3-phase
-
Rated voltage: 230/240 V (1-phase), 400/415 V (3-phase)
-
Mains frequency: 50 Hz
-
Mains types: TT / TN / IT
-
Charging operation: Mode 3 according to IEC 61851-1, AC charging
-
PV optimization: dynamic PV surplus charging 1.38 – 11 kW, automatic 1-/3-phase switching
-
Charging cable: 6 m cable with Type 2 charging connector
-
Mains connection: 5-pin screw terminal
-
Standby consumption: 3.5 W
-
Dynamic Load Balancing: integrated (unlimited number of charging stations)
-
Standards: EN IEC 61851-1, EN 62196, ISO 15118 (hardware-prepared)
Measurement & metrology
-
MID meter: integrated (accuracy class B)
-
Measuring and metrology compliance: yes
-
Pulse constant: 100,000 imp/kWh
-
Maximum current: 35 A
-
Rated current: 7 A
Communication & operation
-
Interfaces: LAN (RJ45 or LSA) 10/100 Mbit/s, WLAN 802.11 b/g/n
-
WLAN frequency: 2412 – 2472 MHz (channels 1 – 13), transmission power < 100 mW (< 20 dBm)
-
Bluetooth: prepared for BLE (2.4 GHz)
-
Communication protocol: OCPP 1.6J
-
Authentication: RFID (13.56 MHz), Solar.wattpilot app
-
Digital inputs/outputs: 2 digital inputs (e.g. for remote control receiver), 1 digital output (230 V AC / 30 V DC, 5 A)
-
Power Line Communication: physical layer according to ISO 15118-3
Dimensions & installation
-
Dimensions (H x W x D): 325 x 195 x 105 mm
-
Weight: 4.1 kg
-
Color: anthracite
-
Installation type: vertical hanging (wall mounting)
-
Supply cable cross-section: 3 x 1.5 mm² to 5 x 10 mm², cable diameter 10 – 20 mm
Environmental conditions
-
Use: indoor and outdoor
-
Ambient temperature: -25 to +40 °C
-
Storage temperature: -40 to +85 °C
-
Humidity: < 95% (non-condensing)
-
Max. altitude above sea level: 2,000 m
Safety & device protection
-
Integrated residual current protection device: 20 mA AC, 6 mA DC
-
Protection class: 1
-
Protection rating: IP66
-
Impact resistance: IK08
-
Overvoltage category: 3
-
EMC emission class: A+B
Standards & approvals
The Fronius Wattpilot Flex Pro 11 C6E is designed in accordance with EN IEC 61851-1 and EN 62196 and is hardware-prepared for ISO 15118. In addition, the integrated electricity meter complies with measuring and metrology requirements (MID). CE marking is present.
Overall, the Fronius Wattpilot Flex Pro 11 C6E thus combines intelligent solar charging, metrology-compliant billing, and a weatherproof design in a compact wallbox. This makes your charging infrastructure fit for today and tomorrow. Order the Fronius Wattpilot Flex Pro 11 C6E now and charge your electric car economically with your own solar power in the future.
