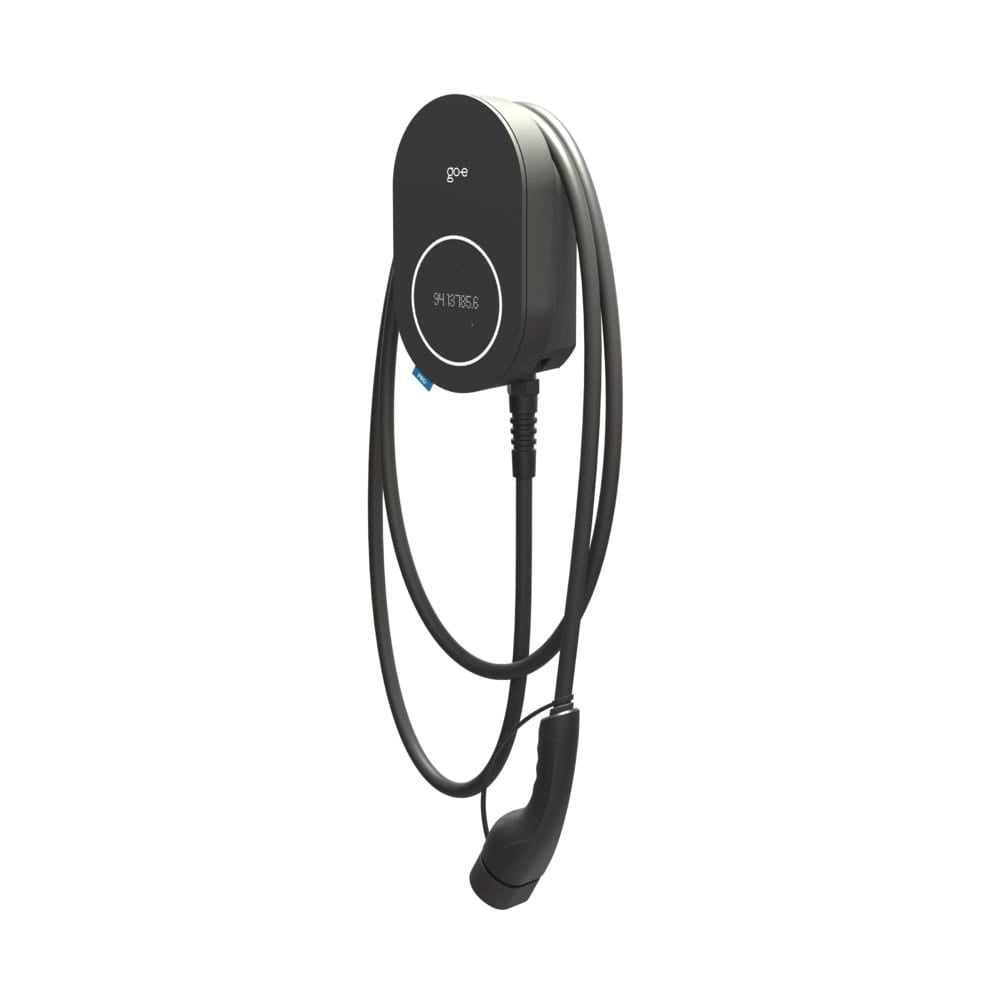

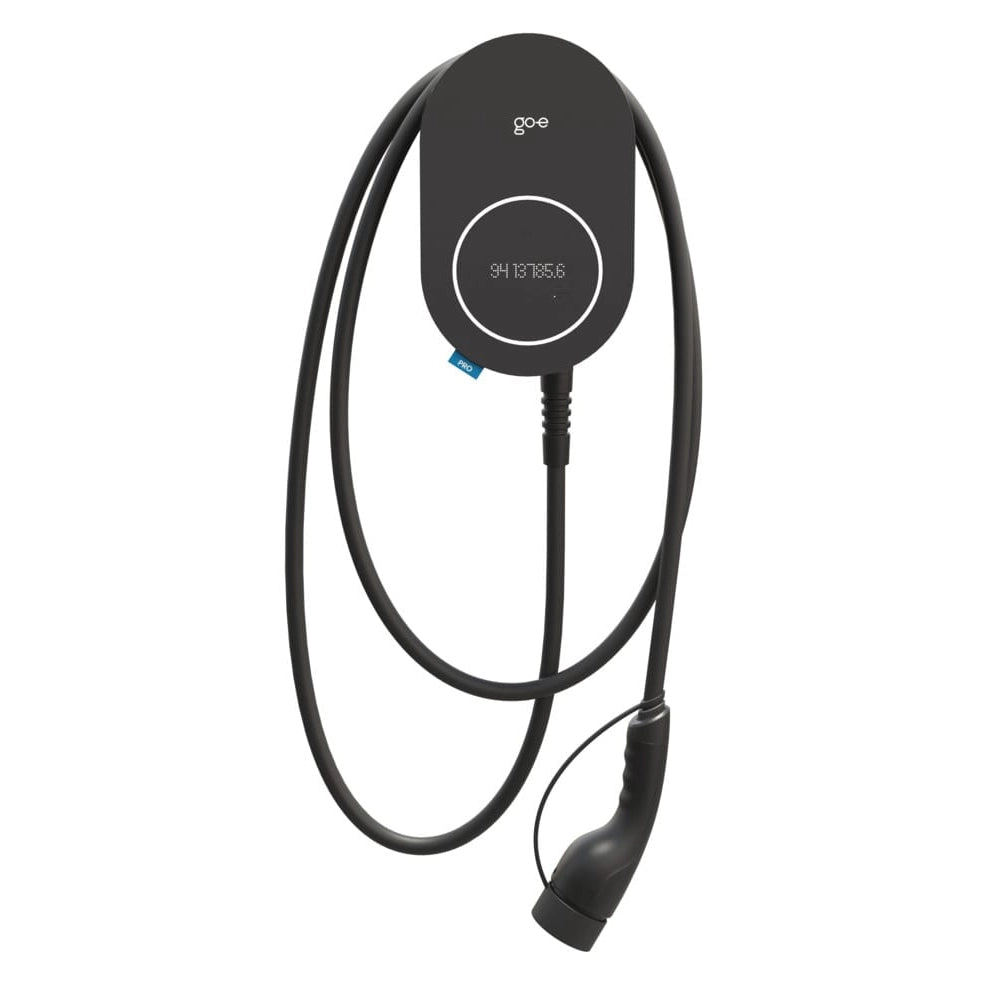

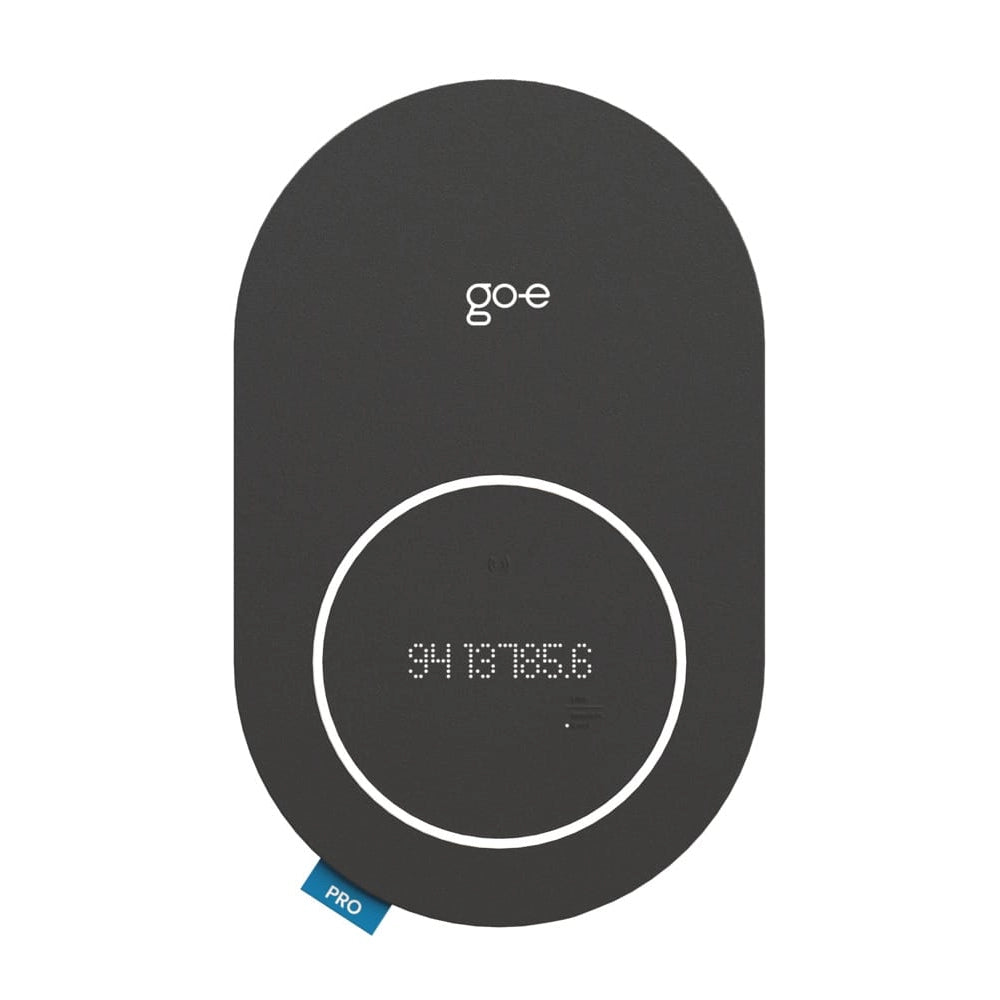

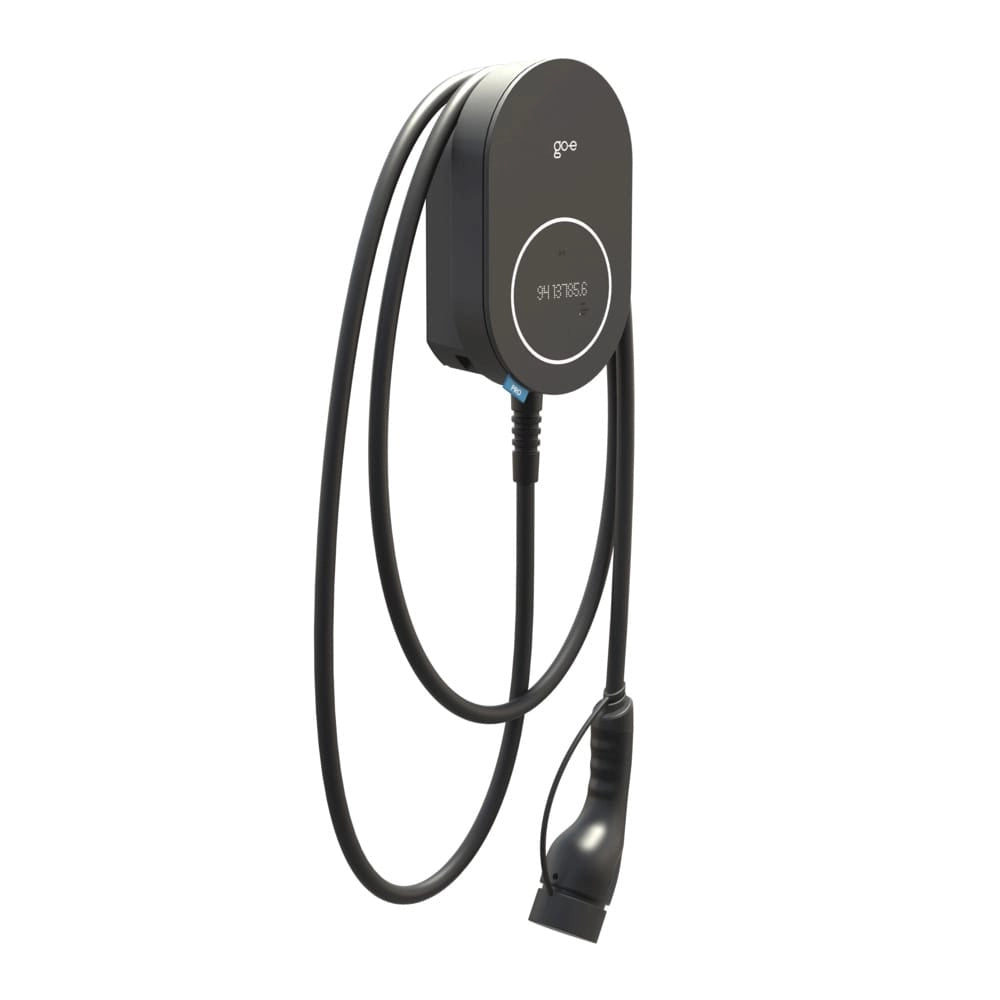

go-e Charger PRO CABLE 11 kW – Your smart wallbox with MID meter
The go-e Charger PRO CABLE 11 kW is a wallbox for businesses, vehicle fleets, company cars, and multi-family dwellings. With its integrated MID-compliant energy meter, the charging current can be recorded with kWh precision and documented for billing purposes.
The charging power is up to 11 kW . It is adjustable between 1.4 kW and 11 kW in 1 A increments.
Advantages at a glance
-
Up to 11 kW charging power (3-phase, 16 A)
-
MID-compliant electricity meter (Class B)
-
6 m Type 2 charging cable permanently attached
-
V2X ready & Plug&Charge ready according to ISO 15118
-
IP66 & IK08 for indoor and outdoor use
-
RFID access control including programmed chip
-
Integrated DC protection module with AC and DC detection
-
Interfaces: WLAN, LAN, Bluetooth (BLE ready), LTE, OCPP 1.6, Modbus TCP, HTTP API, MQTT
Control and energy management
The wallbox can be configured and monitored via the go-e app or the go-e portal – locally or remotely. Supported features include PV surplus charging , integration of variable electricity tariffs, charging timers , and static load management with prioritization.
Dynamic load management can be implemented via the go-e Controller or via OCPP/API.
Assembly and design
With dimensions of 18.6 × 29.7 × 9.9 cm and a weight of approximately 5.1 kg including cables, the wallbox has a compact design. The power supply cable can be inserted from the rear, bottom, or top.
Technical data
- Maximum charging power: 11 kW
- Nominal voltage: 230–240 V (single-phase) / 400–415 V (three-phase)
- Network types: TT / TN / IT
- Charging cable: 6 m, 5 × 6 mm² + 1 × 0.5 mm²
- Operating temperature: -25 °C to +40 °C
- Protection rating: IP66
- Impact resistance: IK08
- Energy meter: MID-compliant, Class B
- Mobile network: LTE with 2G fallback (5 years included)
- Standby power consumption: 3.5 W
- Manufacturer's warranty: 36 months
- Made in Austria
Scope of delivery
- Charging unit with 6 m Type 2 charging cable
- wall mounting unit
- Connector holder for Type 2
- Mounting hardware
- Seals and sealing stickers
- 1 × RFID chip (programmed)
- 1 × Reset card
- Quick Guide
