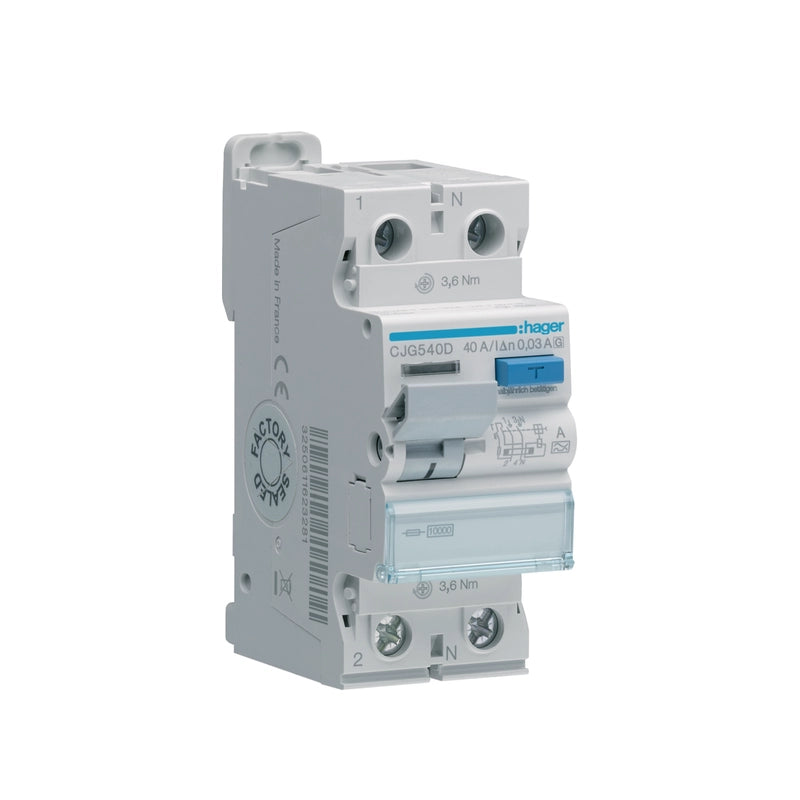

Hager residual current circuit breaker CJG540D – 1P+N, 40 A, 30 mA, type AG

The Hager CJG540D residual current circuit breaker is a 1P+N version for electrical distribution systems.

It is designed with a short-time delay and operates according to EN 61008-1 and EN 61008-2-1.

The RCD meets VDE 0664 parts 10 and 11 as well as the requirements of ÖVE E 8601.

Thanks to the IP2x touch protection, installation is safe, while operation remains straightforward.

Technical product details of the CJG540D

• Device type: Residual current circuit breaker (RCCB) , designed as 1P+N.
• Polarity: 1P+N , so that phase and neutral conductors are switched together.
• Rated current: 40 A , therefore the switch can be protected by a fuse accordingly.
• Rated residual current Idn: 30 mA , therefore reliable residual current protection is provided.
• Type of residual current protection: AG , implemented with short-time delay.
• Insulation voltage Ui: 500 V .
• Number of modules: 2 .

Connection and design

• Terminal blocks with wire insertion protection , which ensures secure wiring.
• Bi-Connect terminals on the underside allow for different connection types.
• Easy removal from the busbar assembly, as the device is designed for this purpose.

Equipment and labeling

• External blue test button , allowing for a semi-annual functional test.
• Residual current indicator , which ensures that the device status remains visible at all times.
• ÖVE and VDE marks are attached directly to the device.
• Labeling option directly on the device, so that circuits can be clearly identified.

Conclusion on the CJG540D

The Hager CJG540D residual current circuit breaker offers clear technical features and is suitable for distribution boards with residual current protection.

Manufacturer part number : CJG540D
Article number : VER0091
