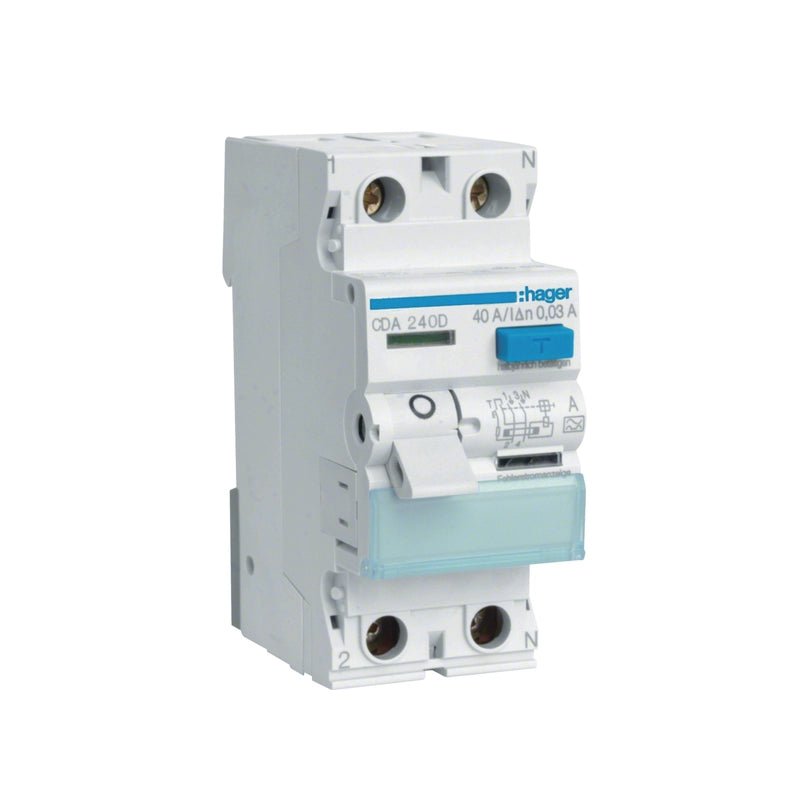

Hager residual current circuit breaker CDA240D – 2-pole, 40 A, 30 mA, type A, 6 kA

The Hager CDA240D residual current circuit breaker is a 2-pole residual current device for electrical distribution systems.

It complies with EN 61008-1 and EN 61008-2-1 as well as VDE 0664 parts 10 and 11.

Thanks to the IP2x touch protection, installation is safe, while handling remains straightforward.

The residual current device (RCD) is suitable for additional equipment, as it can be installed without tools.

Technical product details

• Device type: Residual current circuit breaker (RCCB) , 2-pole design.
• Polarity: 1P+N , so that phase and neutral conductors are switched together.
• Rated current: 40 A , therefore it is intended for use in suitable circuits.
• Rated residual current Idn: 30 mA , therefore designed for reliable residual current protection.
• Type of residual current protection: Type A.
• Short-circuit withstand capability: 6 kA .
• Insulation voltage Ui: 500 V .
• Number of modules: 2 .

Connection and design

• Terminal blocks with wire insertion protection , which ensures secure wiring.
• Bi-Connect terminals on the underside allow for different connection types.
• Connection cross-section for flexible conductors with screws: 1–16 mm² .
• Easy removal from the busbar assembly, as the device is designed for this purpose.

Equipment and labeling

• External blue test button , allowing for a semi-annual functional test.
• Residual current indicator , which ensures that the device status remains visible at all times.
• ÖVE and VDE marks are attached directly to the device.
• Labeling option directly on the device, so that circuits can be clearly identified.

Conclusion

The Hager CDA240D residual current circuit breaker offers clear technical features and is suitable for distribution boards with residual current protection.

Manufacturer part number : CDA240D
Article number : VER0092
