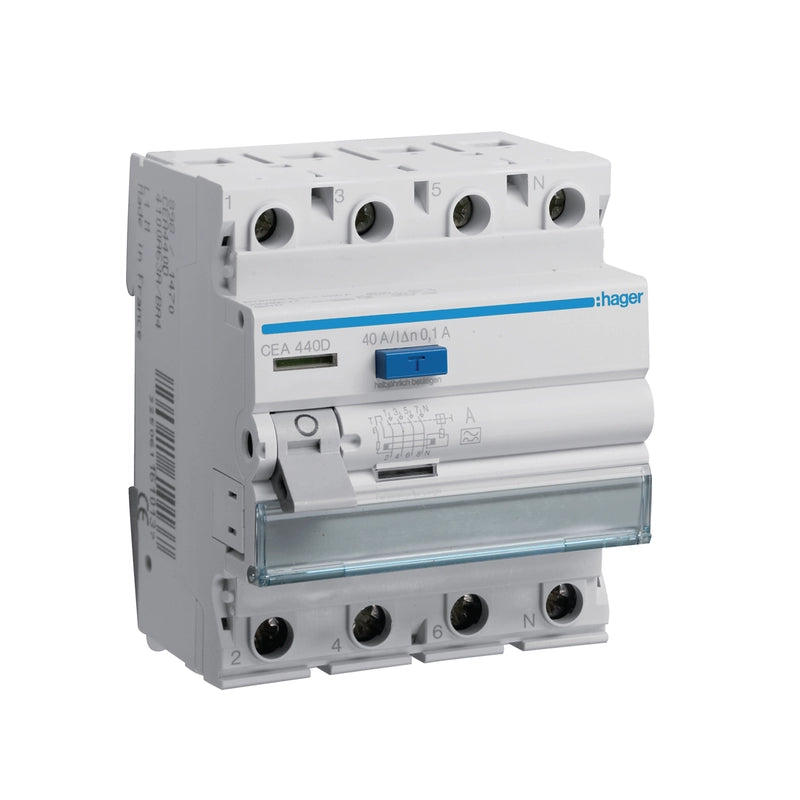

Hager residual current circuit breaker 4-pole 6kA 40A 100mA type A - CEA440D

The Hager CEA440D residual current circuit breaker (RCCB) is a reliable and robust device for three-phase installations. It offers optimal protection for electrical systems with increased safety requirements.

Thanks to its 100 mA tripping threshold, it is suitable for enhanced protection and preventative fire protection. It is particularly suitable for residential and commercial applications with an increased fire risk.

Technical details:

• Manufacturer : Hager
• Model : CEA440D
• Product type : Residual current circuit breaker (RCCB)
• Number of poles : 4-pole – protects three-phase circuits, including neutral conductor
• Rated current (In) : 40 A – suitable for high current applications
• Fault current (IΔn) : 100 mA – medium sensitivity for additional protection, especially for fire protection applications
• Protection type : Type A – detects alternating currents as well as pulsating DC fault currents of modern devices
• Short-circuit withstand capability : 6 kA – offers high resistance and is suitable for more demanding installations.
• Power supply : 400 V AC – designed for three-phase AC networks
• Mounting type : DIN rail – enables easy and quick installation
• Operating temperature range : -25°C to +40°C – ensures reliable operation under various conditions
• Protection class : IP20 – protects against contact and is suitable for dry indoor areas

Special features:

• Enhanced fire protection through 100 mA sensitivity: The residual current circuit breaker (RCCB) offers personal protection and additional fire protection.

  This makes it particularly suitable for areas with an increased risk of fire.

  Furthermore, it is ideal for commercial and industrial installations.

• Type A detection: The circuit breaker detects alternating and pulsating direct fault currents from modern electronic devices.

  This ensures a high level of security.

  This is a clear advantage, especially for frequency-controlled systems.

• High short-circuit strength: The Hager CEA440D is short-circuit resistant up to 6 kA.

  This means the system remains reliably protected even in the event of high short-circuit currents.

• Durable and user-friendly: The robust construction ensures a long service life.

  At the same time, clear markings facilitate installation and maintenance.

Scope:

The Hager CEA440D residual current circuit breaker is suitable for private, commercial and industrial electrical installations.

It offers reliable safety, especially where additional fire protection is required. For example, it minimizes the risk of electrical fires in workshops, warehouses, or public buildings.

With the Hager CEA440D, you are choosing a high-quality protective device. It meets high standards and ensures the long-term safety of your electrical installation.

Manufacturer part number : CEA440D
Article number : VER0098
