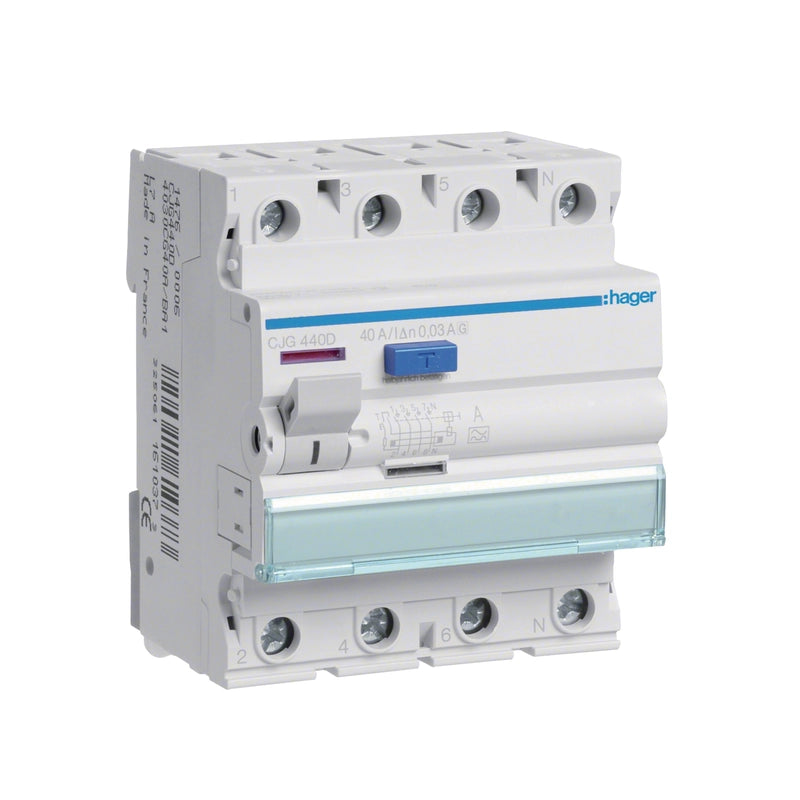

Hager residual current circuit breaker CJG440D – 4-pole, 40 A, 30 mA, type G/A, 6 kA

The Hager CJG440D residual current circuit breaker is a 4-pole residual current device for electrical distribution systems.

It is designed with a short-time delay and complies with the standards EN 61008-1 and EN 61008-2-1.

The RCD meets VDE 0664 parts 10 and 11 and is short-time delayed according to ÖVE E 8601.

Thanks to the IP2x touch protection, safe installation is possible, while operation remains straightforward.

Technical product details

• Device type: Residual current circuit breaker (RCCB) , 4-pole design.
• Polarity: 3P+N , so that all active conductors are switched together.
• Rated current: 40 A , and the switch can also be protected by a rated current fuse.
• Rated residual current Idn: 30 mA , therefore reliable residual current protection is provided.
• Type of residual current protection: AG , implemented with short-time delay.
• Short-circuit withstand capability: 6 kA .
• Insulation voltage Ui: 500 V .
• Number of modules: 4 .

Connection and design

• Terminal blocks with wire insertion protection , which ensures secure wiring.
• Bi-Connect terminals on the underside allow for different connection types.
• Connection cross-section for flexible conductors with screws: 1–16 mm² .
• Easy removal from the busbar assembly, as the device is designed for this purpose.

Equipment and labeling

• External blue test button , allowing for a semi-annual functional test.
• Residual current indicator , which keeps the device status visible.
• ÖVE and VDE marks are attached directly to the device.
• Labeling option directly on the device, so that circuits can be clearly identified.

Conclusion

The Hager CJG440D residual current circuit breaker offers clearly defined features and is suitable for distribution boards with residual current protection.

Manufacturer part number : CJG440D
Article number : VER0093
