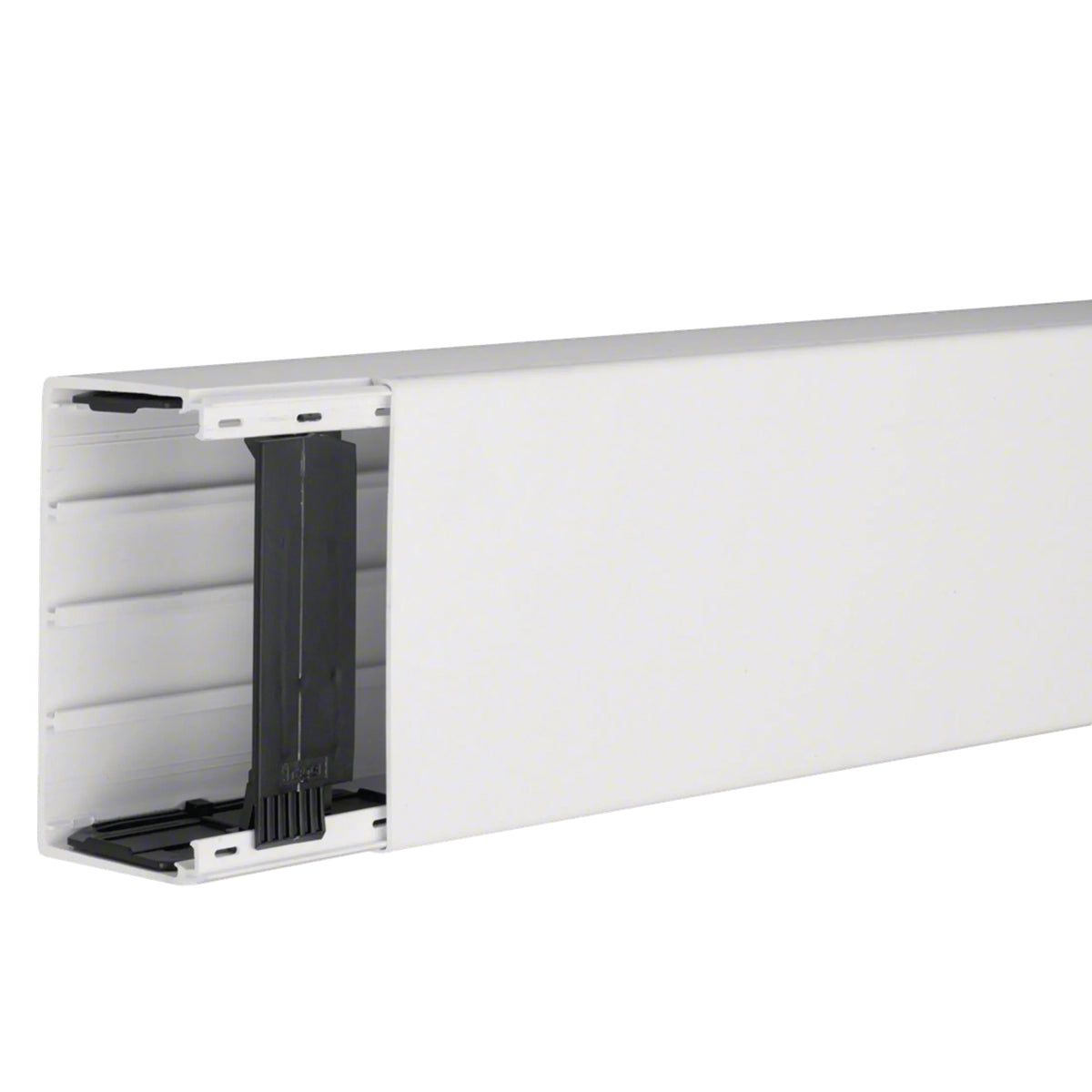

Hager cable management channel 60×110 mm LF6011009016 – PVC cable channel in traffic white
The Hager cable management channel LF6011009016 from the Tehalit LF series is a high-quality
Cable duct made of robust PVC for the safe and clean installation of electrical cables.
With its dimensions of 60 × 110 mm and a length of 2 meters
It offers an excellent balance between spaciousness and compact design.
The color traffic white (RAL 9016) provides a modern and unobtrusive look, ideal for office, residential and commercial spaces.
Technical data
-
Article number: LF6011009016
-
Series: Hager Tehalit LF
-
Dimensions (H × W × L): 60 × 110 × 2000 mm
-
Material: PVC (polyvinyl chloride), halogen-free
-
Color: Traffic white, RAL 9016
-
Internal cross-section: approx. 5,460 mm²
-
Protection class: IP30
-
Impact resistance: IK07
-
Temperature range: -5 °C to +60 °C
-
Mounting: Pre-drilled base holes in a 125 mm grid
-
Assembly: Two-part system with base and cover, snap-in system with pre-assembled couplings
-
Partitions: Up to 3 pluggable partitions possible
-
Cable capacity (Ø 11 mm): approx. 23 wires at 50% filling
Product description
The Hager LF6011009016 cable management channel impresses with its robust design and easy installation.
and high flexibility in application.
The two-part design with snap-in system allows for quick installation and a secure hold of the lid.
Thanks to the pre-assembled couplings, channel sections can be connected precisely and with a perfect fit.
The optional use of partitions allows for the separation of different types of cables – such as power and data cables –
They should be laid out clearly and separately.
Manufacturer part number : LF6011009016
Article number : LEF0387
