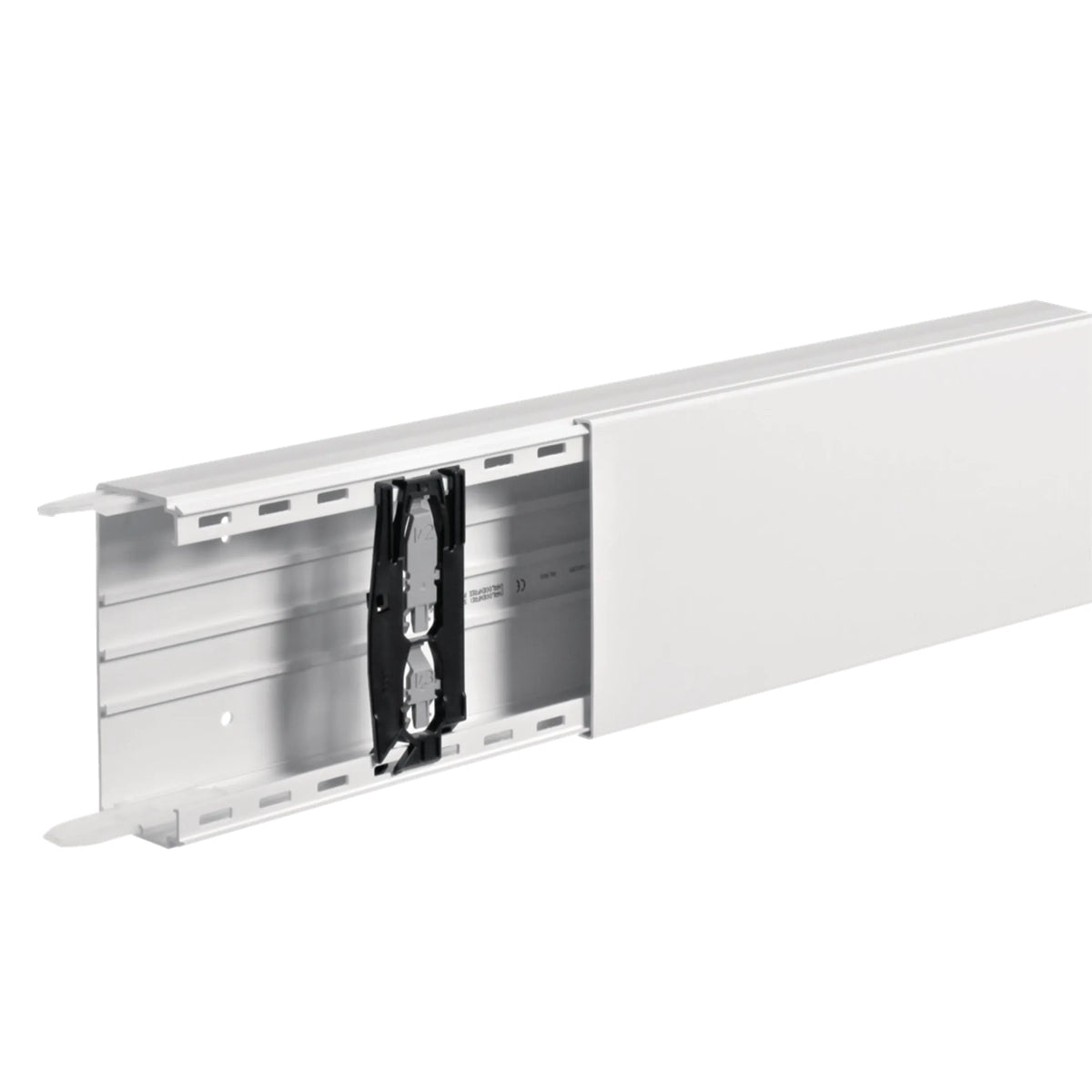

Hager cable management channel 60×150 mm LF6015009016 – PVC cable channel in traffic white
The Hager cable management channel LF6015009016 from the proven Tehalit LF series
is a high-quality PVC cable duct for safe, clean and professional cable routing.
With its dimensions of 60 × 150 mm and a length of 2 meters
It offers ample space for the structured routing of electrical cables in residential, office and industrial environments.
The elegant design in traffic white (RAL 9016) ensures a modern and unobtrusive appearance.
Technical data
-
Article number: LF6015009016
-
Series: Hager Tehalit LF
-
Dimensions (H × W × L): 60 × 150 × 2000 mm
-
Material: PVC (polyvinyl chloride), halogen-free
-
Color: Traffic white, RAL 9016
-
Internal cross-section: approx. 7,400 mm²
-
Protection class: IP30
-
Impact resistance: IK07
-
Temperature range: -5 °C to +60 °C
-
Mounting: Pre-drilled base holes in a 125 mm grid
-
Assembly: Two-part snap-in system (base + cover) with pre-assembled couplings
-
Partitions: Up to 3 pluggable partitions possible
-
Cable capacity (Ø 11 mm): approx. 30 wires at 50% filling
Product description
The Hager LF6015009016 cable management channel impresses with its high stability, easy installation and a well-thought-out design.
Thanks to the two-part design with a locking mechanism, the lid can be opened without tools and securely closed again.
The pre-assembled couplings ensure precise and tight transitions between the channel sections.
The option of using partition walls allows power and data lines to be neatly separated.
Manufacturer part number : LF6015009016
Article number : LEF0388
