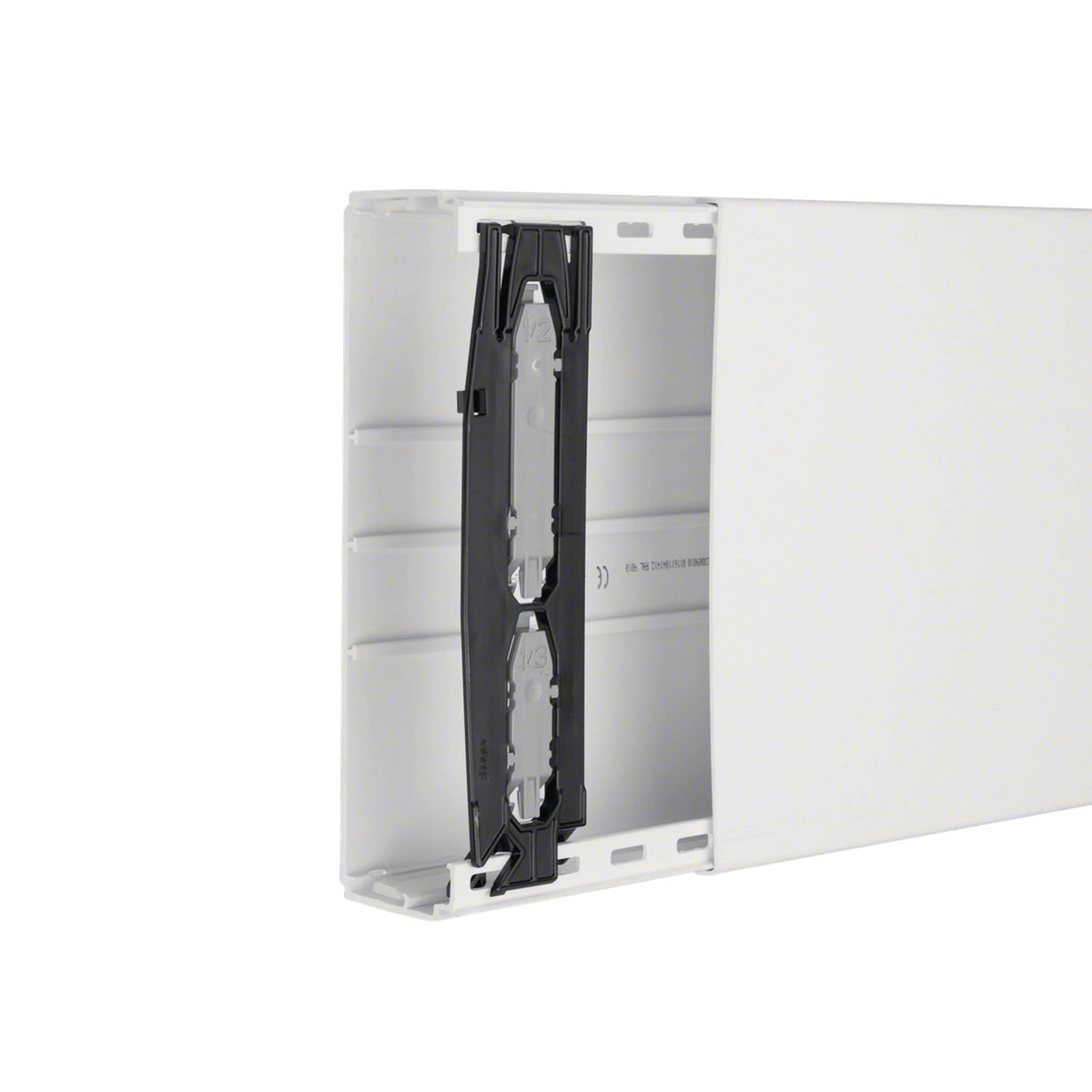

Hager cable management trunking 60×230 mm LF6023009016 – PVC cable trunking in traffic white
The Hager cable management channel LF6023009016 is a robust and high-quality product.
PVC cable duct for safe and orderly cable routing.
With its generous dimensions of 60 × 230 mm and a length of 2 meters
It is ideally suited for extensive electrical installations where many cables need to be bundled together.
The traffic white (RAL 9016) finish ensures a subtle, clean look in modern rooms.
Technical data
-
Article number: LF6023009016
-
Series: Hager Tehalit LF
-
Dimensions (H × W × L): 60 × 230 × 2000 mm
-
Material: PVC (polyvinyl chloride), halogen-free
-
Color: Traffic white, RAL 9016
-
Internal cross-section: approx. 11,400 mm²
-
Protection class: IP30
-
Impact resistance: IK07
-
Temperature range: -5 °C to +60 °C
-
Mounting: Pre-drilled base holes in a 125 mm grid
-
Assembly: Snap-in system with pre-assembled couplings
-
Partitions: Up to 3 pluggable partitions possible
-
Cable capacity (Ø 11 mm): approx. 48 wires at 50% filling
Product description
The Hager cable management channel LF6023009016 was designed for large cable volumes.
and offers maximum stability with easy handling.
The two-part system, consisting of a lower and upper part, allows for quick assembly and facilitates subsequent maintenance work.
The integrated coupling ensures precise channel connections, while the locking system guarantees a secure hold.
The option of using partition walls allows different power or data lines to be routed clearly and separately.
Manufacturer part number : LF6023009016
Article number : LEF0389
