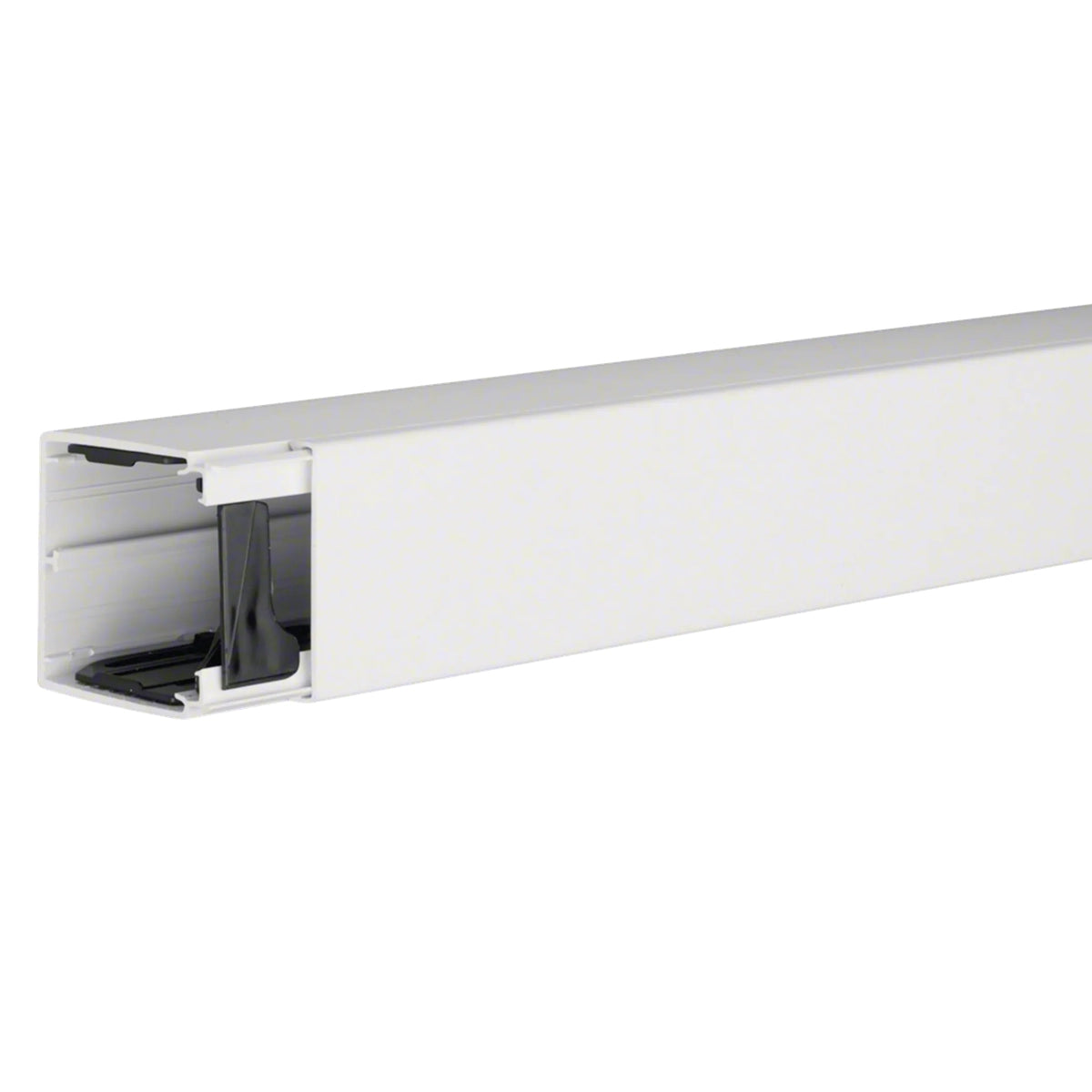

Hager cable management channel 60×60 mm LF6006009016 – Traffic white, 2 m
The Hager cable management channel LF6006009016 is a compact PVC channel from the Tehalit LF series .
Developed for safe and clean cable routing in modern electrical installations.
With dimensions of 60 × 60 × 2000 mm, it offers a space-saving solution for smaller installation volumes.
in residential, office or commercial buildings.
The surface in traffic white (RAL 9016) ensures a subtle, professional appearance.
Technical data
-
Article number: LF6006009016
-
Dimensions (H × W × L): 60 × 60 × 2000 mm
-
Material: PVC (polyvinyl chloride)
-
Color: Traffic white, RAL 9016
-
Usable cross-section: approx. 2,600 mm²
-
Protection class: IP30
-
Impact resistance: IK07
-
Operating temperature range: -5 °C to +60 °C
-
Cable capacity (Ø 11 mm, 50% filling): approx. 10 wires
-
Partitions: none permanently integrated, optional plug-in partition possible
-
Connection: pre-assembled couplings for precise channel connections
-
Scope of delivery: includes cable retaining clip
Description
The Hager LF6006009016 is ideal for installations where compact dimensions and reliable stability are required.
The two-part design, consisting of a base and a lid, allows for easy assembly and quick access to the cables.
Pre-assembled couplings facilitate the precise connection of multiple channel sections, while the impact-resistant construction
ensures lasting security.
The bright, smooth surface in traffic white blends seamlessly into any environment and is easy to clean.
Manufacturer part number : LF6006009016
Article number : LEF0385
