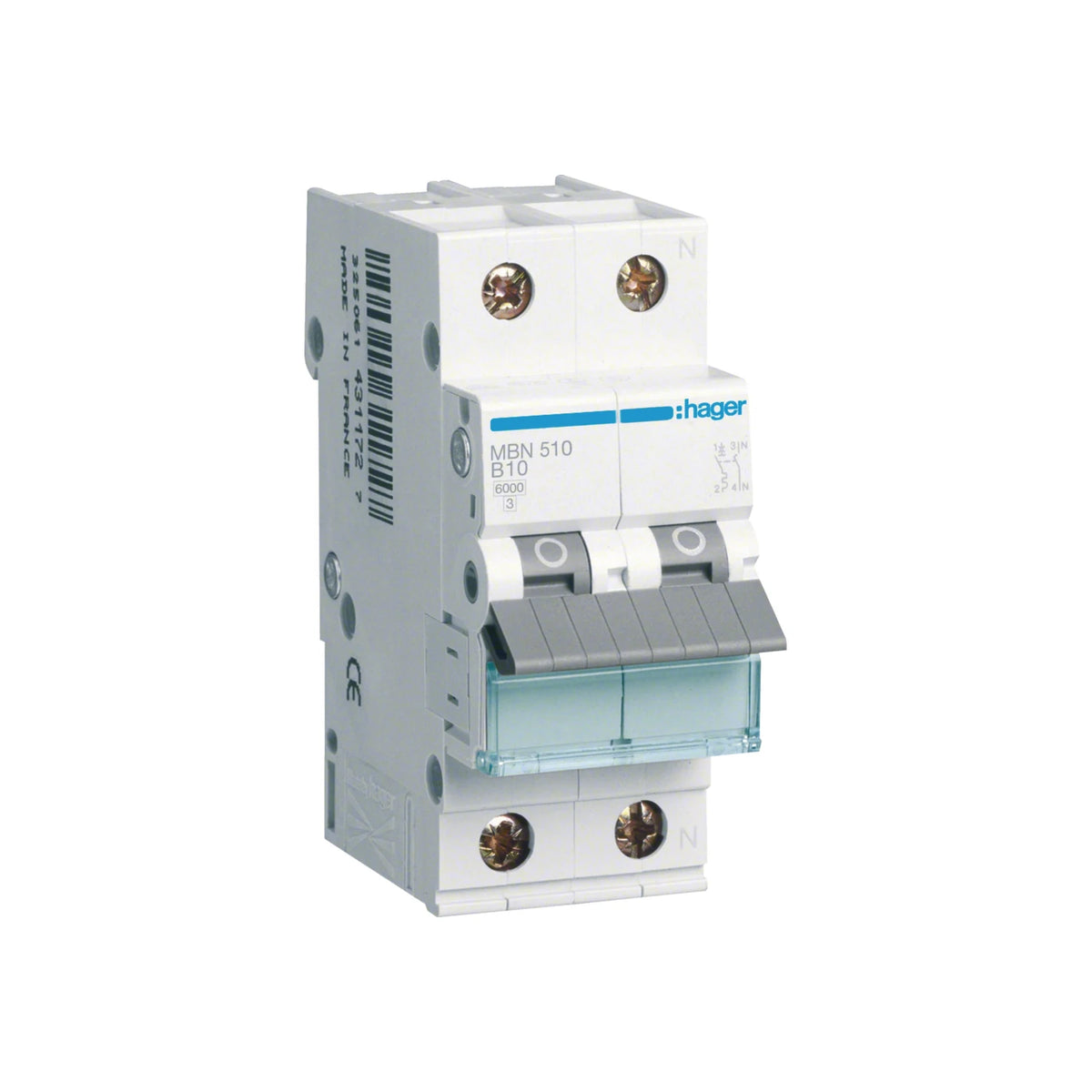

Hager miniature circuit breaker, characteristic curve B, 1+N, 10A - MBN510

The Hager MBN510 miniature circuit breaker is a reliable 1+N circuit breaker specifically designed for protecting electrical installations. With a rated current of 10 A and a tripping characteristic of curve B, this circuit breaker is ideal for residential and commercial installations where precise and effective protection against overload and short circuit is required.

Technical details:

• Manufacturer : Hager

• Model : MBN510

• Product type : Miniature circuit breaker (MCB)

• Number of poles : 1+N – protects one live conductor and the neutral conductor

• Rated current (In) : 10 A – suitable for applications with low to medium current requirements

• Switching capacity : 6 kA – high short-circuit withstand capability for additional protection

• Tripping characteristic : Characteristic curve B – trips at 3–5 times the rated current, ideal for lighting and socket circuits

• Power supply : 230/400 V AC – compatible with common AC power grids

• Mounting type : DIN rail – enables simple and space-saving installation in the distribution box

• Operating temperature range : -25°C to +70°C – ensures reliable operation under various environmental conditions

• Protection class : IP20 – protects against contact and foreign objects, suitable for dry indoor areas


Special features:

• Tripping characteristic B for diverse applications : The B characteristic of the MBN510 makes it particularly suitable for use in applications with lighting, sockets, and household appliances. The switch reliably trips at 3–5 times the rated current, making it ideal for protecting circuits with electronic and inductive loads.

• 6 kA breaking capacity for high safety : With a breaking capacity of 6 kA, the MBN510 offers robust protection against short circuits. This high short-circuit withstand capability is crucial to prevent damage to electrical equipment and cables and to ensure safety in electrical installations.

• Compact design and easy installation : The circuit breaker is designed for DIN rail mounting, allowing for simple and space-saving installation in the distribution box. The ergonomically designed switch lever and clear labeling ensure user-friendly operation and maintenance.


Scope:

The Hager MBN510 miniature circuit breaker is ideally suited for protecting lighting and socket circuits in residential and commercial buildings. It is perfect for installations where reliable and precise protection against overload and short circuit is required.

With the Hager MBN510, you are choosing a powerful and durable protective device that meets the requirements of modern electrical installations and fulfills the highest safety standards. It reliably protects your electrical systems and ensures the safe operation of your equipment.

Manufacturer part number : MBN510
Article number : VER0137
