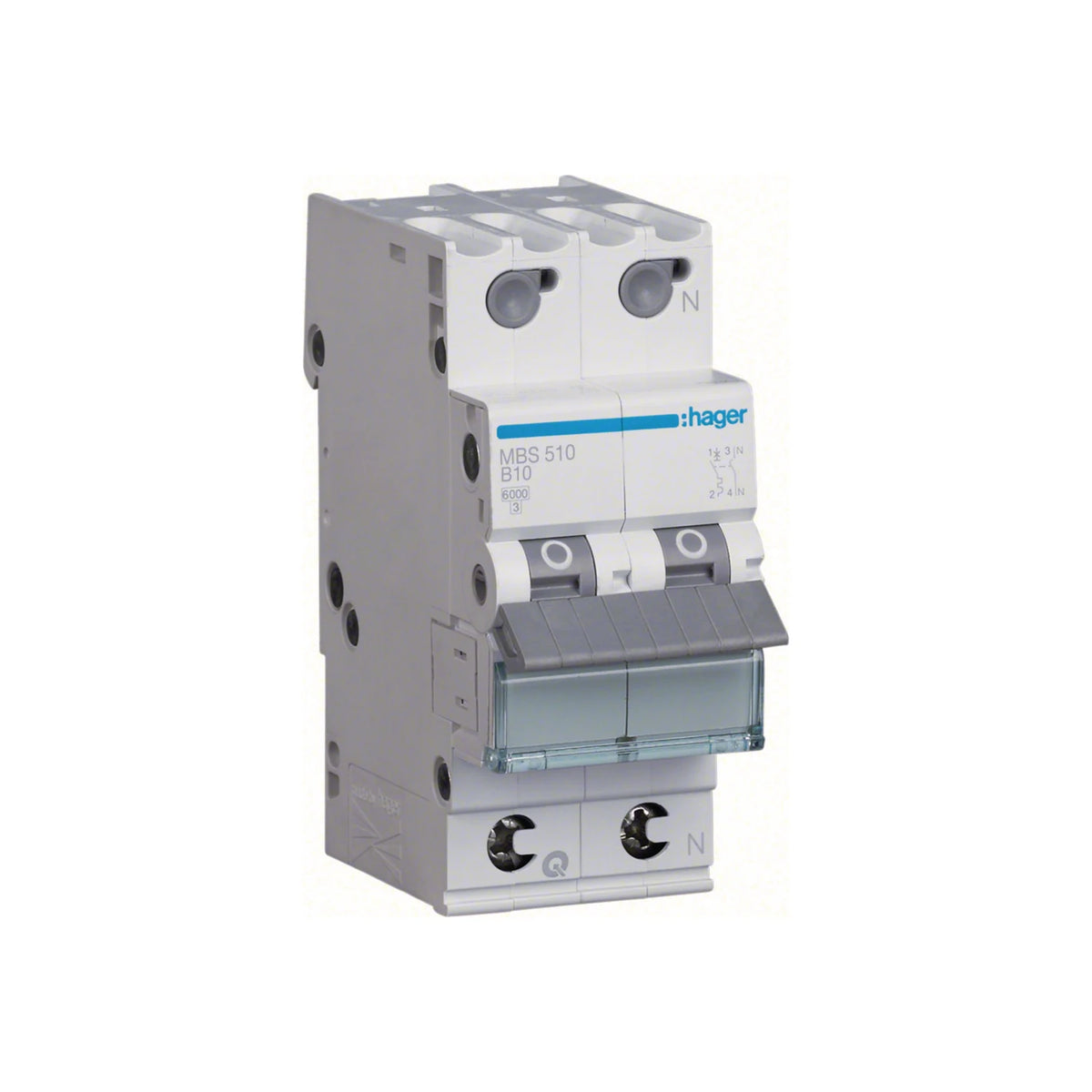

Hager miniature circuit breaker, characteristic curve B, 1+N, 10A, QC - MBS510

Hager miniature circuit breaker MBS510 – characteristic curve B, 1+N, 10A, QC

The Hager MBS510 miniature circuit breaker is a high-quality solution for the reliable protection of electrical installations. With a rated current of 10 A and a tripping characteristic of curve B, this 1+N circuit breaker offers effective protection for lighting and socket circuits in residential and commercial applications. The integrated Quick Connect (QC) function also ensures quick and easy installation.

Technical details:

• Manufacturer : Hager

• Model : MBS510

• Product type : Miniature circuit breaker (MCB)

• Number of poles : 1+N – protects one live conductor and the neutral conductor

• Rated current (In) : 10 A – ideal for applications with low to medium current requirements

• Switching capacity : 6 kA – ensures high short-circuit withstand capability for added safety

• Tripping characteristic : Characteristic curve B – trips at 3–5 times the rated current, ideal for lighting and socket circuits

• Power supply : 230/400 V AC – compatible with common AC power grids

• Mounting type : DIN rail – enables simple and space-saving installation in the distribution box

• Operating temperature range : -25°C to +70°C – ensures reliable operation under various environmental conditions

• Protection class : IP20 – protects against contact and foreign objects, suitable for dry indoor areas

• Quick Connect (QC) function : for quick and easy wiring


Advantages of the Hager MBS510:

1. Effective protection : The MBS510 offers reliable protection against overloads and short circuits. Its B-curve tripping characteristic is particularly suitable for household appliances, lights, and other electrical loads that draw higher currents briefly when switched on.

2. High short-circuit withstand capability : With a breaking capacity of 6 kA, this circuit breaker ensures a safe and stable electrical installation, offering high protection even in the event of short-term overloads.

3. Easy installation : The DIN rail mounting and the Quick Connect function enable a quick and user-friendly installation that can also be easily carried out by less experienced technicians.

4. Versatile applications : The Hager MBS510 is ideally suited for residential and commercial buildings. It can be used in various applications, from lighting circuits to sockets, and ensures a high level of safety everywhere.


Conclusion:

The Hager MBS510 miniature circuit breaker is the perfect choice for anyone looking for a reliable and safe solution to protect their electrical installations. With its technical features and practical Quick Connect function, it meets all the requirements of modern electrical installations and ensures easy handling. Choose the Hager MBS510 and effectively protect your electrical systems!

Manufacturer part number : MBS510
Article number : VER0138
