Hager miniature circuit breaker, characteristic curve B, 1+N, 13A - MBN513

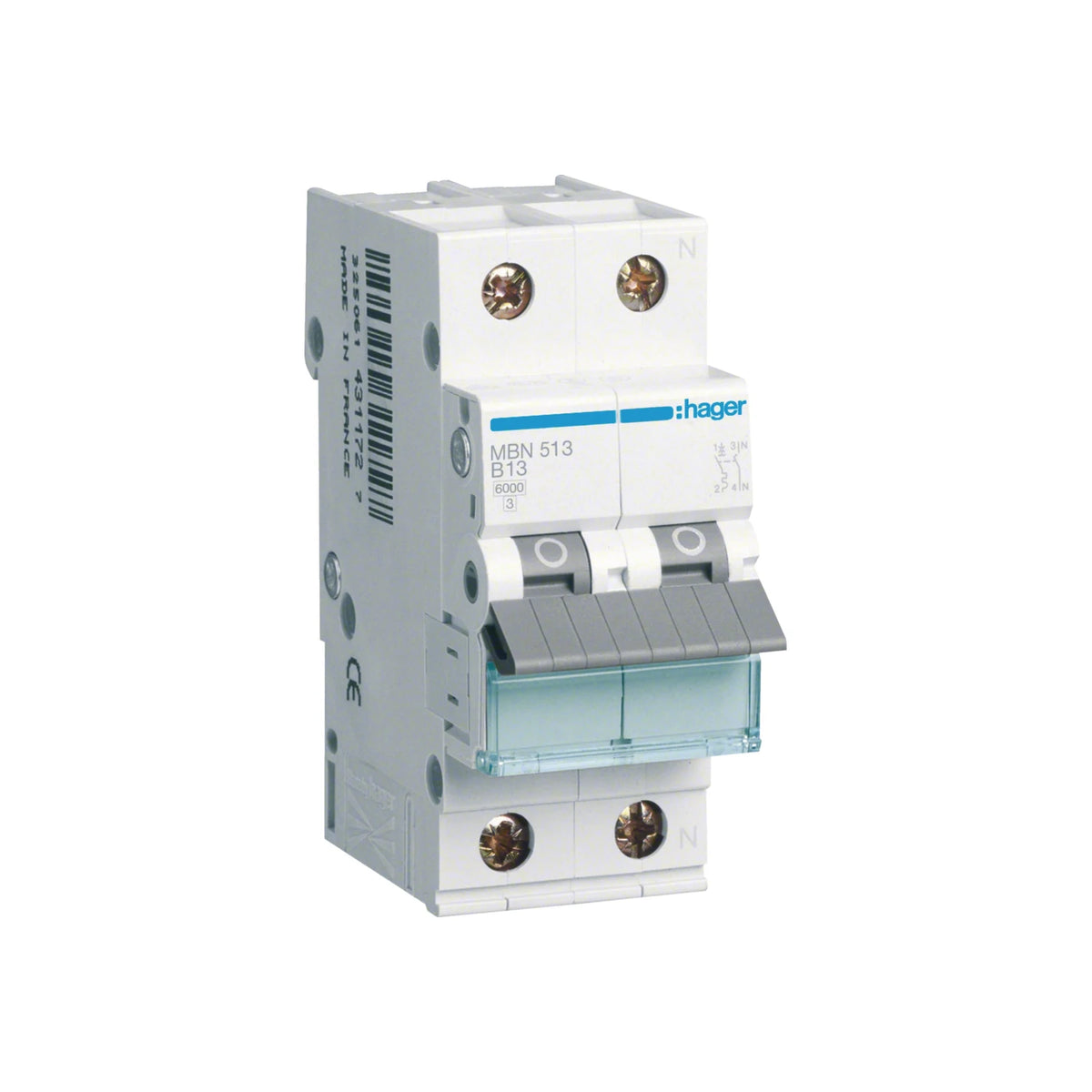

Hager MBN513 miniature circuit breaker – characteristic curve B, 1+N, 13A

The Hager MBN513 miniature circuit breaker is a first-class solution for the reliable protection of your electrical installations. With a rated current of 13 A and a tripping characteristic of curve B, this 1+N circuit breaker is particularly suitable for residential and commercial applications. It offers effective protection against overloads and short circuits, thus ensuring the safety of your electrical systems.

Technical details:

• Manufacturer : Hager

• Model : MBN513

• Product type : Miniature circuit breaker (MCB)

• Number of poles : 1+N – protects one live conductor and the neutral conductor

• Rated current (In) : 13 A – ideal for applications with medium current requirements

• Breaking capacity : 6 kA – high short-circuit withstand capability for maximum protection

• Tripping characteristic : Characteristic curve B – trips at 3–5 times the rated current, ideal for lighting and socket circuits

• Power supply : 230/400 V AC – suitable for standard AC power grids

• Mounting type : DIN rail – enables simple and space-saving installation in the distribution box

• Operating temperature range : -25°C to +70°C – ensures reliable operation under various environmental conditions

• Protection class : IP20 – protects against contact and foreign objects, suitable for dry indoor areas


Advantages of the Hager MBN513:

1. Reliable protection : The MBN513 ensures that your electrical installations are optimally protected against overloads and short circuits. The B-type tripping characteristic is particularly suitable for applications involving devices such as lamps and household appliances.

2. High short-circuit withstand capability : With a breaking capacity of 6 kA, this circuit breaker offers robust protection against short circuits, which is crucial for the safety of your electrical equipment and installations.

3. Easy installation : The Hager MBN513 can be easily mounted on a DIN rail, making installation quick and efficient. Clear labeling and an ergonomically designed switch lever make it easy to use.

4. Versatile applications : The MBN513 is suitable for a wide range of applications in residential and commercial buildings, including lighting and electrical circuits. It ensures a high level of safety and reliability wherever it is used.


Conclusion:

The Hager MBN513 miniature circuit breaker is the ideal choice for anyone who values ​​safe and reliable protection for their electrical installations. Its technical features meet the requirements of modern electrical installations and ensure user-friendly operation. Choose the Hager MBN513 and protect your electrical systems effectively!

Manufacturer part number : MBN513
Article number : VER0139
