Hager miniature circuit breaker, characteristic curve B, 1+N, 13A, QC - MBS513

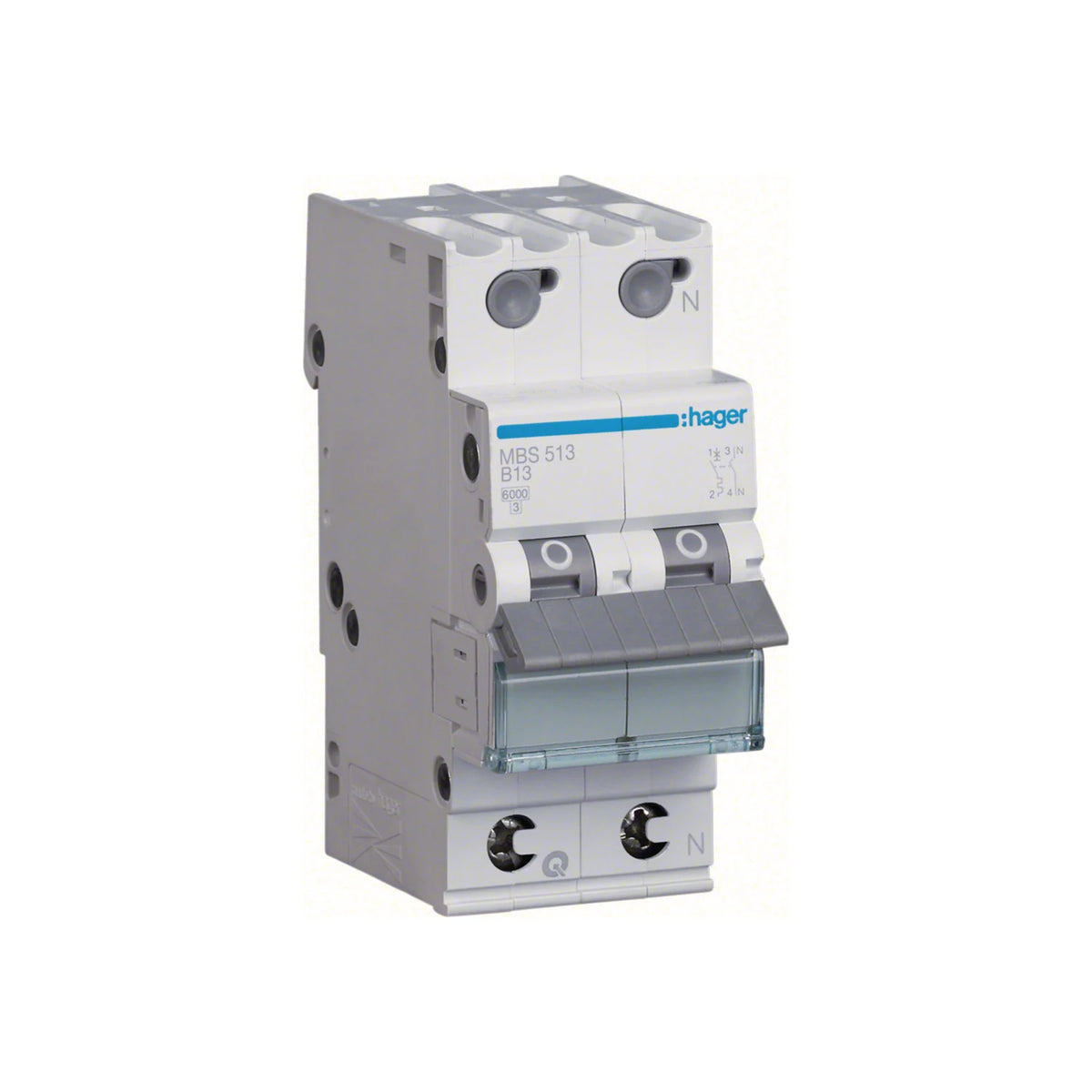

Hager miniature circuit breaker MBS513 – characteristic curve B, 1+N, 13A, QC

The Hager MBS513 miniature circuit breaker is a first-class choice for the reliable protection of your electrical installations. With a rated current of 13 A and a tripping characteristic of curve B, this 1+N circuit breaker offers an effective solution for protecting lighting and socket circuits in residential and commercial applications. The integrated Quick Connect (QC) function enables particularly easy and quick installation, making it an ideal choice for electricians.

Technical details:

• Manufacturer : Hager

• Model : MBS513

• Product type : Miniature circuit breaker (MCB)

• Number of poles : 1+N – protects one live conductor and the neutral conductor

• Rated current (In) : 13 A – ideal for applications with medium current requirements

• Breaking capacity : 6 kA – high short-circuit withstand capability for maximum protection

• Tripping characteristic : Characteristic curve B – trips at 3–5 times the rated current, ideal for lighting and socket circuits

• Power supply : 230/400 V AC – compatible with common AC power grids

• Mounting type : DIN rail – enables simple and space-saving installation in the distribution box

• Operating temperature range : -25°C to +70°C – ensures reliable operation under varying environmental conditions

• Protection class : IP20 – protects against contact and foreign objects, suitable for dry indoor areas

• Quick Connect (QC) function : enables quick and easy wiring.


Advantages of the Hager MBS513:

1. Reliable protection : The MBS513 ensures optimal protection against overloads and short circuits. With its B-curve characteristic, it is particularly suitable for applications involving devices such as lights and household appliances that can draw higher currents briefly when switched on.

2. High short-circuit withstand capability : With a breaking capacity of 6 kA, this circuit breaker offers robust protection against short circuits. This protects your electrical equipment and installations from potential damage caused by high currents.

3. Easy installation with QC function : The Hager MBS513 is specifically designed for mounting on DIN rails and features a Quick Connect function that enables fast and easy wiring. This user-friendly function saves time and increases installation efficiency.

4. Versatile applications : The MBS513 is ideally suited for a wide range of applications in residential and commercial buildings, including lighting and electrical circuits. It ensures a high level of safety and reliability wherever it is used.


Conclusion:

The Hager MBS513 miniature circuit breaker is the ideal choice for anyone seeking a safe and reliable solution for protecting their electrical installations. With its first-class technical features and practical Quick Connect function, it meets the requirements of modern electrical installations and ensures ease of use. Protect your electrical systems effectively with the Hager MBS513!

Manufacturer part number : MBS513
Article number : VER0140
