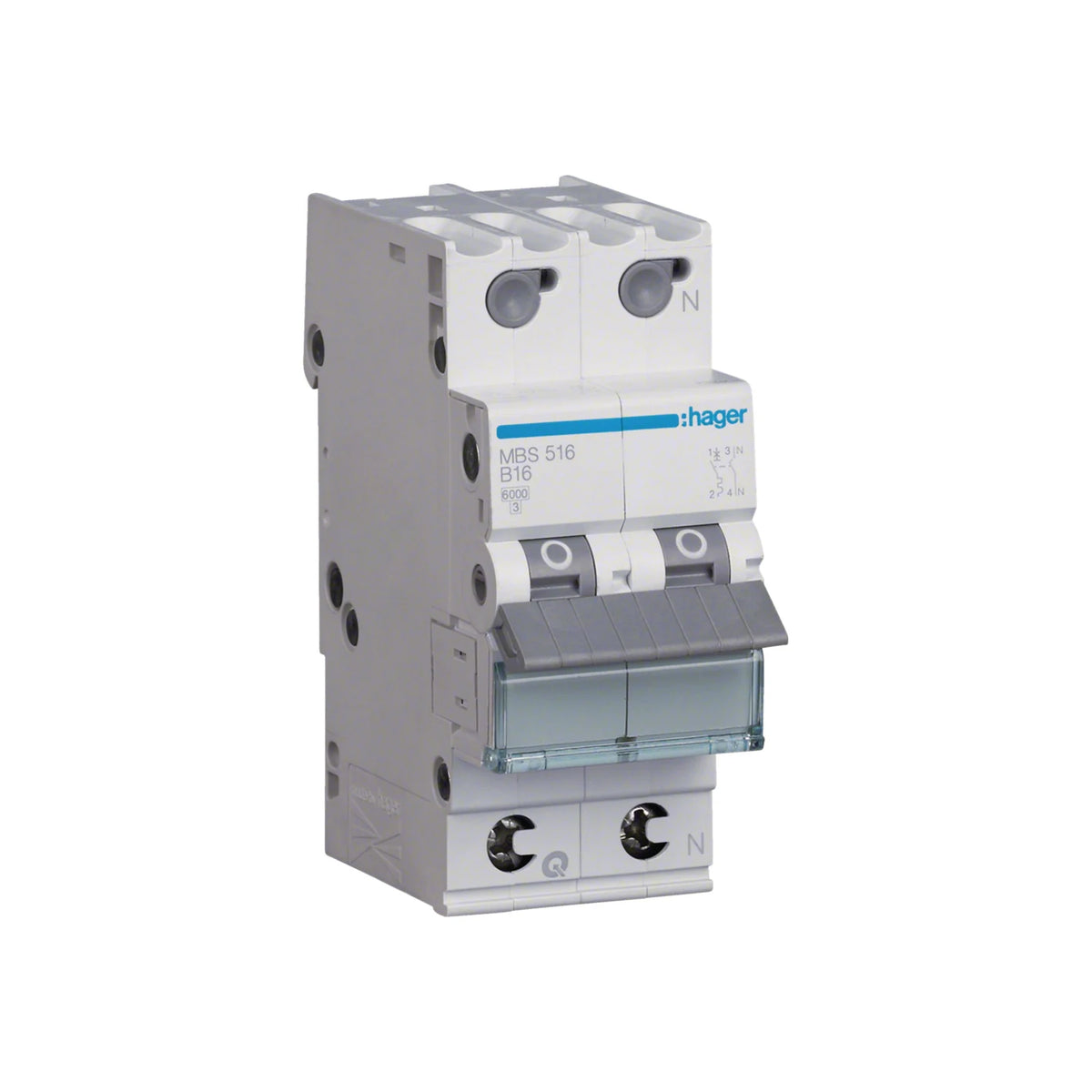

Hager miniature circuit breaker, characteristic curve B, 1+N, 16A, QC - MBS516

Hager miniature circuit breaker MBS516 – characteristic curve B, 1+N, 16A, QC

The Hager MBS516 miniature circuit breaker is a high-quality and reliable solution for protecting your electrical installations. With a rated current of 16 A and a tripping characteristic of curve B, this 1+N circuit breaker offers effective protection against overloads and short circuits. The integrated Quick Connect (QC) function enables particularly easy and quick installation, making it the ideal choice for electricians and professionals.

Technical details:

• Manufacturer : Hager

• Model : MBS516

• Product type : Miniature circuit breaker (MCB)

• Number of poles : 1+N – protects one live conductor and the neutral conductor

• Rated current (In) : 16 A – ideal for medium to high current loads in residential and commercial applications

• Switching capacity : 6 kA – ensures high short-circuit withstand capability and maximum protection

• Tripping characteristic : Characteristic curve B – trips at 3–5 times the rated current, ideal for lighting and socket circuits

• Power supply : 230/400 V AC – suitable for standard AC power grids

• Mounting type : DIN rail – enables simple and space-saving installation in the distribution box

• Operating temperature range : -25°C to +70°C – ensures reliable operation under varying environmental conditions

• Protection class : IP20 – protects against contact and foreign objects, suitable for dry indoor areas

• Quick Connect (QC) function : enables time-saving and user-friendly wiring.


Advantages of the Hager MBS516:

1. Reliable protection : The MBS516 offers comprehensive protection for your electrical installations. The B-type tripping characteristic is particularly suitable for applications involving devices such as lights and household appliances that can draw higher currents briefly when switched on.

2. High short-circuit withstand capability : With a breaking capacity of 6 kA, this circuit breaker offers robust protection against short circuits. This significantly reduces the risk of damage to your electrical equipment and installations.

3. Easy installation with QC function : The Hager MBS516 is designed for mounting on DIN rails and features a practical Quick Connect function. This enables quick and easy wiring, which significantly speeds up and simplifies the installation process.

4. Versatile applications : The MBS516 is ideally suited for a wide range of applications in residential and commercial buildings. Whether for lighting circuits or sockets, this circuit breaker ensures a high level of safety and reliability everywhere.


Conclusion:

The Hager MBS516 miniature circuit breaker is the ideal choice for anyone seeking a safe and reliable solution for protecting their electrical installations. With its first-class technical features and practical Quick Connect function, it meets the requirements of modern electrical installations and ensures user-friendly operation. Trust the Hager MBS516 and protect your electrical systems effectively!

Manufacturer part number : MBS516
Article number : VER0142
