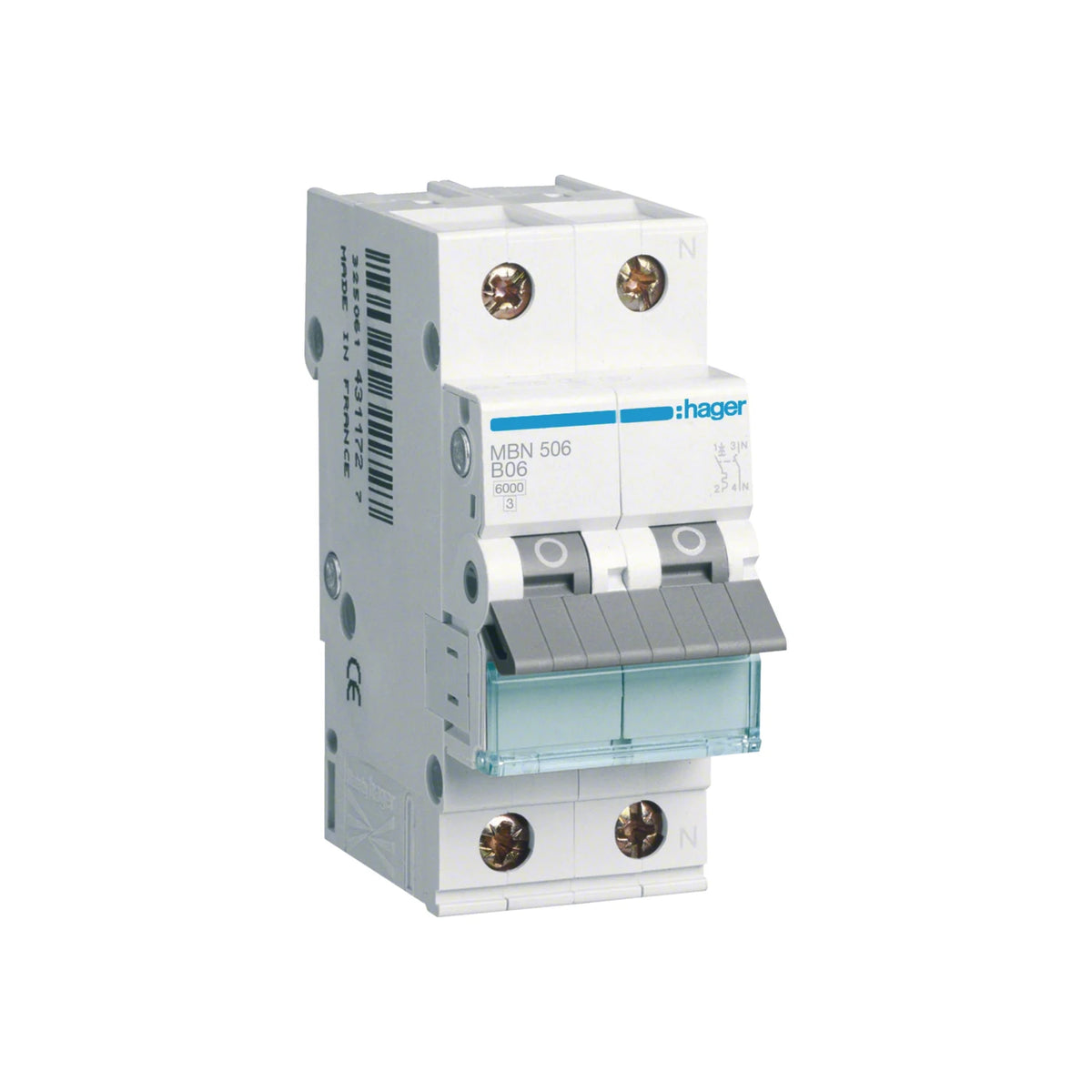

Hager miniature circuit breaker, characteristic curve B, 1+N, 6A - MBN506

The Hager MBN506 miniature circuit breaker is a high-quality 1+N circuit breaker designed to reliably protect your electrical installations against overloads and short circuits. With a rated current of 6 A and a tripping characteristic of curve B, this circuit breaker is particularly suitable for applications requiring precise protection, such as in residential buildings or small commercial installations.

Technical details:

• Manufacturer : Hager

• Model : MBN506

• Product type : Miniature circuit breaker (MCB)

• Number of poles : 1+N – protects one live conductor and the neutral conductor

• Rated current (In) : 6 A – for applications with low to medium current requirements

• Switching capacity : 6 kA – ensures high short-circuit withstand capability for added safety

• Tripping characteristic : Characteristic curve B – trips at 3–5 times the rated current, ideal for lighting and socket circuits

• Power supply : 230/400 V AC – suitable for standard AC power grids

• Mounting type : DIN rail – enables quick and space-saving installation in the distribution box

• Operating temperature range : -25°C to +70°C – guarantees reliable operation under varying environmental conditions

• Protection class : IP20 – protects against contact and foreign objects, suitable for dry indoor areas


Special features:

• Trip characteristic B for diverse applications : The B characteristic makes the MBN506 ideal for applications in residential and commercial settings where electrical devices such as lights, sockets, and household appliances are operated. The switch reliably trips at 3–5 times the rated current, making it perfect for protecting circuits with electronic loads.

• 6 kA breaking capacity for high safety : With a breaking capacity of 6 kA, the MBN506 offers robust protection against short circuits. This high short-circuit withstand capability is particularly important in electrical installations to prevent damage to equipment and cables.

• Compact design and easy installation : The circuit breaker is designed for DIN rail mounting, allowing for simple and space-saving installation in the distribution box. The ergonomically designed switch lever and clear labeling ensure user-friendly operation.


Scope:

The Hager MBN506 miniature circuit breaker is ideally suited for protecting lighting and socket circuits in residential and commercial buildings. It is perfect for use in installations where reliable and precise protection against overload and short circuit is required.

With the Hager MBN506, you are choosing a reliable and durable protective device that meets the requirements of modern electrical installations and fulfills the highest safety standards. It reliably protects your electrical systems and ensures the safe operation of your equipment.

Manufacturer part number : MBN506
Article number : VER0136
