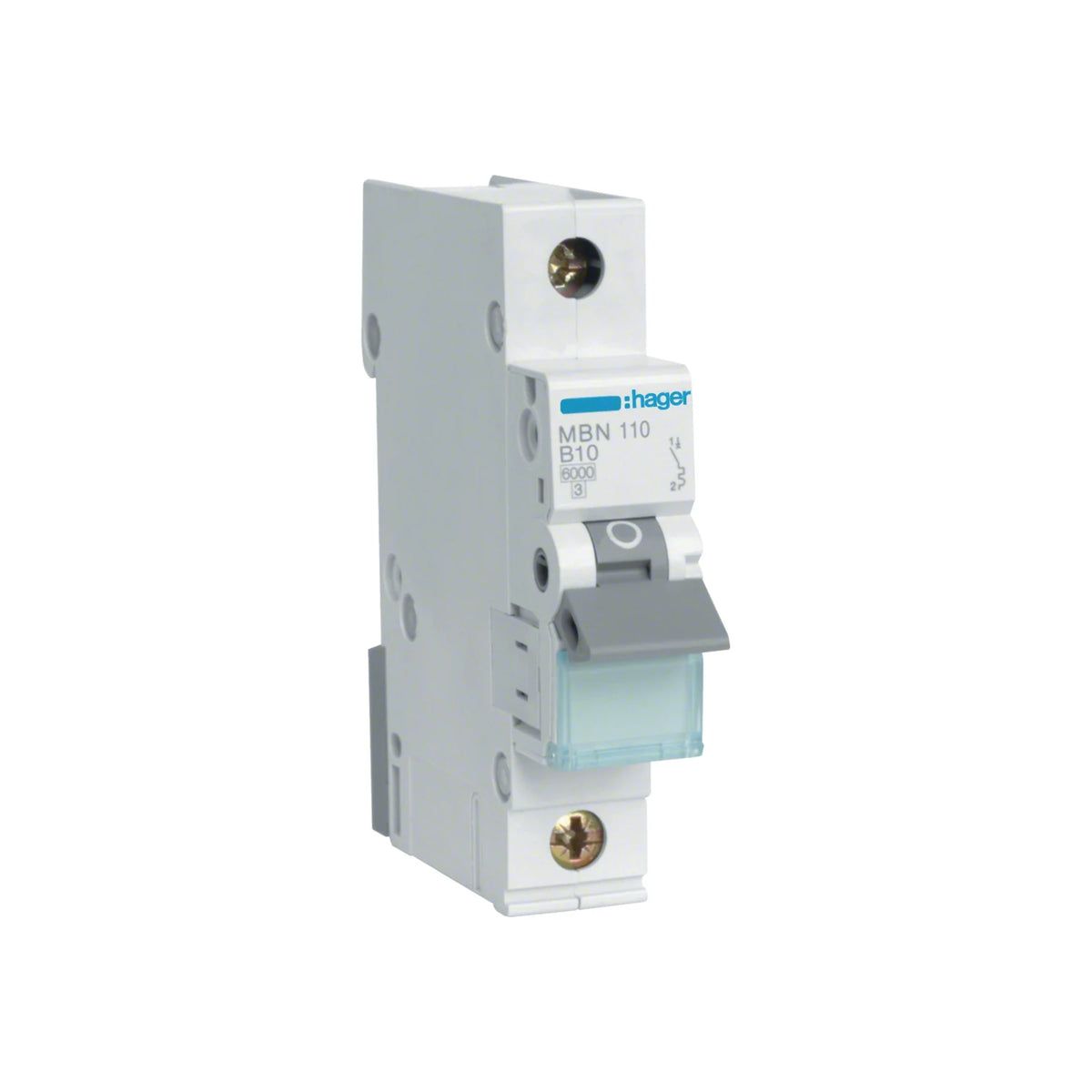

Hager miniature circuit breaker, characteristic curve B, 1-pole, 10A - MBN110

The Hager MBN110 miniature circuit breaker is a reliable protective device specifically designed to protect electrical circuits against overload and short-circuit currents. With its B-curve characteristic and a rated current of 10 A, this single-pole circuit breaker is ideally suited for applications in residential and commercial installations, such as protecting lighting and sockets.

Technical details:

• Manufacturer : Hager

• Model : MBN110

• Product type : Miniature circuit breaker (MCB)

• Number of poles : 1-pole – protects a single conductor

• Rated current (In) : 10 A – ideal for medium load circuits such as lighting and sockets

• Breaking capacity : 6 kA – offers high short-circuit withstand capability for protection in typical household and commercial installations.

• Tripping characteristic : Characteristic curve B – trips quickly at 3–5 times the rated current, ideal for circuits without high inrush currents

• Power supply : 230/400 V AC – suitable for standard power grids

• Mounting type : DIN rail – enables quick and easy installation in distribution cabinets

• Operating temperature range : -25°C to +70°C – designed for reliable operation under various temperature conditions

• Protection class : IP20 – Protection against contact and foreign objects, suitable for dry indoor areas


Special features:

• B-characteristic for universal use : The B-characteristic enables fast tripping at 3–5 times the rated current, making it ideal for applications without high inrush currents. The MBN110 is particularly suitable for protecting lighting and general final circuits.

• High short-circuit withstand capability : With a short-circuit withstand capability of up to 6 kA, the MBN110 circuit breaker is designed for typical household and commercial applications and effectively protects against overload and short circuits.

• User-friendly design and easy operation : The compact and robust construction of the MBN110 allows for space-saving installation. The ergonomic operating lever ensures easy handling and maintenance, while the clear markings facilitate straightforward installation.


Scope:

The Hager MBN110 miniature circuit breaker is ideal for use in residential and commercial installations where reliable protection for lighting circuits and sockets is required. Its fast tripping characteristic and high reliability make it the optimal choice for general final circuits with low inrush currents.

With the Hager MBN110, you are choosing a high-quality and durable protective device that ensures the highest safety standards in your electrical installation.

Manufacturer part number : MBN110
Article number : VER0117
