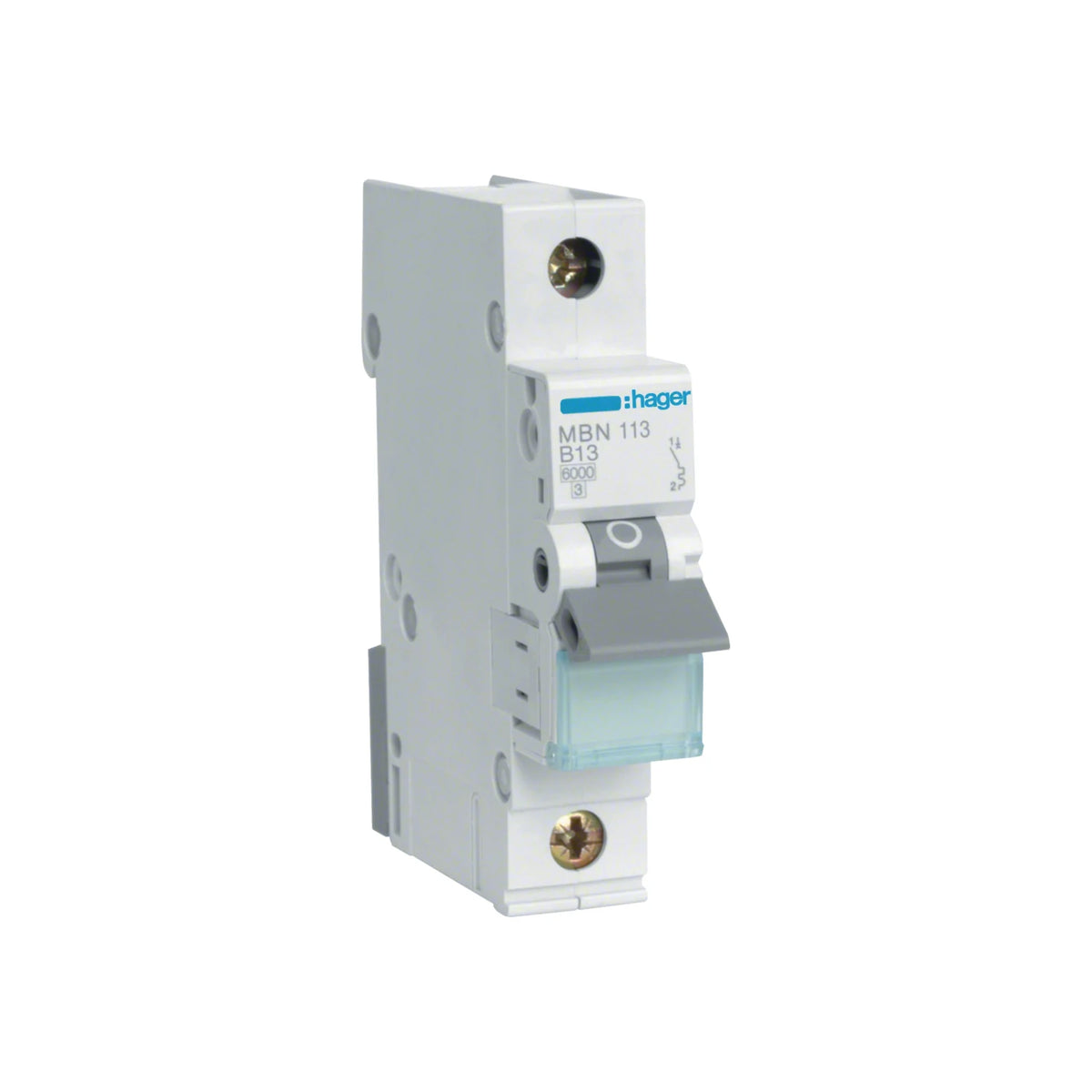

Hager miniature circuit breaker, characteristic curve B, 1-pole, 13A - MBN113

The Hager MBN113 miniature circuit breaker is a high-quality circuit breaker specifically designed to protect electrical circuits against overload and short-circuit currents. With its B-curve characteristic and a rated current of 13 A, this single-pole circuit breaker is ideal for applications requiring a slightly higher current, such as certain socket and lighting circuits in residential and commercial installations.

Technical details:

• Manufacturer : Hager

• Model : MBN113

• Product type : Miniature circuit breaker (MCB)

• Number of poles : 1-pole – protects a single conductor

• Rated current (In) : 13 A – ideal for circuits with medium to high current demands

• Breaking capacity : 6 kA – designed for high short-circuit withstand capability in residential and commercial installations

• Tripping characteristic : Characteristic curve B – trips quickly at 3–5 times the rated current and is therefore ideal for circuits without high inrush currents

• Power supply : 230/400 V AC – compatible with standard AC power grids

• Mounting type : DIN rail – enables quick and secure installation in distribution cabinets

• Operating temperature range : -25°C to +70°C – ensures reliable operation in various temperature ranges.

• Protection class : IP20 – Protection against contact and foreign objects, suitable for dry indoor areas


Special features:

• B characteristic for reliable protection : The B characteristic ensures rapid tripping at 3–5 times the rated current and is therefore particularly suitable for the protection of final circuits in which no high inrush currents occur, such as in lighting or general sockets.

• High short-circuit withstand capability : With a breaking capacity of up to 6 kA, the MBN113 offers reliable protection in typical household and commercial applications where short-circuit and overload protection are essential.

• Easy installation and compact design : The circuit breaker is compact and robust, allowing for space-saving installation. The operating lever is user-friendly, and the clear markings facilitate installation and maintenance.


Scope:

The Hager MBN113 miniature circuit breaker is ideally suited for residential and commercial buildings where reliable protection is required for circuits with somewhat higher current demands. Typical applications include lighting and socket circuits, where the B-characteristic ensures optimal protection against overload and short circuits.

With the Hager MBN113 circuit breaker, you are choosing a high-quality and durable protective device that impresses with its high reliability and safety and meets the high demands of modern electrical installations.

Manufacturer part number : MBN113
Article number : VER0118
