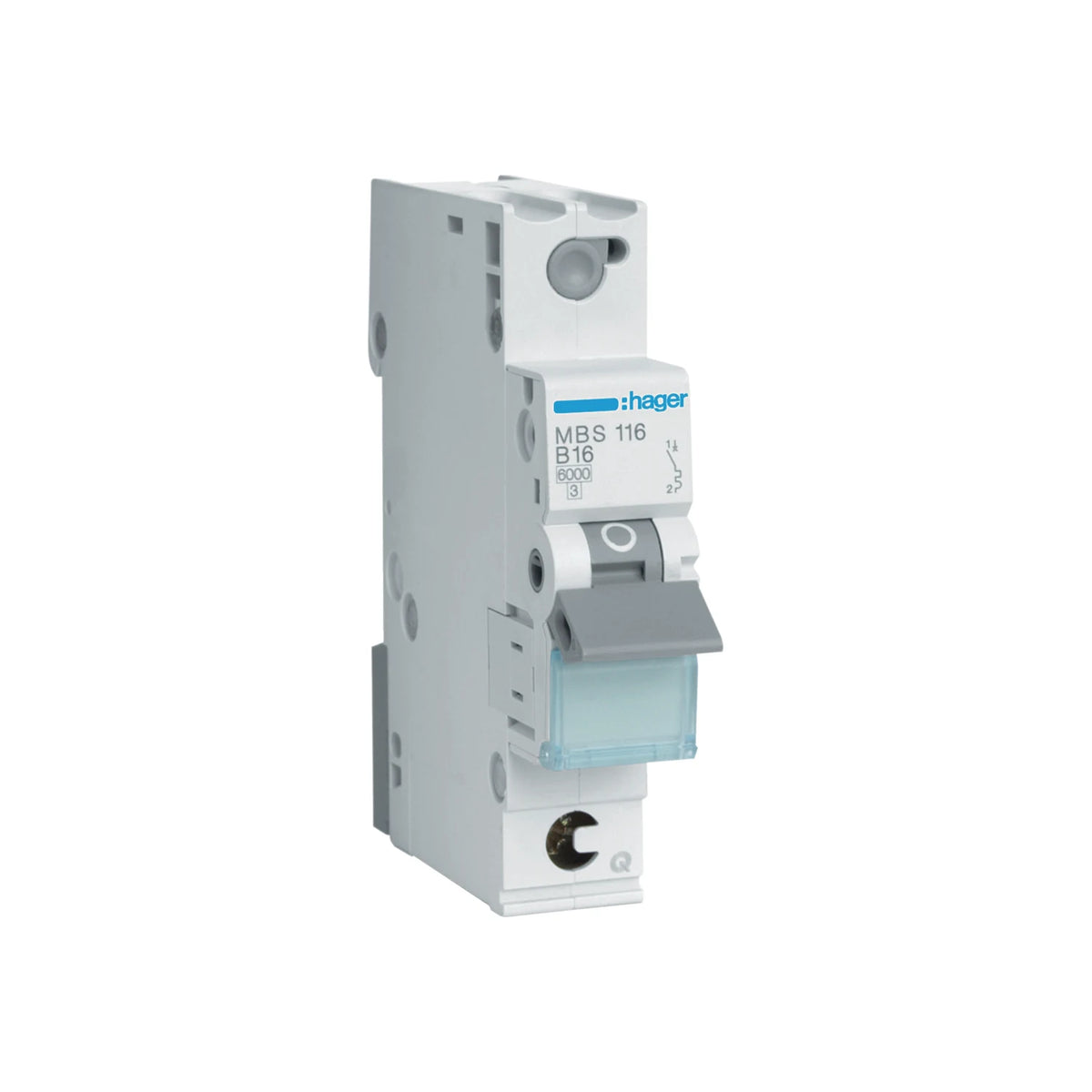

Hager miniature circuit breaker, characteristic curve B, 1-pole, 16A, QC - MBS116

The Hager MBS116 miniature circuit breaker is a high-quality circuit breaker specifically designed to protect electrical circuits against overload and short-circuit currents. This single-pole circuit breaker with characteristic curve B and a rated current of 16 A is ideally suited for residential and commercial installations. The integrated QuickConnect (QC) technology ensures particularly quick and tool-free installation.

Technical details:

• Manufacturer : Hager

• Model : MBS116

• Product type : Miniature circuit breaker (MCB)

• Number of poles : 1-pole – protects a single conductor

• Rated current (In) : 16 A – ideal for applications with medium to high current requirements, such as socket and lighting circuits

• Switching capacity : 6 kA – high short-circuit strength, suitable for use in residential and commercial installations

• Tripping characteristic : Characteristic curve B – fast tripping at 3–5 times the rated current, ideal for circuits without high inrush currents

• QuickConnect (QC) : Tool-free quick-connect technology for fast and easy installation

• Power supply : 230/400 V AC – compatible with typical AC power grids

• Mounting type : DIN rail – enables quick and space-saving installation in distribution cabinets

• Operating temperature range : -25°C to +70°C – suitable for reliable operation in various temperature ranges

• Protection class : IP20 – offers protection against contact and foreign objects, ideal for dry indoor areas


Special features:

• QuickConnect Technology (QC) : The MBS116 is equipped with innovative QuickConnect technology, which enables tool-free wiring. This saves time and simplifies installation by simply inserting and securely fixing the wires.

• B-characteristic for fast tripping : With its B-characteristic, this circuit breaker is ideal for final circuits where high inrush currents do not occur. It trips quickly and offers reliable protection for lighting and socket circuits.

• High short-circuit withstand capability : With a breaking capacity of 6 kA, the MBS116 ensures effective protection against short circuits and overloads, making it particularly safe for use in residential and commercial installations.

• User-friendly handling and installation : The compact and robust design of the MBS116 saves space during installation, and the ergonomic switch lever ensures easy operation. Clear markings enable quick and safe mounting.


Scope:

The Hager MBS116 miniature circuit breaker is ideal for residential and commercial buildings where reliable protection is required for circuits with medium to high current demands. Thanks to QuickConnect technology, it is perfectly suited for projects requiring fast and efficient installation. Typical applications include socket and lighting circuits, where the B-curve characteristic ensures optimal protection against overload and short circuits.

With the Hager MBS116 you are choosing a robust, durable and safe protective device that impresses with its high reliability and time-saving installation and meets the modern requirements for electrical installations.

Manufacturer part number : MBS116
Article number : VER0121
