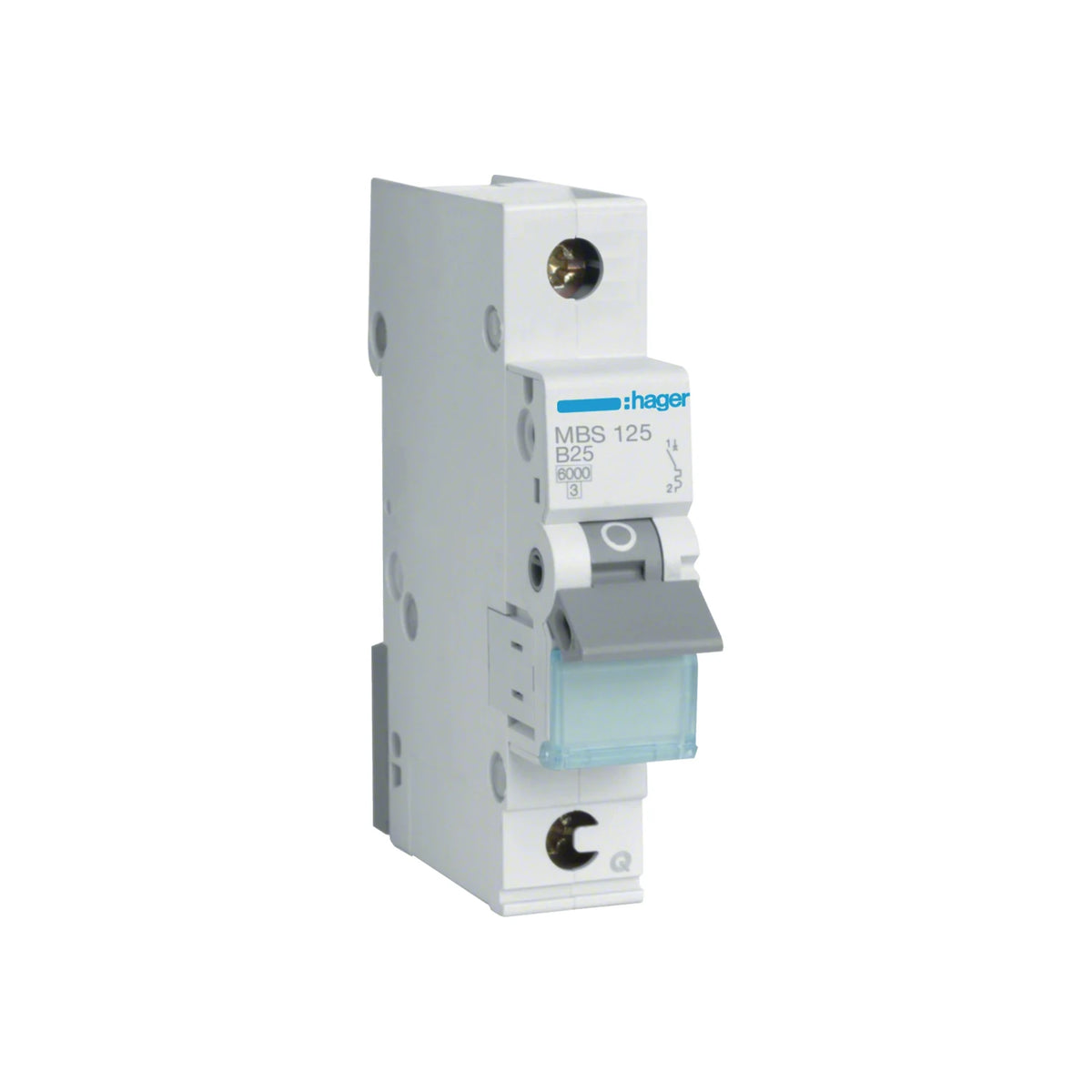

Hager miniature circuit breaker, characteristic curve B, 1-pole, 25A, QC - MBS125

The Hager MBS125 miniature circuit breaker is a high-quality circuit breaker specifically designed for circuits with higher current demands. With a rated current of 25 A and a fast tripping characteristic (curve B), this single-pole circuit breaker offers reliable protection against overload and short circuits in demanding installations. The integrated QuickConnect (QC) technology ensures time-saving, tool-free wiring, making installation even more efficient.

Technical details:

• Manufacturer : Hager

• Model : MBS125

• Product type : Miniature circuit breaker (MCB)

• Number of poles : 1-pole – protects a single conductor in the circuit

• Rated current (In) : 25 A – ideal for high-performance applications, such as socket circuits in workshops or with high loads

• Switching capacity : 6 kA – high short-circuit withstand capability, suitable for use in residential and commercial installations

• Tripping characteristic : Characteristic curve B – fast tripping at 3–5 times the rated current, ideal for circuits without high inrush currents

• QuickConnect (QC) : Tool-free quick-connect technology for easy and fast wiring.

• Power supply : 230/400 V AC – compatible with standard AC power grids

• Mounting type : DIN rail – for easy and space-saving installation in the distribution box

• Operating temperature range : -25°C to +70°C – suitable for reliable operation in various ambient temperatures

• Protection class : IP20 – Protection against contact and foreign objects, suitable for dry indoor areas


Special features:

• QuickConnect Technology (QC) : QuickConnect technology enables tool-free wiring, significantly reducing installation effort. The wires are simply inserted into the terminals and secured, ensuring safe and quick assembly.

• Fast tripping with characteristic curve B : The MBS125 offers reliable tripping at 3–5 times the rated current and effectively protects circuits against overload and short circuits. It is particularly suitable for final circuits that do not exhibit high inrush currents, such as lighting and socket circuits.

• High short-circuit strength : With a breaking capacity of 6 kA, the MBS125 offers protection against sudden short circuits and ensures maximum safety in electrical installations.

• Robust and compact design : The compact design saves space in the control cabinet, and the ergonomic operating lever makes switching on and off as well as maintenance of the switch easier.


Scope:

The Hager MBS125 miniature circuit breaker is ideal for electrical installations in residential and commercial buildings where circuits with higher current demands need to be protected. Typical applications include socket circuits in workshops or high-power applications where reliable protection and quick installation are required.

With the Hager MBS125 you get a powerful and durable protective device that meets high safety requirements and proves to be particularly installer-friendly thanks to the QuickConnect technology – perfect for demanding and time-saving electrical installations.

Manufacturer part number : MBS125
Article number : VER0124
