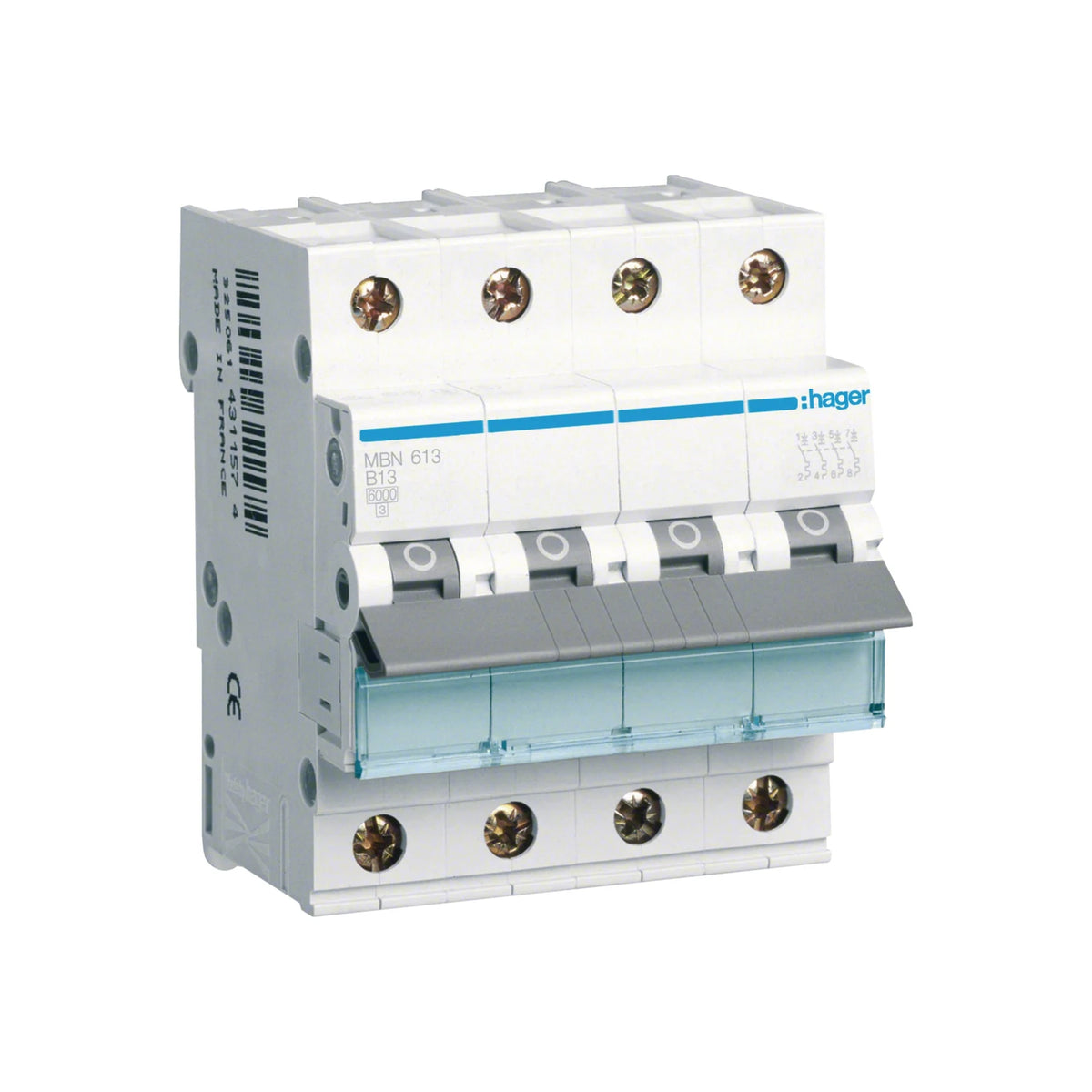

Hager miniature circuit breaker, characteristic curve B, 3+N, 13A - MBN613

Hager MBN613 miniature circuit breaker – characteristic curve B, 3+N, 13A

The Hager MBN613 miniature circuit breaker is the perfect solution for reliably protecting your electrical installations. With a rated current of 13 A and a B-curve characteristic, this 3-pole, neutral-conductor-supporting circuit breaker offers optimal protection against overloads and short circuits. It is ideally suited for residential and commercial installations where high safety and efficiency are required.

Technical details:

• Manufacturer : Hager

• Model : MBN613

• Product type : Miniature circuit breaker (MCB)

• Number of poles : 3+N – for three-phase power supplies with neutral conductor

• Rated current (In) : 13 A – ideal for medium current loads
• Switching capacity : 6 kA – ensures high short-circuit withstand capability

• Tripping characteristic : Characteristic curve B – trips at 3–5 times the rated current, ideal for resistive loads and applications with lower starting currents

• Power supply : 400 V AC – suitable for standard three-phase AC power grids

• Mounting type : DIN rail – allows for easy installation in the distribution box

• Operating temperature range : -25°C to +70°C – ensures reliable operation under various climatic conditions.

• Protection class : IP20 – protects against contact and solid foreign objects, ideal for dry indoor areas


Advantages of the Hager MBN613:

1. Reliable protection : With a rated current of 13 A and high short-circuit strength, the MBN613 effectively protects your electrical systems from overloads.

2. Easy installation : Mounting on the DIN rail allows for quick and easy installation, saving time and effort.

3. Versatile application : Ideal for use in residential and commercial installations where safety and efficiency are paramount.

4. Robust construction : The Hager MBN613 ensures a long service life and high reliability thanks to its design.


Conclusion:

The Hager MBN613 miniature circuit breaker is the ideal choice for anyone seeking a reliable and user-friendly solution for protecting their electrical installations. Its outstanding technical features, combined with its easy installation, make it the perfect choice for modern electrical installations. Trust the Hager MBN613 for comprehensive protection of your electrical systems!

Manufacturer part number : MBN613
Article number : VER0171
