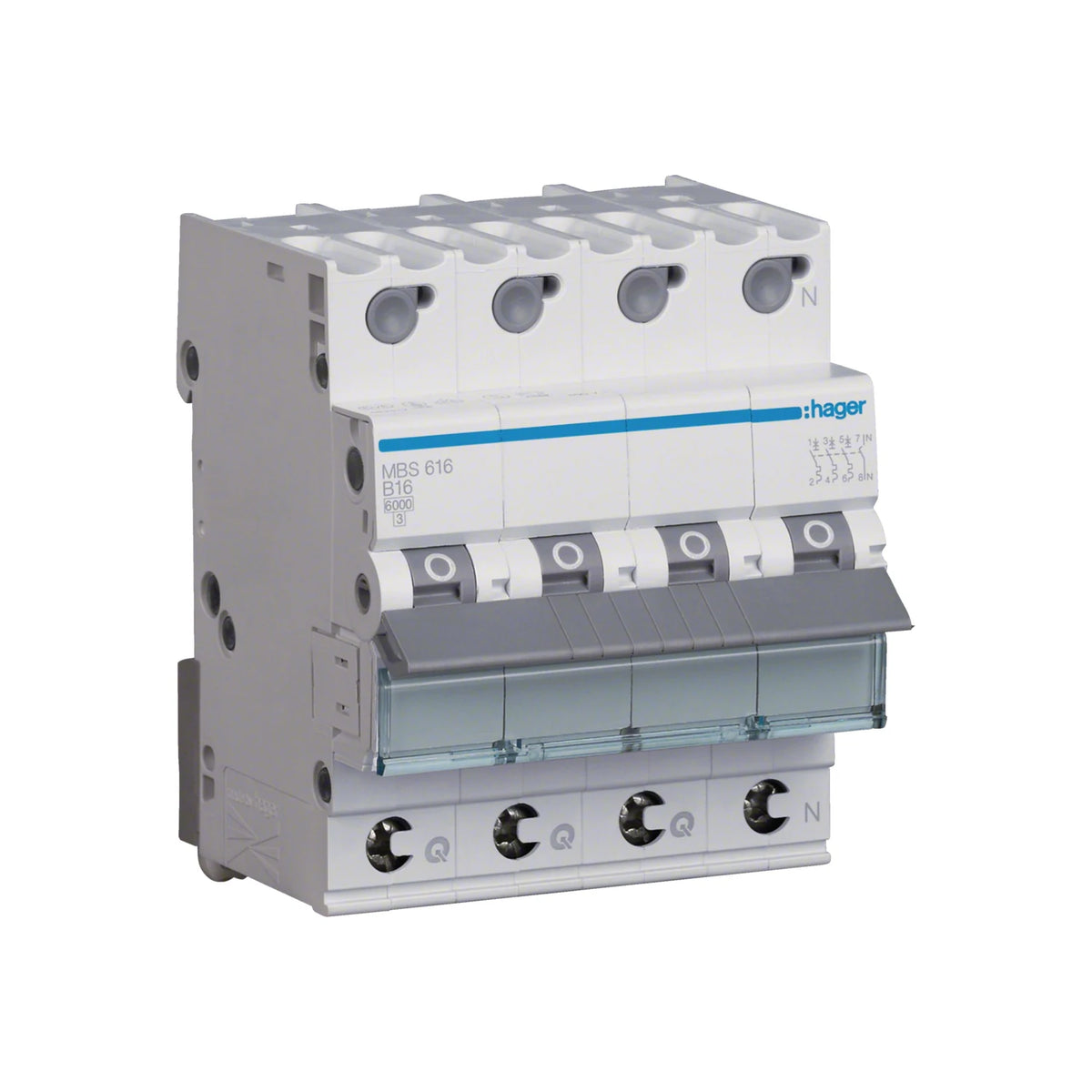

Hager miniature circuit breaker, characteristic curve B, 3+N, 16A, QC - MBS616

Hager miniature circuit breaker MBS616 – characteristic curve B, 3+N, 16A, QC

The Hager MBS616 miniature circuit breaker is an innovative solution for protecting electrical installations in residential and commercial applications. This high-quality, 3-pole circuit breaker with neutral conductor (3+N) and a rated current of 16A offers optimal protection against overloads and short circuits. Thanks to the convenient Quick-Connect (QC) connection option, installation and maintenance are significantly simplified, making it an excellent choice for electricians and installers.

Technical details:

• Manufacturer : Hager

• Model : MBS616

• Product type : Miniature circuit breaker (MCB)

• Number of poles : 3+N – ideal for three-phase systems with neutral conductor

• Rated current (In) : 16 A – for medium current loads in typical applications

• Breaking capacity : 6 kA – high short-circuit withstand capability for maximum protection

• Tripping characteristic : Characteristic curve B – for the protection of resistive loads and moderate inrush currents

• Power supply : 400 V AC – suitable for standard three-phase AC power grids

• Mounting type : DIN rail – easy installation in the distribution box

• Connection type : Quick-Connect (QC) – enables time-saving and uncomplicated wiring.

• Operating temperature range : -25°C to +70°C – for reliable operation under various environmental conditions

• Protection class : IP20 – Protection against contact and solid foreign objects for indoor use


Advantages of the Hager MBS616:

1. Excellent protection : With a rated current of 16A and a short-circuit withstand capability of 6 kA, the MBS616 offers reliable protection for your electrical installations.

2. Easy installation : Quick-Connect technology enables fast and easy wiring, saving valuable time during installation.

3. Versatile applications : Ideal for use in residential and commercial buildings where safety and efficiency are required.

4. High temperature resistance : Operation across a wide temperature range ensures reliability even under extreme conditions.

5. Robust construction : The high-quality workmanship and the well-thought-out design guarantee a long service life and high operational reliability.


Conclusion:

The Hager MBS616 miniature circuit breaker is the ideal choice for anyone seeking a reliable and user-friendly solution for protecting their electrical systems. With its high technical performance, easy installation, and versatile application, it offers everything you need for a safe and effective electrical installation. Choose the Hager MBS616 and protect your electrical systems with confidence!

Manufacturer part number : MBS616
Article number : VER0174
