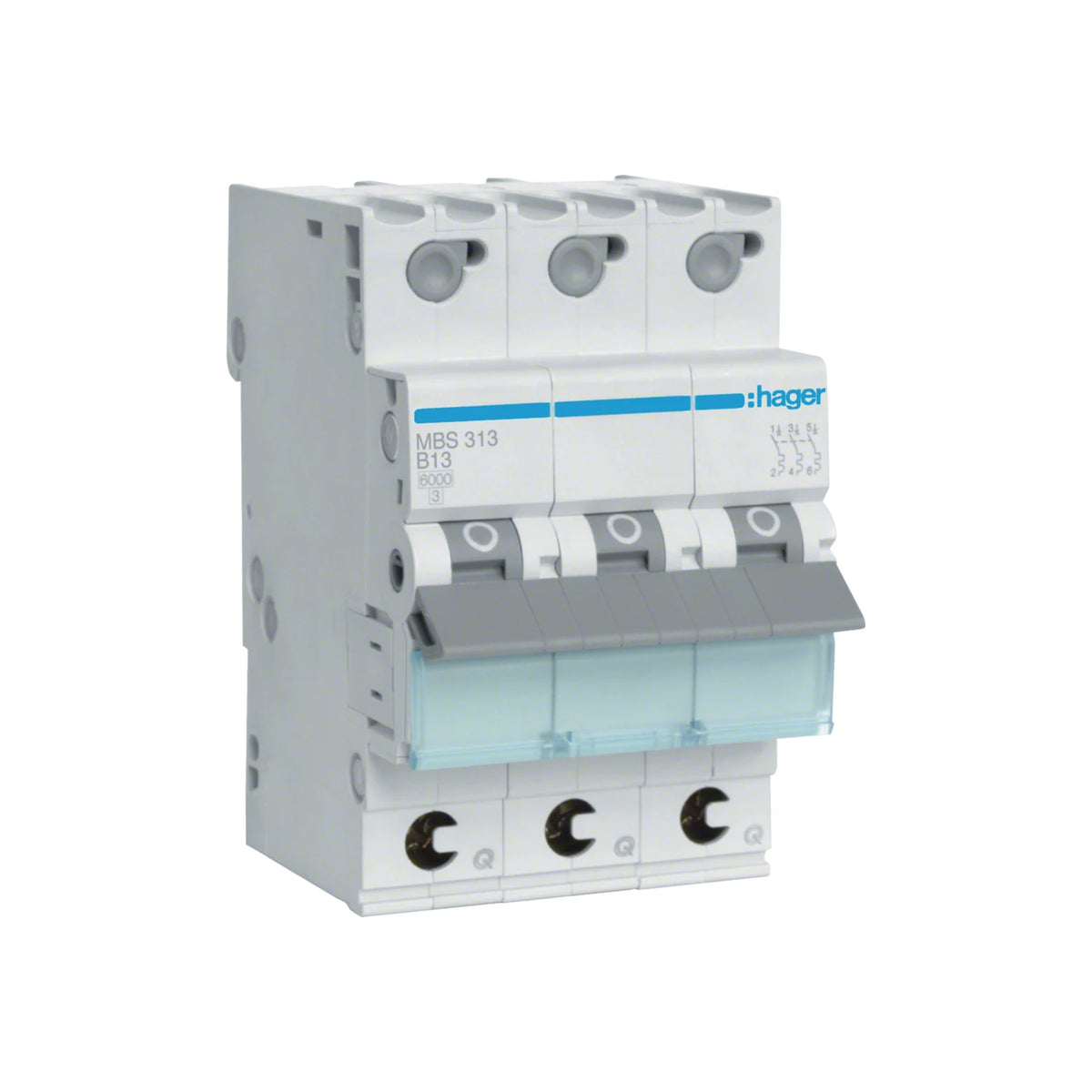

Hager miniature circuit breaker, characteristic curve B, 3-pole, 13A, QC - MBS313

Hager miniature circuit breaker MBS313 – characteristic curve B, 3-pole, 13A, QC

The Hager MBS313 miniature circuit breaker is the ideal solution for the safe protection of your electrical installations. With a rated current of 13 A and a tripping characteristic of curve B, this 3-pole circuit breaker offers reliable protection against overloads and short circuits. The integrated Quick Connect (QC) technology enables simple and time-saving installation, making it particularly suitable for modern electrical installations.

Technical details:

• Manufacturer : Hager

• Model : MBS313

• Product type : Miniature circuit breaker (MCB)

• Number of poles : 3 – protects three live conductors, ideal for three-phase systems

• Rated current (In) : 13 A – suitable for medium current loads

• Switching capacity : 6 kA – ensures high short-circuit withstand capability

• Tripping characteristic : Characteristic curve B – trips at 3–5 times the rated current, optimal for resistive loads such as lighting and heating systems

• Power supply : 400 V AC – suitable for three-phase AC networks

• Mounting type : DIN rail – enables simple and space-saving installation in the distribution box

• Operating temperature range : -25°C to +70°C – ensures reliable operation under various environmental conditions

• Protection class : IP20 – protects against contact and foreign objects, suitable for dry indoor areas

• Quick Connect (QC) function : simplifies wiring and significantly reduces installation effort.


Advantages of the Hager MBS313:

1. Efficient protection : The MBS313 offers comprehensive protection for your electrical systems. Its B-curve characteristic ensures that the switch reliably trips during inrush currents of resistive loads, thus minimizing false alarms.

2. High short-circuit withstand capability : With a breaking capacity of 6 kA, this circuit breaker effectively protects against short circuits, reducing the risk of damage to electrical equipment and systems.

3. Easy installation with QC function : The Quick Connect function enables faster and simpler wiring, significantly simplifying the installation process. The switch is designed for DIN rail mounting, thus saving space in the distribution box.

4. Versatile applicability : The Hager MBS313 is ideally suited for various applications in residential and commercial buildings, including the protection of lighting systems, heating systems and other electrical loads.


Conclusion:

The Hager MBS313 miniature circuit breaker is the ideal choice for anyone seeking a safe, efficient, and user-friendly solution for protecting their electrical installations. With its outstanding technical features and convenient Quick Connect function, it meets the demands of modern electrical installations and ensures reliable operation. Trust the Hager MBS313 and protect your electrical systems effectively!

Manufacturer part number : MBS313
Article number : VER0155
