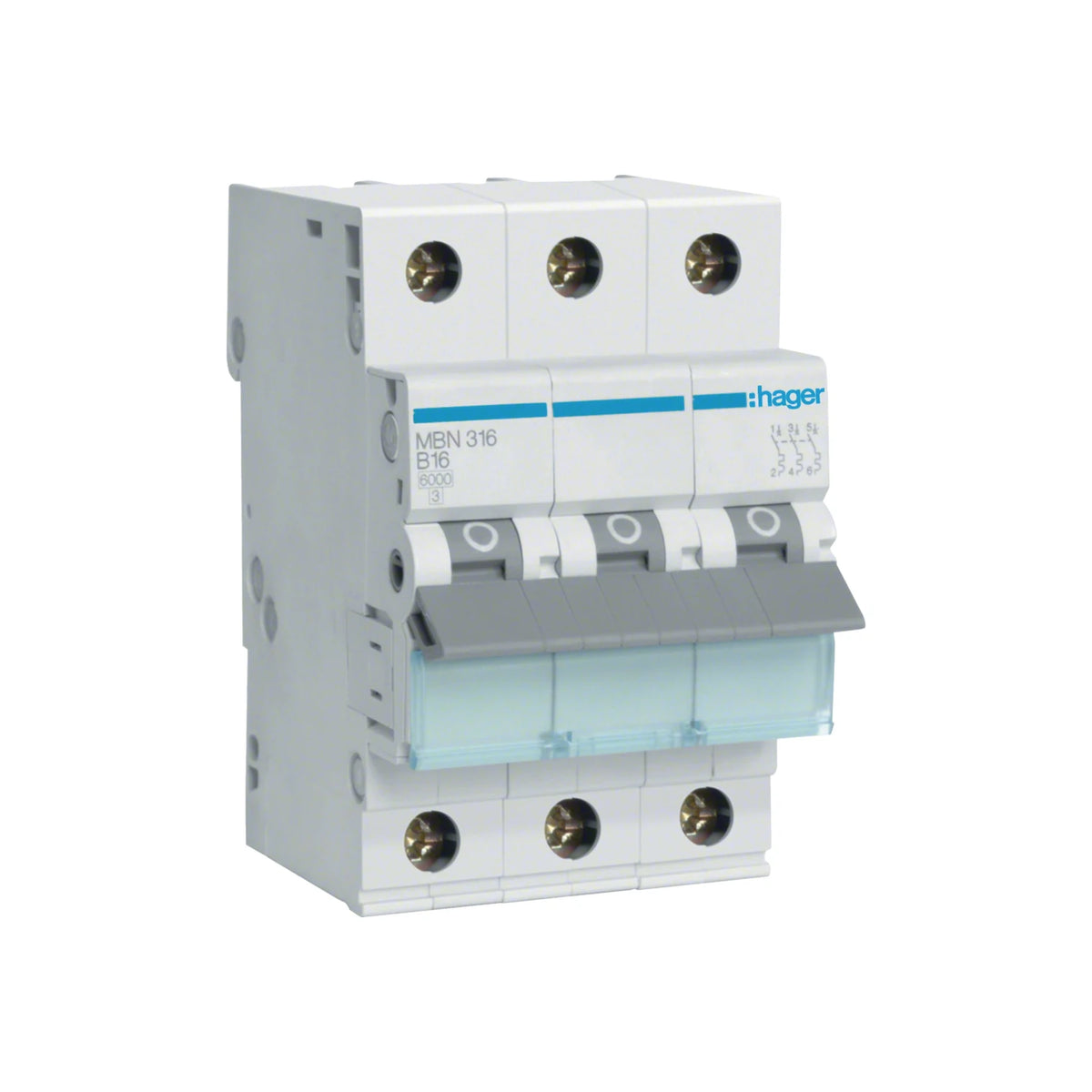

Hager miniature circuit breaker, characteristic curve B, 3-pole, 16A - MBN316

Hager MBN316 miniature circuit breaker – characteristic curve B, 3-pole, 16A

The Hager MBN316 miniature circuit breaker offers a reliable and effective solution for protecting your electrical installations. With a rated current of 16 A and a tripping characteristic of curve B, this 3-pole circuit breaker is perfectly suited for use in residential and commercial applications. It protects your electrical systems from overloads and short circuits, ensuring maximum safety.

Technical details:

• Manufacturer : Hager

• Model : MBN316

• Product type : Miniature circuit breaker (MCB)

• Number of poles : 3 – protects three live conductors, ideal for three-phase systems

• Rated current (In) : 16 A – suitable for medium current loads

• Switching capacity : 6 kA – ensures high short-circuit withstand capability

• Tripping characteristic : Characteristic curve B – trips at 3–5 times the rated current, optimal for resistive loads such as lighting and heating systems

• Power supply : 400 V AC – compatible with three-phase AC networks

• Mounting type : DIN rail – enables simple and space-saving installation in the distribution box

• Operating temperature range : -25°C to +70°C – ensures reliable operation under various environmental conditions

• Protection class : IP20 – protects against contact and foreign objects, suitable for dry indoor areas


Advantages of the Hager MBN316:

1. Reliable protection : The MBN316 offers comprehensive protection for your electrical systems. Its B-curve characteristic ensures that the switch trips reliably during inrush currents of resistive loads, minimizing false alarms and increasing safety.

2. High short-circuit withstand capability : With a breaking capacity of 6 kA, this circuit breaker effectively protects against short circuits. This reduces the risk of damage to your electrical equipment and increases operational safety.

3. Easy installation : The Hager MBN316 is designed for mounting on DIN rails, which simplifies installation in the distribution box and saves space. Furthermore, its robust construction ensures long-lasting use.

4. Versatile applicability : The MBN316 is ideally suited for various applications, including the protection of lighting systems, heating systems and other electrical loads in residential and commercial buildings.


Conclusion:

The Hager MBN316 miniature circuit breaker is the perfect choice for anyone seeking a safe and efficient solution for protecting their electrical installations. With its outstanding technical features, it meets the requirements of modern electrical installations and offers user-friendly operation. Trust the Hager MBN316 and protect your electrical systems effectively!

Manufacturer part number : MBN316
Article number : VER0156
