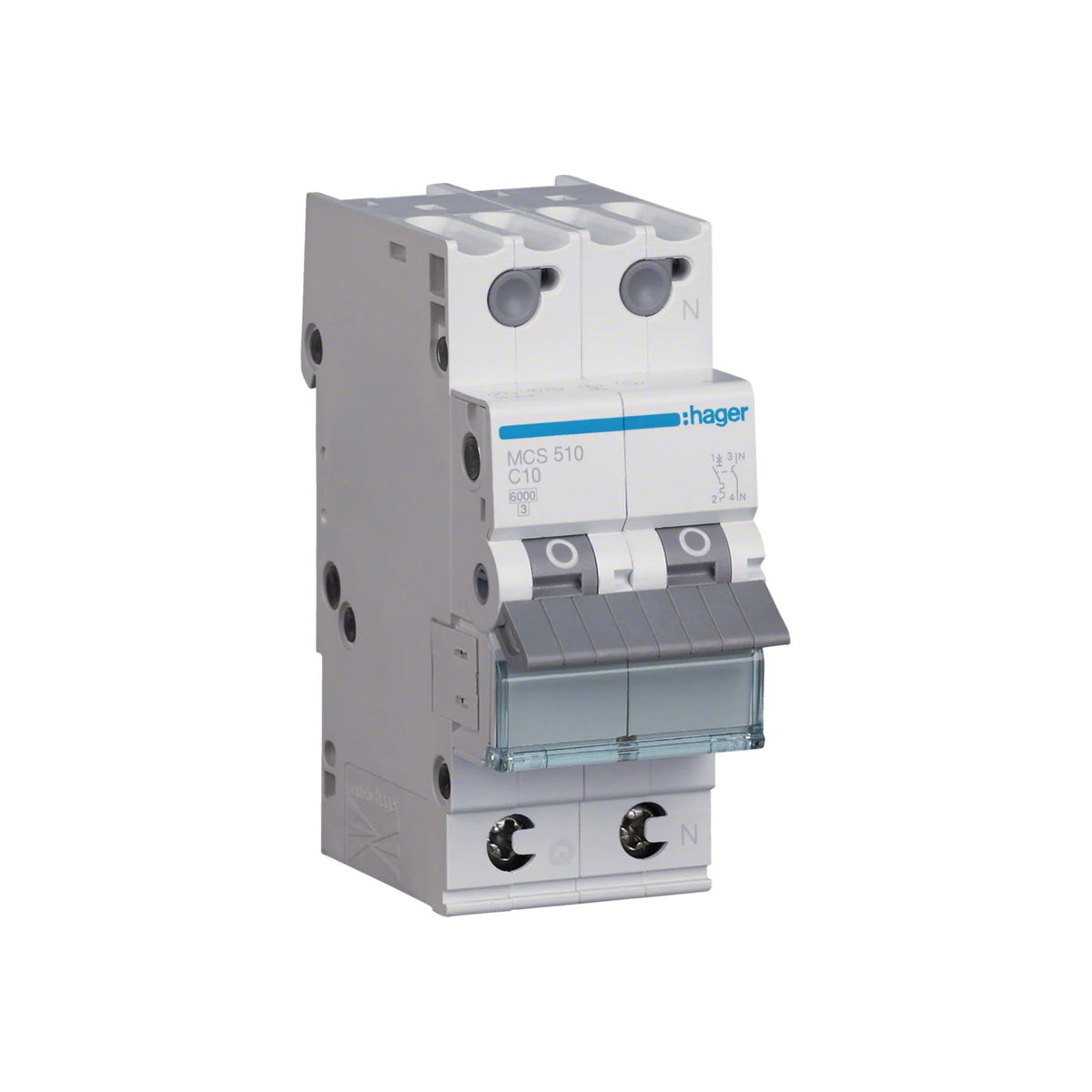

Hager miniature circuit breaker, characteristic curve C, 1+N, 10A, QC - MCS510

Hager MCS510 miniature circuit breaker – characteristic curve C, 1+N, 10A, QC

The Hager MCS510 miniature circuit breaker is a reliable and efficient solution for protecting your electrical installations. With a rated current of 10 A and a C-curve tripping characteristic, this 1+N circuit breaker protects against overloads and short circuits. Thanks to the convenient Quick Connect (QC) function, installation is even easier and faster, making it ideal for electricians and professionals.

Technical details:

• Manufacturer : Hager

• Model : MCS510

• Product type : Miniature circuit breaker (MCB)

• Number of poles : 1+N – protects one live conductor and the neutral conductor

• Rated current (In) : 10 A – suitable for medium current loads in residential and commercial applications

• Switching capacity : 6 kA – ensures high short-circuit withstand capability for maximum protection

• Tripping characteristic : C-curve – trips at 5–10 times the rated current, ideal for inductive loads such as motors and transformers

• Power supply : 230/400 V AC – suitable for standard AC power grids

• Mounting type : DIN rail – enables simple and space-saving installation in the distribution box

• Operating temperature range : -25°C to +70°C – ensures reliable operation under various environmental conditions

• Protection class : IP20 – protects against contact and foreign objects, suitable for dry indoor areas

• Quick Connect (QC) function : enables time-saving and user-friendly wiring.


Advantages of the Hager MCS510:

1. Reliable protection : The MCS510 offers comprehensive protection for your electrical installations. With its C-type tripping characteristic, it is ideal for applications with higher inrush currents, such as those found in electric motors and other inductive loads.

2. High short-circuit withstand capability : With a breaking capacity of 6 kA, this circuit breaker ensures robust protection against short circuits, significantly reducing the risk of damage to your electrical equipment.

3. Easy installation with QC function : The Hager MCS510 is designed for mounting on DIN rails and offers a practical Quick Connect function. This enables fast and easy wiring, which significantly speeds up the installation process.

4. Versatile applications : The MCS510 is ideally suited for a wide range of applications in residential and commercial buildings, especially for the protection of lighting and socket circuits, as well as for use in switchgear and electrical distribution boards.


Conclusion:

The Hager MCS510 miniature circuit breaker is the perfect choice for anyone seeking a safe and reliable solution for protecting their electrical installations. With its excellent technical features and convenient Quick Connect function, it meets the requirements of modern electrical installations and ensures user-friendly operation. Trust the Hager MCS510 and protect your electrical systems effectively!

Manufacturer part number : MCS510
Article number : VER0146
