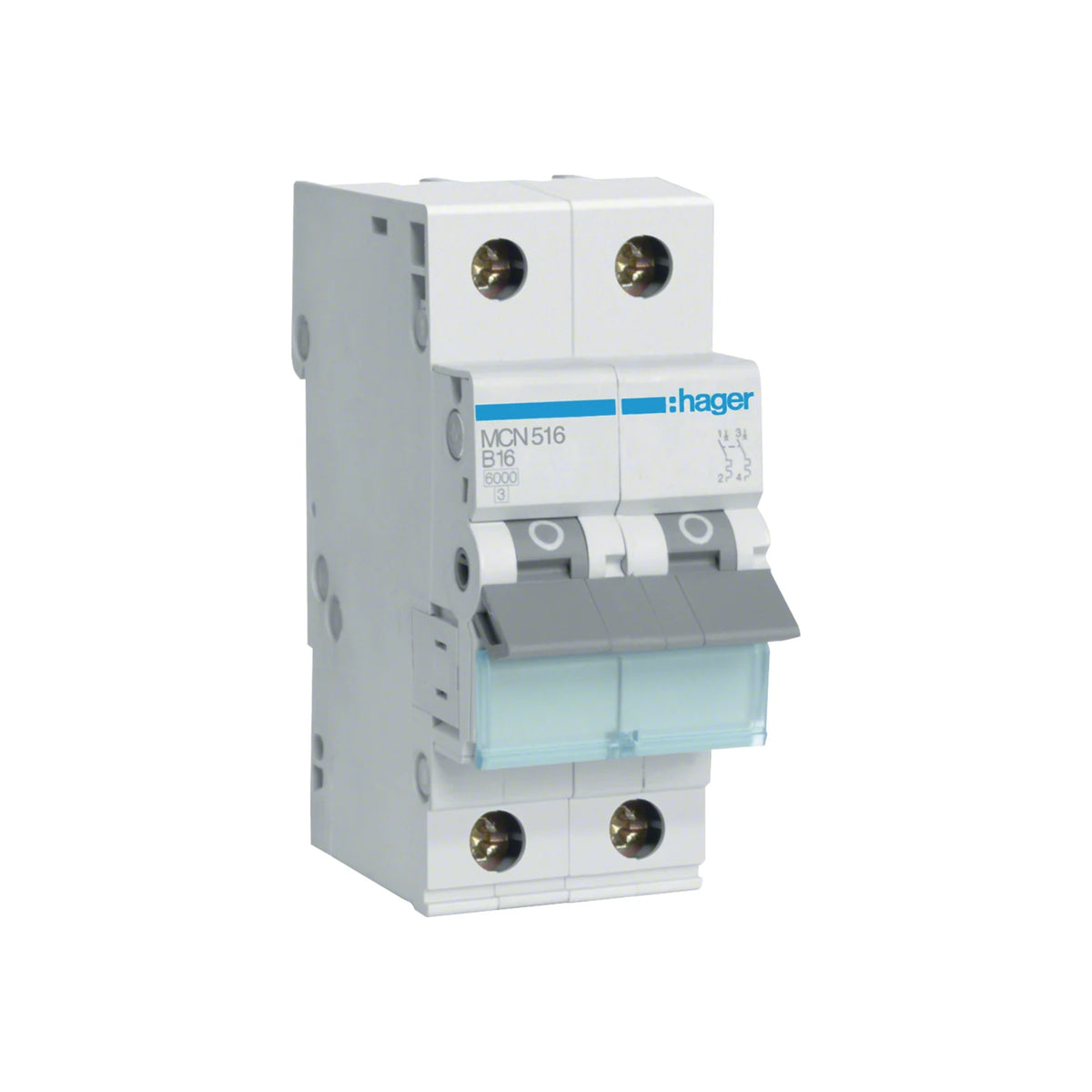

Hager miniature circuit breaker, characteristic curve C, 1+N, 16A - MCN516

Hager miniature circuit breaker MCN516 – characteristic curve C, 1+N, 16A

The Hager MCN516 miniature circuit breaker is a powerful and reliable solution for protecting your electrical systems. With a rated current of 16 A and a C-curve tripping characteristic, this 1+N circuit breaker offers optimal protection against overloads and short circuits, making it ideal for use in residential and commercial applications.

Technical details:

• Manufacturer : Hager

• Model : MCN516

• Product type : Miniature circuit breaker (MCB)

• Number of poles : 1+N – protects one live conductor and the neutral conductor

• Rated current (In) : 16 A – suitable for medium to high current loads

• Breaking capacity : 6 kA – offers high short-circuit withstand capability for comprehensive protection

• Tripping characteristic : Characteristic curve C – trips at 5–10 times the rated current, ideal for inductive loads such as electric motors

• Power supply : 230/400 V AC – compatible with common AC power grids

• Mounting type : DIN rail – enables simple and space-saving installation in the distribution box

• Operating temperature range : -25°C to +70°C – ensures reliable operation in various environments

• Protection class : IP20 – protects against contact and foreign objects, suitable for dry indoor areas


Advantages of the Hager MCN516:

1. High-level protection : The MCN516 offers comprehensive protection for your electrical installations and is particularly suitable for applications with devices that require high start-up currents. Its C-curve ensures that the switch only trips under extreme conditions, minimizing false alarms.

2. High short-circuit withstand capability : With a breaking capacity of 6 kA, this circuit breaker effectively protects against short circuits and significantly reduces the risk of damage to your electrical equipment and installations.

3. Easy installation : The Hager MCN516 is designed for mounting on DIN rails. This simplifies installation in control cabinets and ensures a neat and space-saving arrangement.

4. Versatile applicability : The MCN516 is ideally suited for a wide variety of applications in residential and commercial buildings, including the protection of lighting and socket circuits, as well as for use in switchgear and electrical distribution boards.


Conclusion:

The Hager MCN516 miniature circuit breaker is the perfect choice for anyone seeking a safe and efficient solution for protecting their electrical installations. With its outstanding technical features, it meets the requirements of modern electrical installations while offering user-friendly operation. Trust the Hager MCN516 and protect your electrical systems effectively!

Manufacturer part number : MCN516
Article number : VER0149
