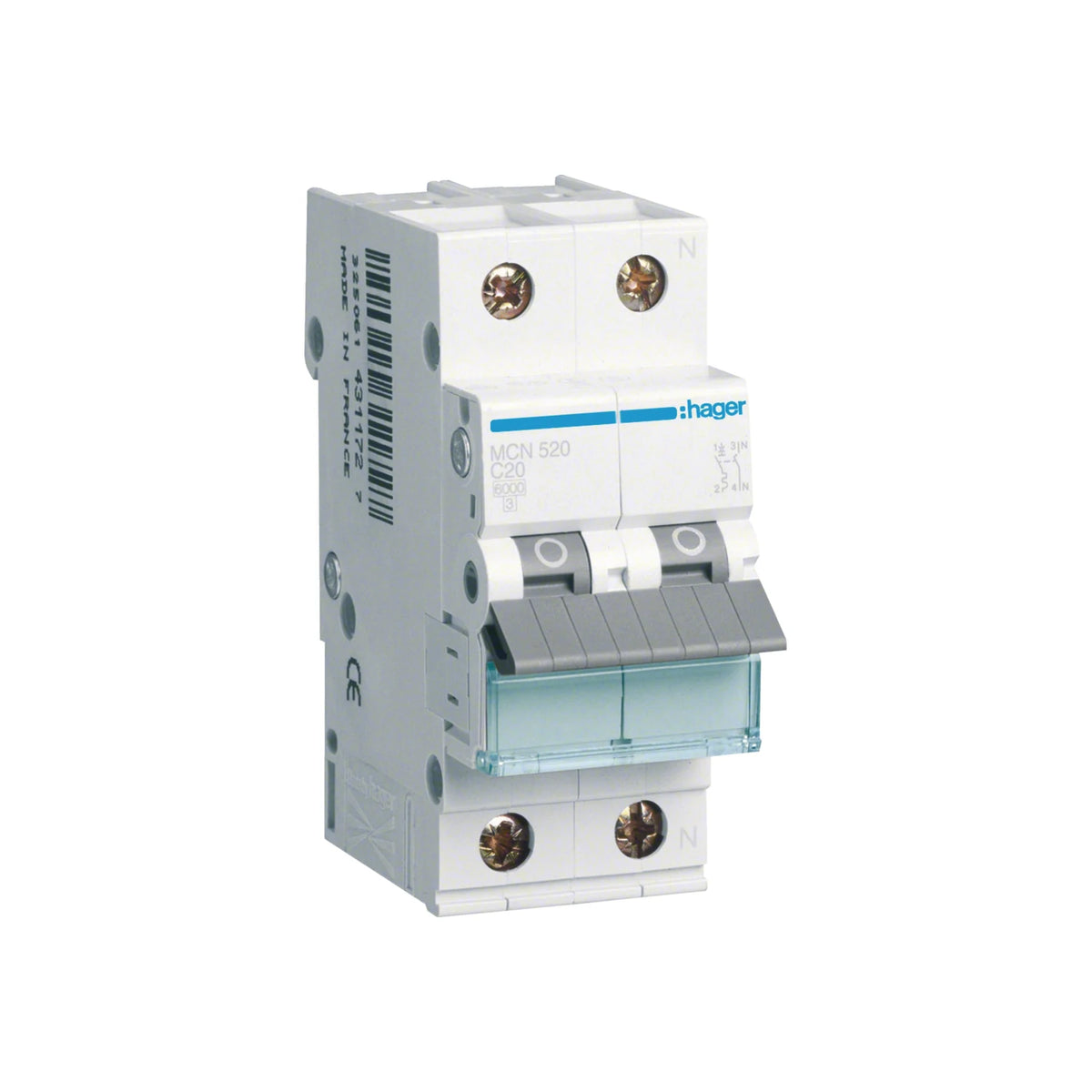

Hager miniature circuit breaker, characteristic curve C, 1+N, 20A - MCN520

Hager miniature circuit breaker MCN520 – characteristic curve C, 1+N, 20A

The Hager MCN520 miniature circuit breaker is the perfect solution for the safe protection of your electrical installations. With a rated current of 20 A and a C-curve tripping characteristic, this 1+N circuit breaker is ideal for medium to high current loads. It reliably protects your electrical systems against overloads and short circuits and meets the requirements of modern electrical installations.

Technical details:

• Manufacturer : Hager

• Model : MCN520

• Product type : Miniature circuit breaker (MCB)

• Number of poles : 1+N – protects one live conductor and the neutral conductor

• Rated current (In) : 20 A – suitable for medium to high current loads in residential and commercial applications

• Breaking capacity : 6 kA – offers high short-circuit withstand capability for comprehensive protection

• Tripping characteristic : Characteristic curve C – trips at 5–10 times the rated current, ideal for inductive loads such as electric motors

• Power supply : 230/400 V AC – compatible with common AC power grids

• Mounting type : DIN rail – enables simple and space-saving installation in the distribution box

• Operating temperature range : -25°C to +70°C – ensures reliable operation under various environmental conditions

• Protection class : IP20 – protects against contact and foreign objects, suitable for dry indoor areas


Advantages of the Hager MCN520:

1. Reliable protection : The MCN520 offers comprehensive protection for your electrical installations. Its C-curve ensures that the switch does not trip unnecessarily at high inrush currents, making it ideal for use with inductive loads.

2. High short-circuit withstand capability : With a breaking capacity of 6 kA, this circuit breaker effectively protects against short circuits, minimizing the risk of damage to your electrical equipment and increasing operational safety.

3. Easy installation : The Hager MCN520 is designed for mounting on DIN rails, which simplifies installation in the distribution box and saves space. Furthermore, its robust construction ensures long-lasting use.

4. Versatile application : The MCN520 is ideally suited for various applications in residential and commercial buildings. It is perfect for protecting lighting and socket circuits, as well as for use in switchgear and electrical distribution boards.


Conclusion:

The Hager MCN520 miniature circuit breaker is the ideal choice for anyone seeking a safe and efficient solution for protecting their electrical installations. With its outstanding technical features, it meets the requirements of modern electrical installations and ensures user-friendly operation. Trust the Hager MCN520 and protect your electrical systems effectively!

Manufacturer part number : MCN520
Article number : VER0151
