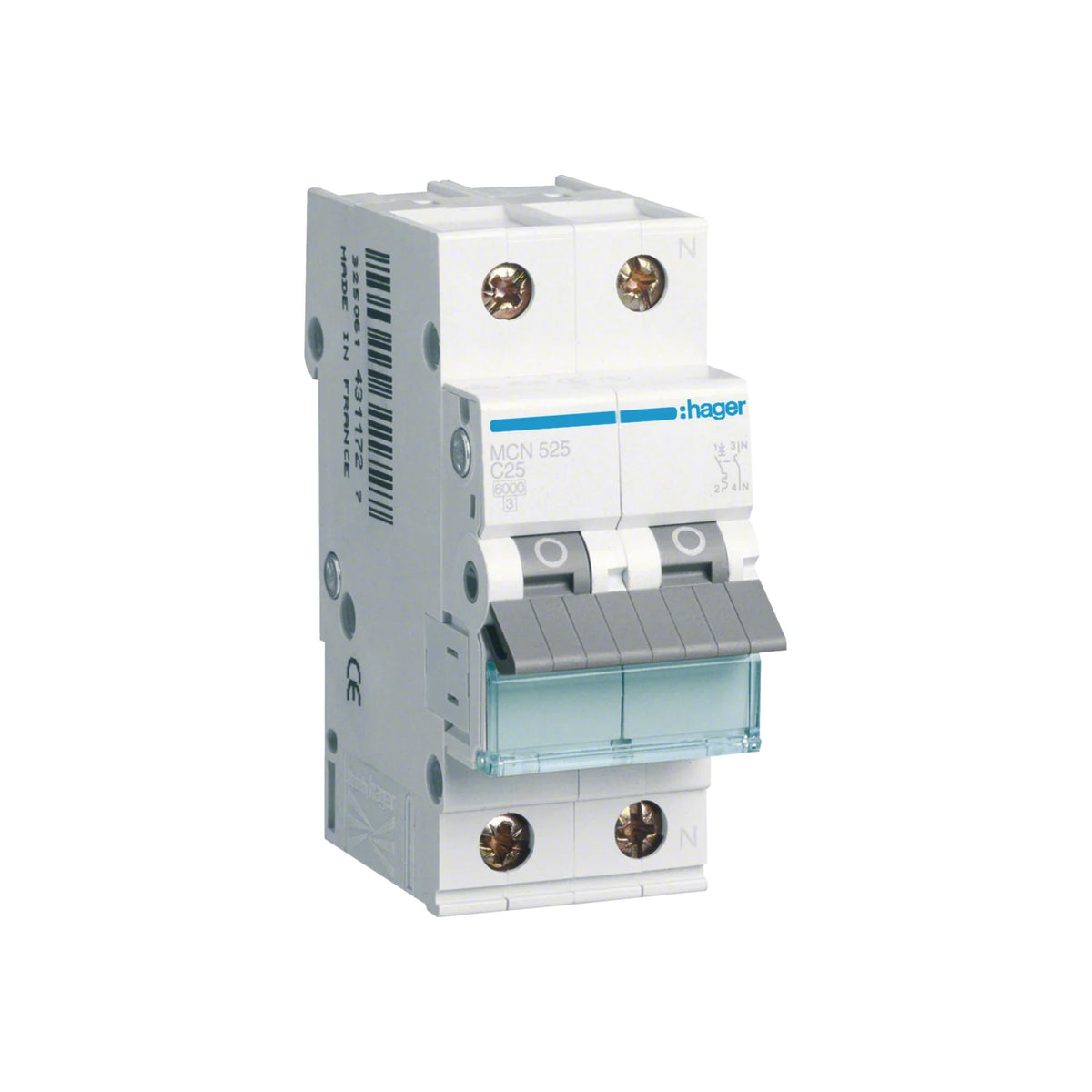

Hager miniature circuit breaker, characteristic curve C, 1+N, 25A - MCN525

Hager miniature circuit breaker MCN525 – characteristic curve C, 1+N, 25A

The Hager MCN525 miniature circuit breaker offers an outstanding solution for the safe protection of your electrical installations. With a rated current of 25 A and a C-curve tripping characteristic, this 1+N circuit breaker is perfectly suited for medium to high current loads. It reliably protects your electrical systems against overloads and short circuits, making it the ideal choice for residential and commercial applications.

Technical details:

• Manufacturer : Hager

• Model : MCN525

• Product type : Miniature circuit breaker (MCB)

• Number of poles : 1+N – protects one live conductor and the neutral conductor

• Rated current (In) : 25 A – ideal for medium to high current loads

• Switching capacity : 6 kA – ensures high short-circuit withstand capability

• Tripping characteristic : C-curve – trips at 5–10 times the rated current, ideal for inductive loads such as motors and transformers

• Power supply : 230/400 V AC – compatible with common AC power grids

• Mounting type : DIN rail – enables simple and space-saving installation in the distribution box

• Operating temperature range : -25°C to +70°C – ensures reliable operation under various environmental conditions

• Protection class : IP20 – protects against contact and foreign objects, suitable for dry indoor areas


Advantages of the Hager MCN525:

1. Reliable protection : The MCN525 ensures comprehensive protection for your electrical installations. Its C-curve ensures that the switch does not trip unnecessarily during inrush currents from inductive loads, minimizing the risk of false alarms.

2. High short-circuit withstand capability : With a breaking capacity of 6 kA, this circuit breaker offers effective protection against short circuits. This reduces the risk of damage to your electrical equipment and increases operational safety.

3. Easy installation : The Hager MCN525 is designed for mounting on DIN rails, which simplifies installation in the distribution box and saves space. Furthermore, its robust construction ensures long-lasting use.

4. Versatile application : The MCN525 is ideally suited for various applications in residential and commercial buildings. It is perfect for protecting lighting and socket circuits, as well as for use in switchgear and electrical distribution boards.


Conclusion:

The Hager MCN525 miniature circuit breaker is the ideal choice for anyone seeking a safe and efficient solution for protecting their electrical installations. With its outstanding technical features, it meets the requirements of modern electrical installations and offers user-friendly operation. Trust the Hager MCN525 and protect your electrical systems effectively!

Manufacturer part number : MCN525
Article number : VER0153
