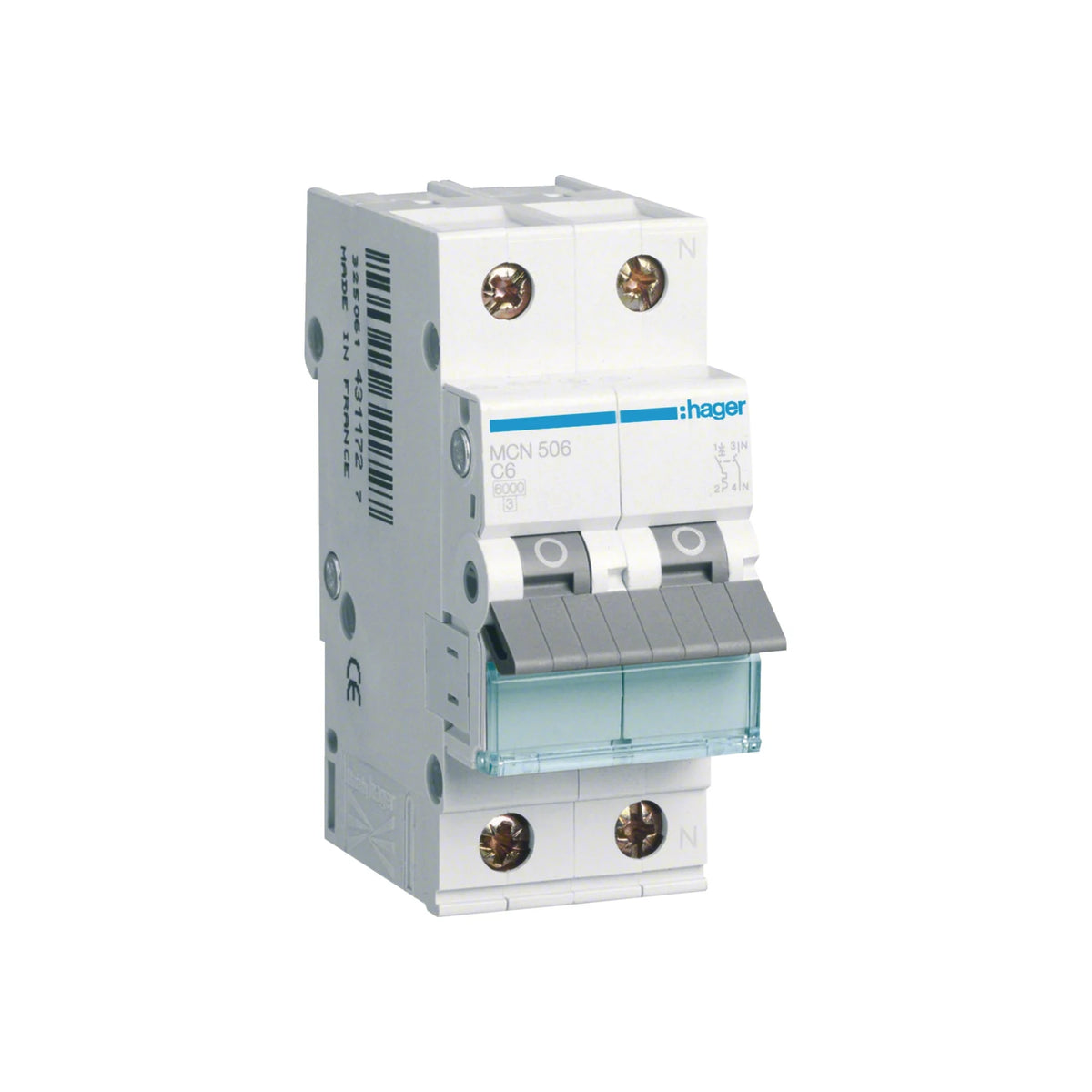

Hager miniature circuit breaker, characteristic curve C, 1+N, 6A - MCN506

Hager miniature circuit breaker MCN506 – characteristic curve C, 1+N, 6A

The Hager MCN506 miniature circuit breaker is the ideal choice for reliably protecting your electrical installations. With a rated current of 6 A and a C-curve tripping characteristic, this 1+N circuit breaker offers effective protection against overloads and short circuits. It is particularly well-suited for applications requiring higher starting currents, such as electric motors and other inductive loads.

Technical details:

• Manufacturer : Hager

• Model : MCN506

• Product type : Miniature circuit breaker (MCB)

• Number of poles : 1+N – protects one live conductor and the neutral conductor

• Rated current (In) : 6 A – ideal for lower current loads in residential and commercial applications

• Switching capacity : 6 kA – ensures high short-circuit withstand capability for maximum protection

• Tripping characteristic : Characteristic curve C – trips at 5–10 times the rated current, ideal for inductive loads such as motors

• Power supply : 230/400 V AC – suitable for standard AC power grids

• Mounting type : DIN rail – enables simple and space-saving installation in the distribution box

• Operating temperature range : -25°C to +70°C – ensures reliable operation under varying environmental conditions

• Protection class : IP20 – protects against contact and foreign objects, suitable for dry indoor areas


Advantages of the Hager MCN506:

1. Reliable protection : The MCN506 provides optimal protection for your electrical installations. Its C-type tripping characteristic is particularly suitable for applications with higher inrush currents, making it the ideal choice for protecting motors and other equipment.

2. High short-circuit withstand capability : With a breaking capacity of 6 kA, this circuit breaker offers robust protection against short circuits. This significantly reduces the risk of damage to your electrical equipment and installations.

3. Easy installation : The Hager MCN506 is easy to mount on a DIN rail, making installation quick and efficient. Clear labeling and an ergonomically designed switch lever make it easy to use.

4. Versatile applications : The MCN506 is ideally suited for a wide range of applications in residential and commercial buildings, especially where inductive loads such as pumps, fans or electric motors are operated.


Conclusion:

The Hager MCN506 miniature circuit breaker is the perfect solution for anyone seeking safe and reliable protection for their electrical installations. With its outstanding technical features, it meets the requirements of modern electrical installations and ensures user-friendly operation. Trust the Hager MCN506 and protect your electrical systems effectively!

Manufacturer part number : MCN506
Article number : VER0143
