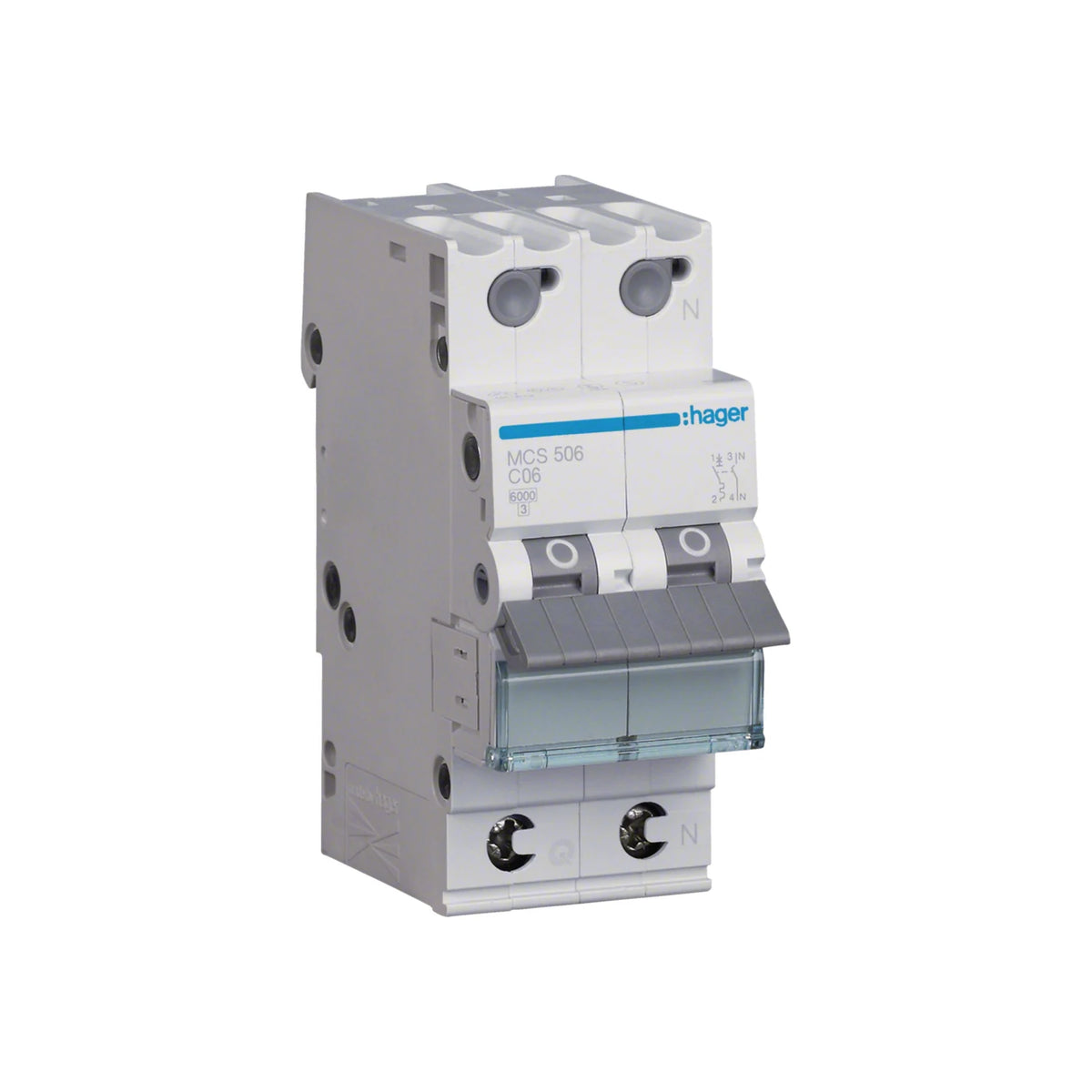

Hager miniature circuit breaker, characteristic curve C, 1+N, 6A, QC - MCS506

Hager MCS506 miniature circuit breaker – characteristic curve C, 1+N, 6A, QC

The Hager MCS506 miniature circuit breaker is an excellent solution for the safe protection of your electrical installations. With a rated current of 6 A and a C-curve tripping characteristic, this 1+N circuit breaker offers effective protection against overloads and short circuits. The integrated Quick Connect (QC) function enables particularly easy and time-saving installation, making it the ideal choice for electricians and professionals.

Technical details:

• Manufacturer : Hager

• Model : MCS506

• Product type : Miniature circuit breaker (MCB)

• Number of poles : 1+N – protects one live conductor and the neutral conductor

• Rated current (In) : 6 A – ideal for applications with lower current loads

• Switching capacity : 6 kA – ensures high short-circuit withstand capability for maximum protection

• Tripping characteristic : C-curve – trips at 5–10 times the rated current, perfect for inductive loads such as motors or transformers

• Power supply : 230/400 V AC – suitable for standard AC power grids

• Mounting type : DIN rail – enables simple and space-saving installation in the distribution box

• Operating temperature range : -25°C to +70°C – ensures reliable operation under various environmental conditions

• Protection class : IP20 – protects against contact and foreign objects, suitable for dry indoor areas

• Quick Connect (QC) function : enables time-saving and user-friendly wiring.


Advantages of the Hager MCS506:

1. Reliable protection : The MCS506 offers comprehensive protection for your electrical installations. Its C-type tripping characteristic is particularly suitable for applications with higher inrush currents, making this switch ideal for use in motor applications and other inductive loads.

2. High short-circuit withstand capability : With a breaking capacity of 6 kA, this circuit breaker provides robust protection against short circuits, significantly reducing the risk of damage to your electrical equipment.

3. Easy installation with QC function : The Hager MCS506 is designed for mounting on DIN rails and features a practical Quick Connect function. This enables quick and easy wiring, which significantly speeds up and simplifies the installation process.

4. Versatile applications : The MCS506 is ideally suited for a wide range of applications in residential and commercial buildings, especially for the protection of electric motors, pumps and transformers.


Conclusion:

The Hager MCS506 miniature circuit breaker is the perfect choice for anyone seeking a safe and reliable solution for protecting their electrical installations. With its excellent technical features and convenient Quick Connect function, it meets the requirements of modern electrical installations and ensures user-friendly operation. Trust the Hager MCS506 and protect your electrical systems effectively!

Manufacturer part number : MCS506
Article number : VER0144
