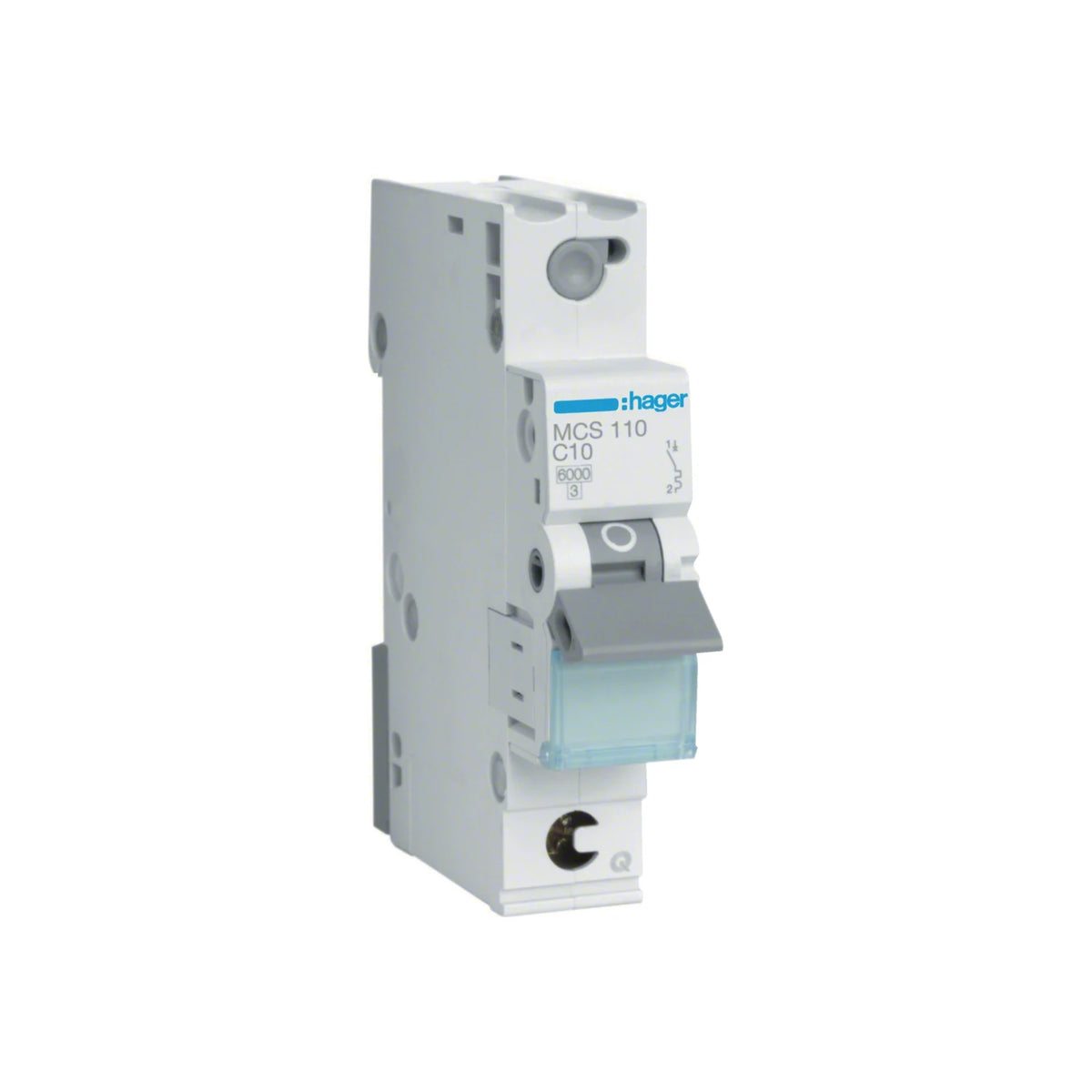

Hager miniature circuit breaker, characteristic curve C, 1-pole, 10A, QC - MCS110

The Hager MCS110 miniature circuit breaker is a reliable and easy-to-install circuit breaker, ideally suited for applications with short-term high inrush currents. With a rated current of 10 A and a C-curve tripping characteristic, this single-pole circuit breaker protects devices and systems against overload and short circuits. The integrated QuickConnect (QC) technology enables tool-free and time-saving wiring, making installation even more efficient.

Technical details:

• Manufacturer : Hager

• Model : MCS110

• Product type : Miniature circuit breaker (MCB)

• Number of poles : 1-pole – protects a single conductor in the circuit

• Rated current (In) : 10 A – suitable for circuits with moderate current requirements

• Breaking capacity : 6 kA – high short-circuit withstand capability, ideal for use in residential and commercial installations

• Tripping characteristic : Characteristic curve C – trips at 5–10 times the rated current and is therefore ideal for circuits with briefly increased inrush currents.

• QuickConnect (QC) : Tool-free wiring for quick and easy installation

• Power supply : 230/400 V AC – compatible with standard AC power grids

• Mounting type : DIN rail – space-saving and secure mounting in the distribution box

• Operating temperature range : -25°C to +70°C – suitable for reliable operation under various environmental conditions

• Protection class : IP20 – Protection against contact and foreign objects, ideal for dry indoor areas


Special features:

• QuickConnect (QC) technology : QuickConnect technology enables tool-free wiring, significantly reducing assembly time. The wires are simply inserted into the connectors and secured, ensuring a safe, stable, and quick installation.

• C-curve for high inrush current : The C-curve tripping characteristic is perfectly suited for applications with briefly increased inrush currents, such as those occurring with motors, fluorescent lamps, or transformers. The circuit breaker reliably trips at 5–10 times the rated current, thus effectively protecting against overload and short circuits.

• 6 kA switching capacity : With a switching capacity of 6 kA, the MCS110 offers high protection against sudden short circuits and is ideally suited for residential and commercial installations that rely on a stable and safe power supply.

• Compact and ergonomic design : The space-saving construction allows for easy installation on the DIN rail. The ergonomic switch lever and clear markings also simplify operation and maintenance.


Scope:

The Hager MCS110 miniature circuit breaker is ideal for use in residential and commercial buildings where devices and installations that generate temporarily high inrush currents need to be protected, such as motor-driven appliances, transformers, or fluorescent lamps. The QuickConnect wiring enables efficient installation, making the breaker particularly well-suited for larger installations and saving time.

With the Hager MCS110 you choose a high-quality, durable and safety-oriented protective device that impresses with its high reliability and installer-friendly QuickConnect technology – perfect for modern electrical installations with high requirements.

Manufacturer part number : MCS110
Article number : VER0128
