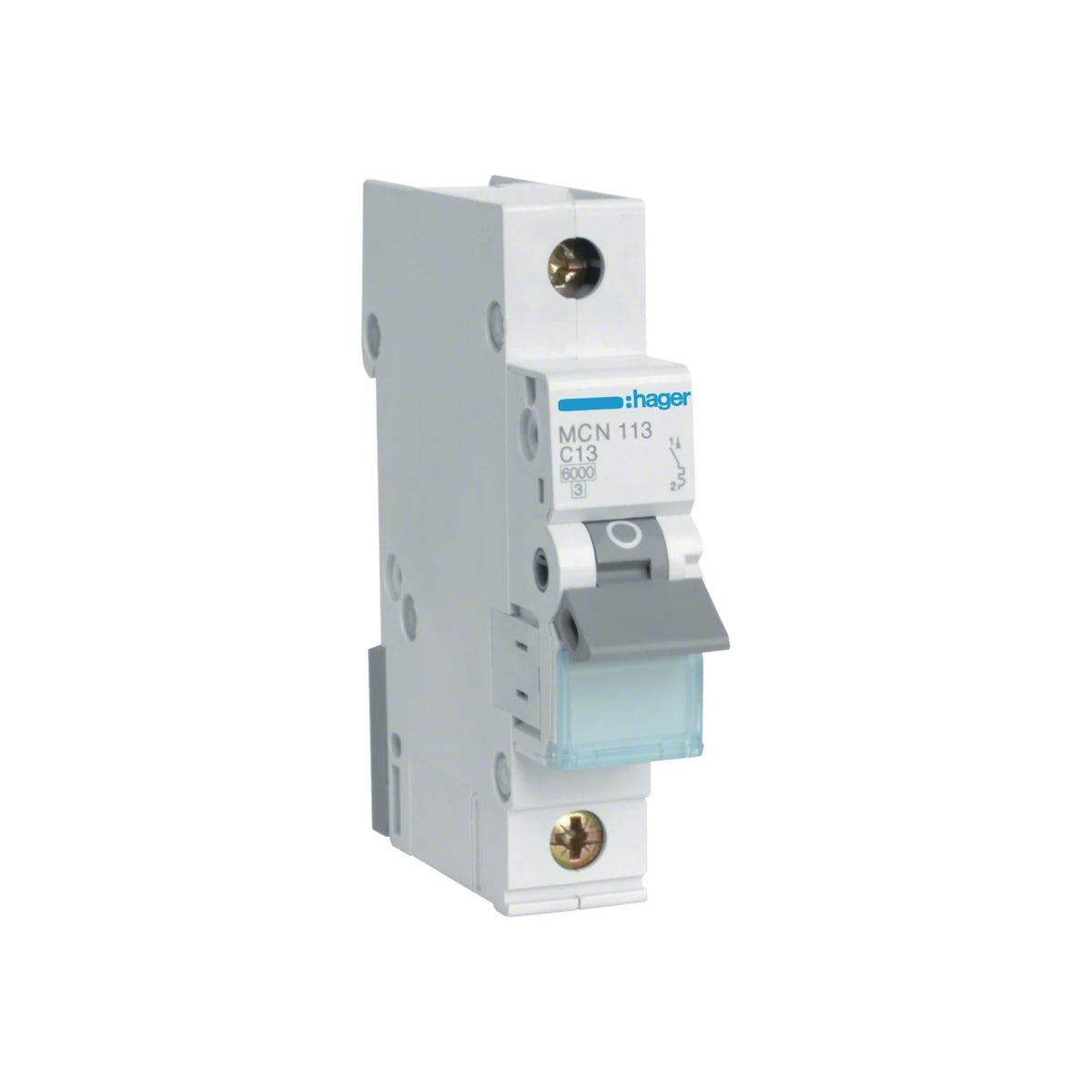

Hager miniature circuit breaker, characteristic curve C, 1-pole, 13A - MCN113

The Hager MCN113 miniature circuit breaker is a reliable circuit breaker that protects electrical circuits against overload and short circuits. With a rated current of 13 A and a tripping characteristic of curve C, this single-pole circuit breaker is specifically designed for applications where short-term increases in inrush currents may occur, such as in motors or lighting systems in residential and commercial buildings.

Technical details:

• Manufacturer : Hager

• Model : MCN113

• Product type : Miniature circuit breaker (MCB)

• Number of poles : 1-pole – protects a single conductor in the circuit

• Rated current (In) : 13 A – ideal for circuits with moderate current requirements

• Breaking capacity : 6 kA – ensures high short-circuit withstand capability, ideal for residential and light commercial applications

• Tripping characteristic : C-curve – ensures tripping at 5–10 times the rated current, ideal for circuits with higher inrush currents

• Power supply : 230/400 V AC – compatible with common AC power grids

• Mounting type : DIN rail – enables simple and space-saving installation in the distribution box

• Operating temperature range : -25°C to +70°C – suitable for safe operation under varying ambient temperatures

• Protection class : IP20 – Protection against contact and foreign objects, designed for dry indoor areas


Special features:

• C-curve for short-term high inrush currents : The C-curve tripping characteristic makes the MCN113 ideal for use in circuits with devices that draw higher currents briefly when switched on, such as electric motors, transformers, or certain lighting systems. The circuit breaker reliably trips at 5–10 times the rated current, thus protecting against overload and short circuits.

• 6 kA breaking capacity for high safety : With a breaking capacity of 6 kA, the circuit breaker offers reliable protection in cases of short circuit or overload and is ideally suited for use in household and commercial installations.

• Compact and robust design : The MCN113 is space-saving and can be easily mounted on a DIN rail in a control cabinet. Clear labeling and an ergonomic switch lever simplify operation and maintenance.


Scope:

The Hager MCN113 miniature circuit breaker is particularly suitable for applications in residential and commercial buildings where short-term high inrush currents may occur. It offers comprehensive protection for lighting systems, electric motors, and other electrical devices that draw a higher current when switched on.

With the Hager MCN113 you are choosing a robust, reliable and safe protective device that has been specially developed for circuits with short-term inrush currents and meets the requirements of modern electrical installations.

Manufacturer part number : MCN113
Article number : VER0129
