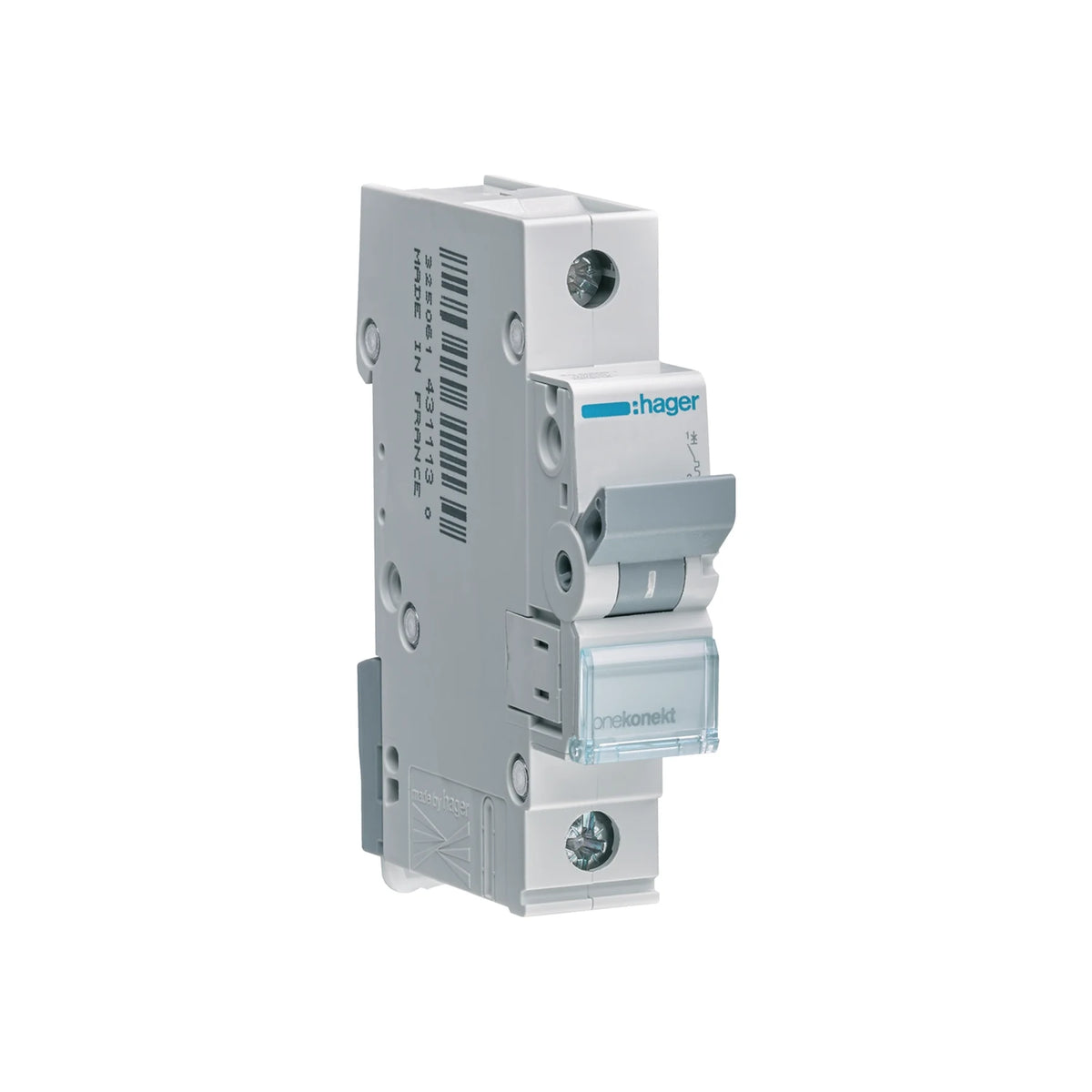

Hager miniature circuit breaker, characteristic curve C, 1-pole, 16A - MCN116

The Hager MCN116 miniature circuit breaker is a robust and reliable circuit breaker specifically designed for circuits with high inrush currents. With a rated current of 16 A and a C-curve tripping characteristic, this single-pole circuit breaker is ideal for residential and commercial applications where devices or systems draw higher currents for short periods.

Technical details:

• Manufacturer : Hager

• Model : MCN116

• Product type : Miniature circuit breaker (MCB)

• Number of poles : 1-pole – protects a single conductor in the circuit

• Rated current (In) : 16 A – suitable for circuits with higher current requirements

• Breaking capacity : 6 kA – offers high short-circuit withstand capability and is ideal for household and commercial applications

• Tripping characteristic : Characteristic curve C – trips at 5–10 times the rated current, ideal for circuits with temporarily increased inrush currents

• Power supply : 230/400 V AC – compatible with standard AC power grids

• Mounting type : DIN rail – enables easy and space-saving installation in the distribution box

• Operating temperature range : -25°C to +70°C – guarantees reliable operation even under varying temperatures.

• Protection class : IP20 – Protection against contact and foreign objects, suitable for dry indoor areas


Special features:

• C-curve tripping characteristic for high inrush currents : The C-curve is ideally suited for applications with briefly increased inrush currents, such as motors, transformers, or certain lighting systems. The MCN116 reliably protects against overload and short circuits by tripping at 5–10 times the rated current.

• 6 kA switching capacity : The high switching capacity of 6 kA ensures reliable protection against short circuits and overloads in numerous applications, making it particularly suitable for demanding residential and commercial installations.

• Compact design and easy installation : The space-saving design and DIN rail mounting make the MCN116 the ideal solution for distribution boxes with limited space. The switch lever is ergonomically designed for comfortable operation and maintenance.


Scope:

The Hager MCN116 miniature circuit breaker is the ideal choice for protecting electrical circuits in residential and commercial buildings that are subjected to devices with a short-term high inrush current. This includes applications such as lighting systems, heating appliances, or motors that have an increased current draw when switched on.

With the Hager MCN116 you choose a reliable, powerful and durable protective device that meets the highest requirements and impresses in modern electrical installations with its safety and ease of use.

Manufacturer part number : MCN116
Article number : VER0131
