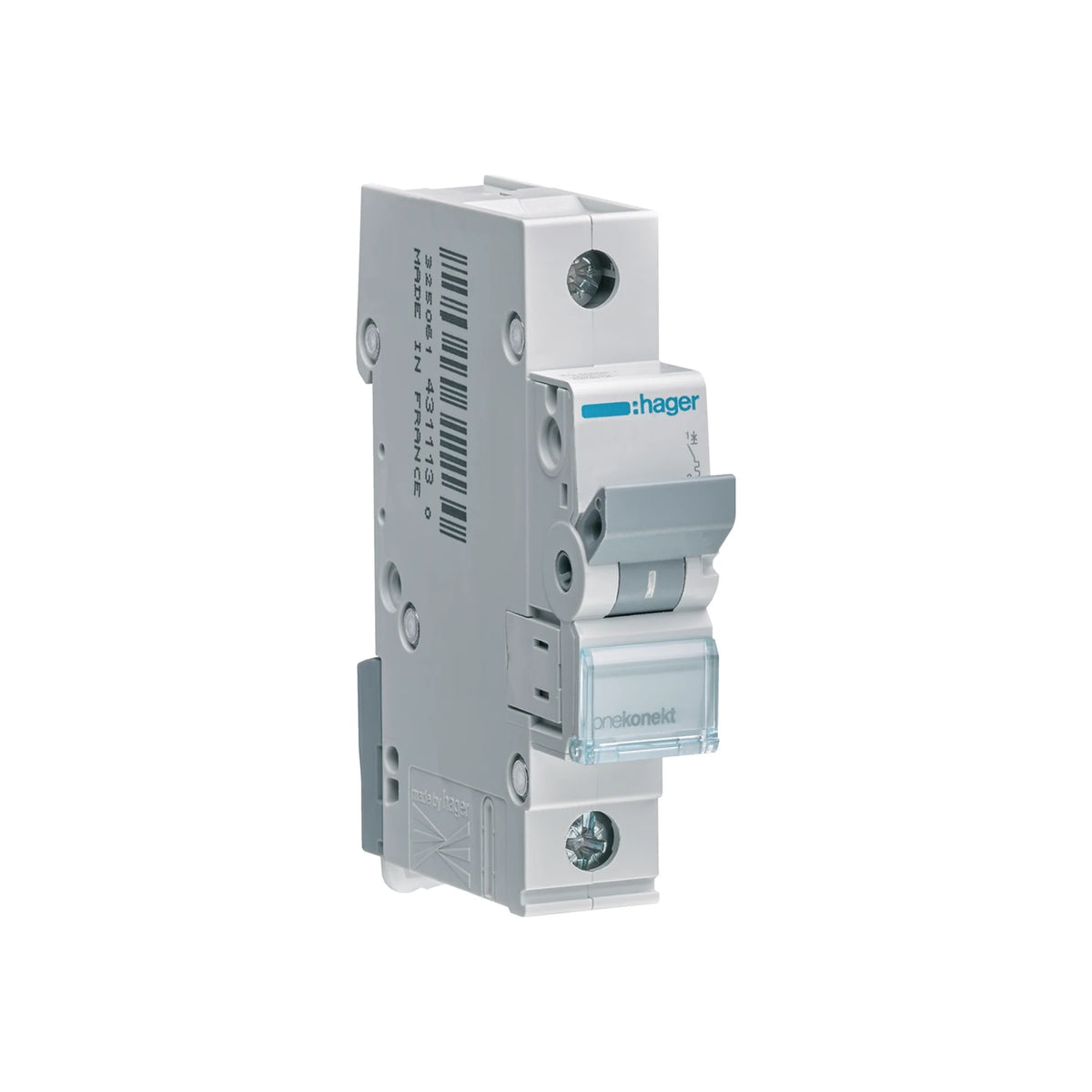

Hager miniature circuit breaker, characteristic curve C, 1-pole, 6A - MCN106

The Hager MCN106 miniature circuit breaker is a reliable circuit breaker specifically designed for circuits with moderate inrush currents. With a rated current of 6 A and a C-curve characteristic, this single-pole circuit breaker is ideal for protecting devices and circuits in residential and commercial buildings where higher inrush currents can occur, such as with fluorescent lamps or small motors.

Technical details:

• Manufacturer : Hager

• Model : MCN106

• Product type : Miniature circuit breaker (MCB)

• Number of poles : 1-pole – protects a single conductor in the circuit

• Rated current (In) : 6 A – ideal for circuits with low current requirements

• Breaking capacity : 6 kA – high short-circuit withstand capability, ideal for residential and light commercial applications

• Tripping characteristic : Characteristic curve C – trips at 5–10 times the rated current, suitable for circuits with briefly increased inrush currents, such as those caused by electronic devices or lighting with transformers.

• Power supply : 230/400 V AC – compatible with typical AC power grids

• Mounting type : DIN rail – enables easy and secure installation in the distribution box

• Operating temperature range : -25°C to +70°C – ensures reliable operation even under harsh environmental conditions

• Protection class : IP20 – offers protection against contact and foreign objects, ideal for use in dry indoor areas


Special features:

• Tripping characteristic C : The C characteristic curve is designed for circuits with increased inrush currents and enables reliable tripping at 5–10 times the rated current. Ideal for applications with devices that generate higher current peaks briefly when switched on, such as fluorescent lamps or small motors.

• High switching capacity of 6 kA : The MCN106 offers protection against sudden short circuits and overloads, ensuring maximum safety and stability in electrical installations.

• Compact design and easy installation : The circuit breaker is compact and can be installed on a DIN rail to save space. The ergonomic switch lever allows for easy operation and maintenance, and the clear labeling facilitates identification and installation.


Scope:

The Hager MCN106 miniature circuit breaker is ideally suited for applications in residential and light commercial buildings that require the protection of circuits with potential inrush currents. It is particularly suitable for protecting lighting systems, transformers, and small appliances that draw higher currents briefly during startup.

With the Hager MCN106 circuit breaker, you are choosing a durable, safe and robust protective device that meets high demands for reliability and safety in electrical installations and is specially designed for devices and circuits with increased inrush currents.

Manufacturer part number : MCN106
Article number : VER0125
