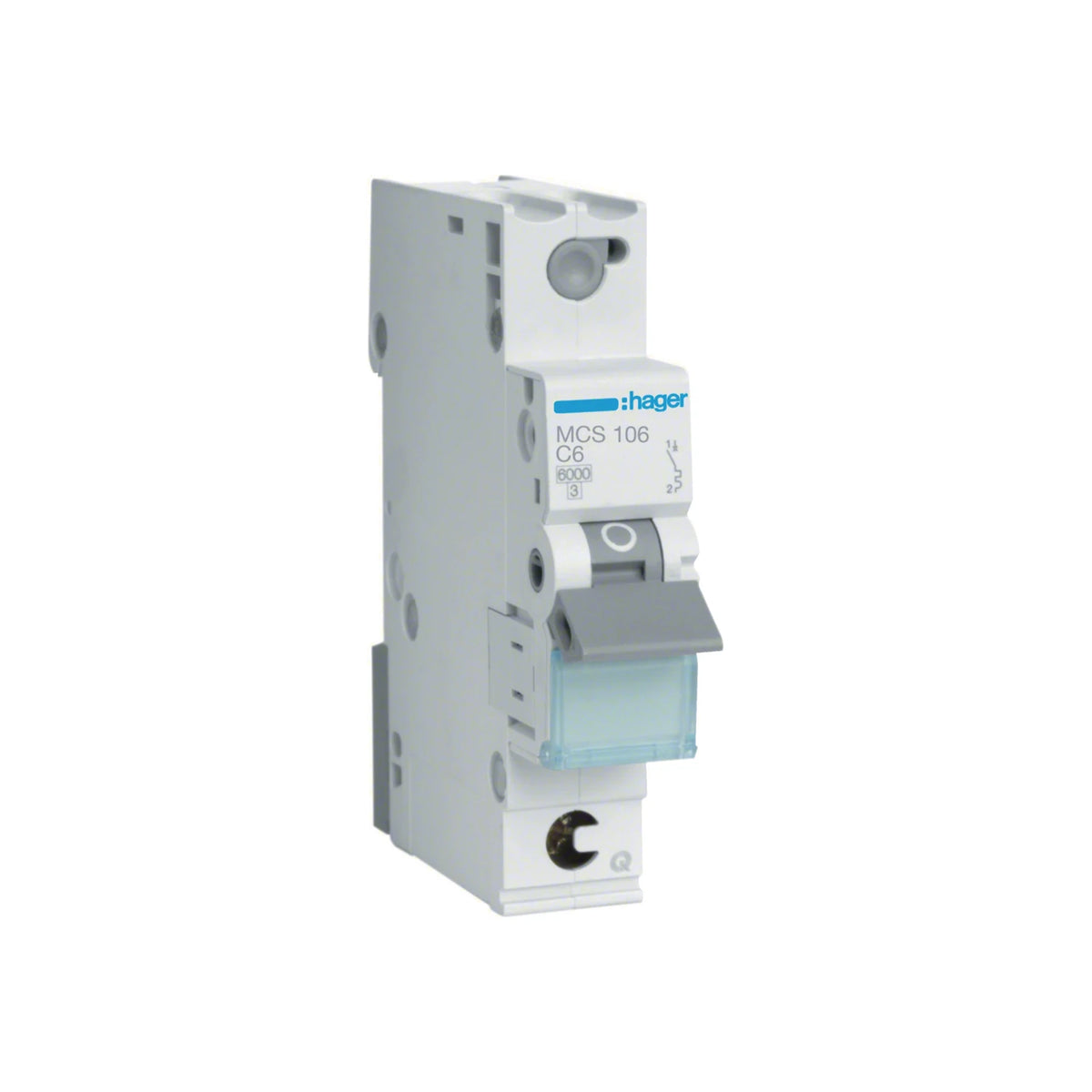

Hager miniature circuit breaker, characteristic curve C, 1-pole, 6A, QC - MCS106

The Hager MCS106 miniature circuit breaker is a high-performance circuit breaker designed to protect sensitive circuits with moderate inrush currents. With a rated current of 6 A and a C-curve tripping characteristic, this single-pole circuit breaker is ideal for residential and commercial applications where appliances or lighting systems may exhibit higher inrush currents. Thanks to QuickConnect (QC) technology, the breaker can be connected quickly and without tools, enabling time-saving installation.

Technical details:

• Manufacturer : Hager

• Model : MCS106

• Product type : Miniature circuit breaker (MCB)

• Number of poles : 1-pole – protects a single conductor in the circuit

• Rated current (In) : 6 A – ideal for circuits with low to moderate current requirements

• Switching capacity : 6 kA – high short-circuit withstand capability, suitable for use in residential and commercial installations

• Tripping characteristic : Characteristic curve C – trips at 5–10 times the rated current, ideal for applications with short-term high inrush currents

• QuickConnect (QC) : Tool-free connection option for quick and easy wiring.

• Power supply : 230/400 V AC – compatible with common AC power grids

• Mounting type : DIN rail – enables simple and space-saving installation in the distribution box

• Operating temperature range : -25°C to +70°C – suitable for reliable operation even with fluctuating ambient temperatures.

• Protection class : IP20 – Protection against contact and foreign objects, for use in dry indoor areas


Special features:

• QuickConnect Technology (QC) : The MCS106 is equipped with QuickConnect technology, which enables tool-free wiring. This makes the circuit breaker particularly quick and easy to install, reducing installation time and labor.

• Tripping characteristic C : With its C-curve, this circuit breaker is ideally suited for circuits that exhibit high inrush currents for short periods, such as those found in transformers, motors, or fluorescent lamps. Tripping occurs at 5–10 times the rated current, providing reliable protection.
• High safety thanks to 6 kA switching capacity : The MCS106 reliably protects against overload and short circuit and is suitable for applications in demanding environments where reliable protection and safety are required.

• Robust and compact design : The compact design of the MCS106 saves space in the control cabinet, and the ergonomic switch lever makes it easier to switch the device on and off and to maintain it.


Scope:

The Hager MCS106 miniature circuit breaker is perfectly suited for protecting final circuits in residential and commercial buildings that experience short-term high inrush currents, such as fluorescent lamps, transformers, or motors. Thanks to its quick and easy QuickConnect wiring, it is particularly suitable for installations where efficiency and safety are top priorities.

With the Hager MCS106 you get a durable, safe and installer-friendly protective device that meets the requirements of modern electrical installations and impresses with high safety and easy installation.

Manufacturer part number : MCS106
Article number : VER0126
