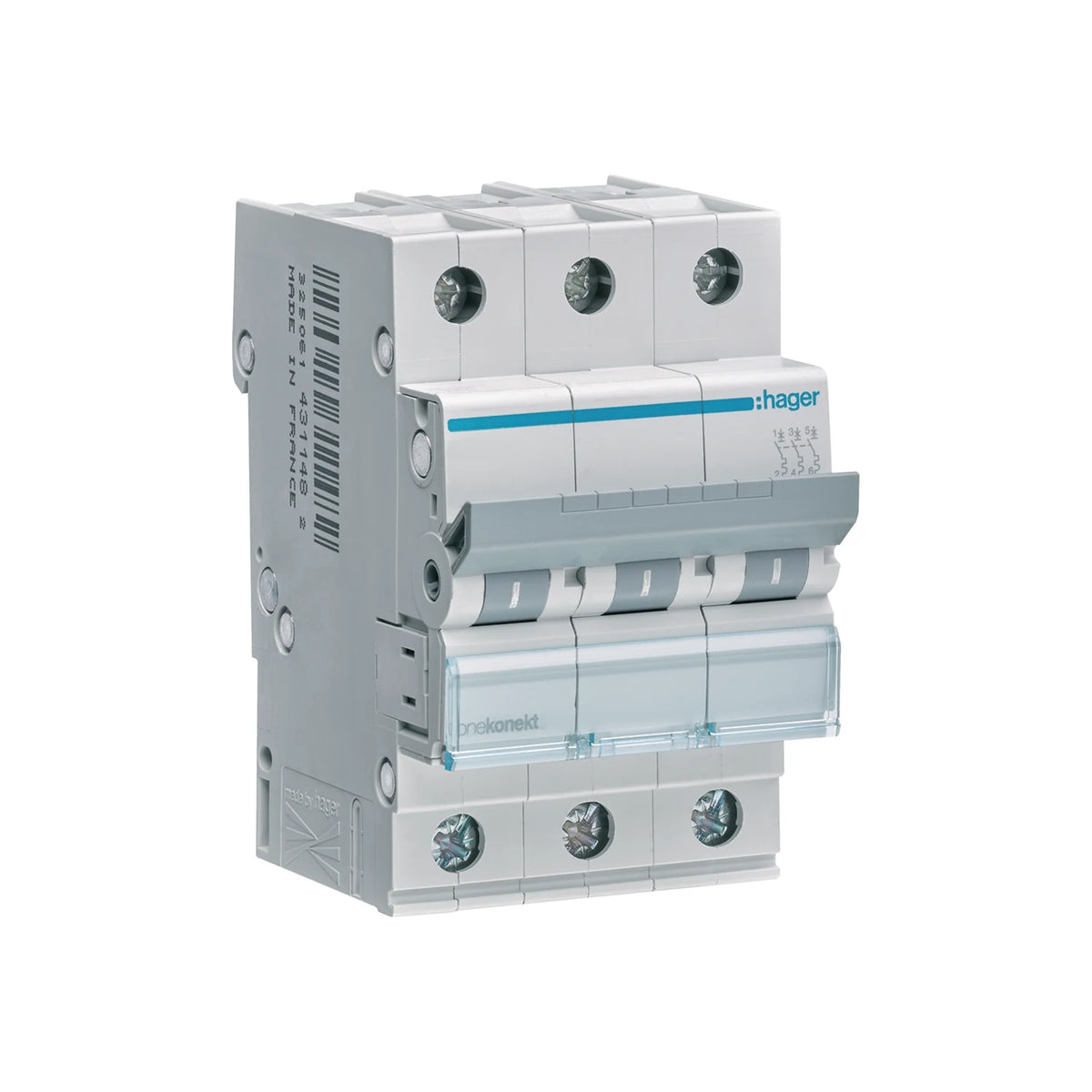

Hager miniature circuit breaker, characteristic curve C, 3-pole, 10A - MCN310

Hager miniature circuit breaker MCN310 – characteristic curve C, 3-pole, 10A

The Hager MCN310 miniature circuit breaker is a sophisticated 3-pole circuit breaker specifically designed for the reliable protection of electrical installations. With a rated current of 10 A and a robust C-curve tripping characteristic, this circuit breaker offers first-class protection against overloads and short circuits. Ideal for use in residential and commercial applications, the MCN310 ensures the safety of your electrical systems.

Technical details:

• Manufacturer : Hager

• Model : MCN310

• Product type : Miniature circuit breaker (MCB)

• Number of poles : 3 – protects three live conductors, perfect for three-phase systems

• Rated current (In) : 10 A – ideal for lower current loads

• Breaking capacity : 6 kA – offers high short-circuit withstand capability for additional protection

• Tripping characteristic : Characteristic curve C – trips at 5–10 times the rated current, optimal for inductive loads such as motors and transformers

• Power supply : 400 V AC – suitable for three-phase AC networks

• Mounting type : DIN rail – allows for easy installation in the distribution box

• Operating temperature range : -25°C to +70°C – ensures reliable operation under various conditions

• Protection class : IP20 – protects against contact and solid foreign objects, suitable for dry indoor areas


Advantages of the Hager MCN310:

1. Reliable protection : The MCN310 ensures comprehensive protection for your electrical installations. With its C-curve characteristic, it responds optimally to high inrush currents from inductive loads, making it the perfect choice for protecting motors and transformers.

2. High short-circuit withstand capability : With a breaking capacity of 6 kA, this circuit breaker protects against short circuits and reduces the risk of damage to electrical equipment, thus increasing operational safety.

3. Easy installation : The Hager MCN310 is designed for mounting on DIN rails, making installation quick and easy. Its compact design saves space in the distribution box.

4. Versatile applicability : The MCN310 is ideally suited for a wide variety of applications, including the protection of motors, pumps and other electrical equipment in industrial and commercial installations.


Conclusion:

The Hager MCN310 miniature circuit breaker is the ideal solution for anyone seeking reliable and high-performance protection for their electrical installations. With its outstanding technical features, it meets the requirements of modern electrical installations and ensures safe and stable operation. Trust the Hager MCN310 to effectively protect your electrical systems!

Manufacturer part number : MCN310
Article number : VER0158
