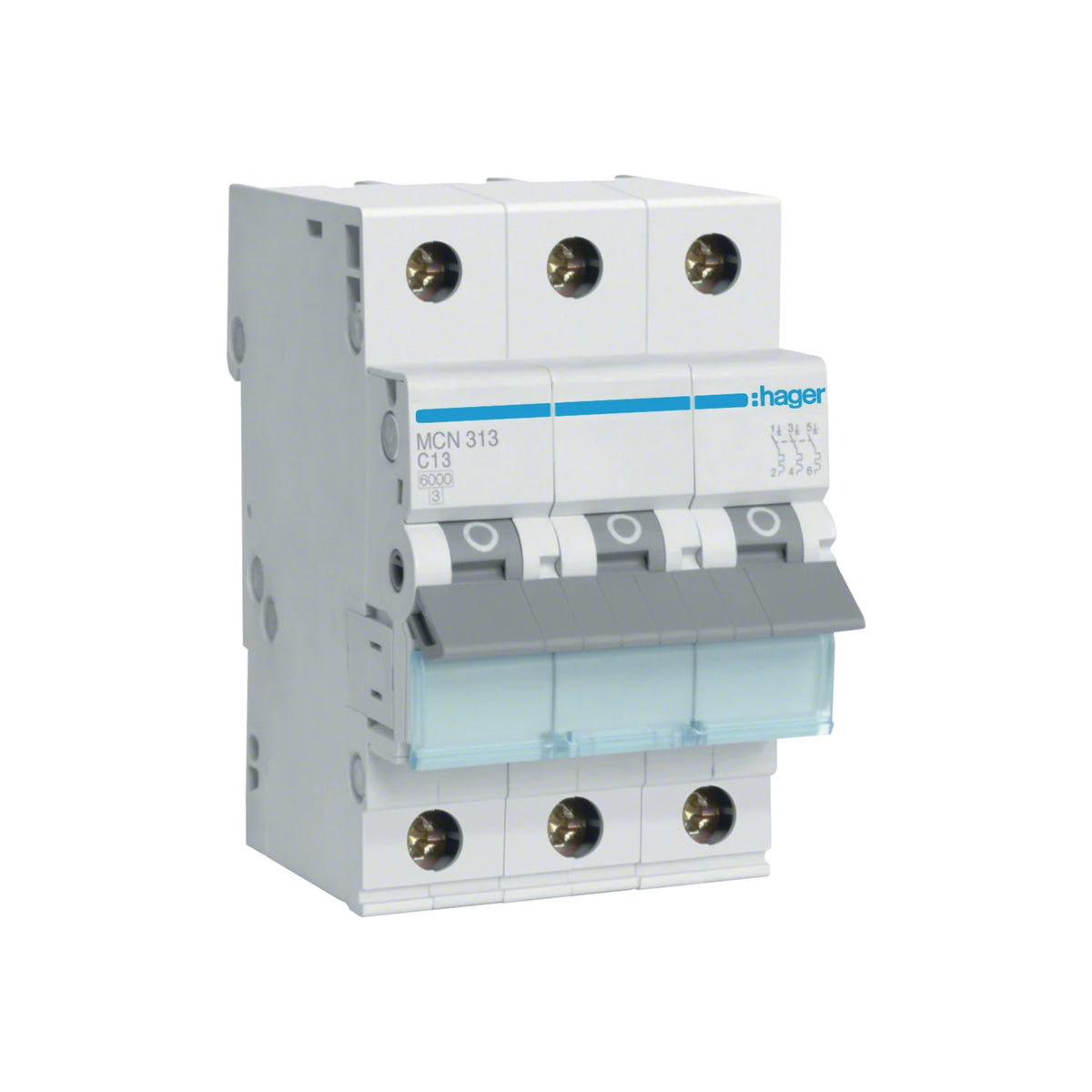

Hager miniature circuit breaker, characteristic curve C, 3-pole, 13A - MCN313

Hager miniature circuit breaker MCN313 – characteristic curve C, 3-pole, 13A

The Hager MCN313 miniature circuit breaker is an excellent choice for protecting your electrical installations. With a rated current of 13 A and a C-curve, this 3-pole circuit breaker is ideally suited for use in industrial and commercial applications. It offers reliable protection against overloads and short circuits, ensuring the safety of your electrical systems.

Technical details:

• Manufacturer : Hager

• Model : MCN313

• Product type : Miniature circuit breaker (MCB)

• Number of poles : 3 – protects three outer conductors and is ideal for three-phase systems

• Rated current (In) : 13 A – suitable for medium current loads

• Switching capacity : 6 kA – ensures high short-circuit withstand capability and reliable protection

• Tripping characteristic : C-curve – trips at 5–10 times the rated current, ideal for inductive loads such as motors and transformers

• Power supply : 400 V AC – suitable for three-phase AC networks

• Mounting type : DIN rail – allows for easy installation in the distribution box

• Operating temperature range : -25°C to +70°C – ensures reliable operation under various environmental conditions

• Protection class : IP20 – protects against contact and solid foreign objects, suitable for dry indoor areas


Advantages of the Hager MCN313:

1. Reliable protection : The MCN313 offers comprehensive protection for your electrical systems. With its C-curve characteristic, it responds optimally to high starting currents from inductive loads, making it the ideal choice for motors and transformers.

2. High short-circuit withstand capability : With a breaking capacity of 6 kA, this circuit breaker protects against short circuits and minimizes the risk of damage to electrical equipment and systems.

3. Easy installation : The Hager MCN313 is designed for mounting on DIN rails, which allows for quick and easy installation in the distribution box.

4. Versatile applicability : The MCN313 is perfectly suited for a wide variety of applications, including the protection of motors, pumps and other electrical equipment in industrial and commercial environments.


Conclusion:

The Hager MCN313 miniature circuit breaker is the ideal solution for anyone seeking reliable and high-performance protection for their electrical installations. With its outstanding technical features, it meets the requirements of modern electrical installations and ensures safe and stable operation. Trust the Hager MCN313 to effectively protect your electrical systems!

Manufacturer part number : MCN313
Article number : VER0160
