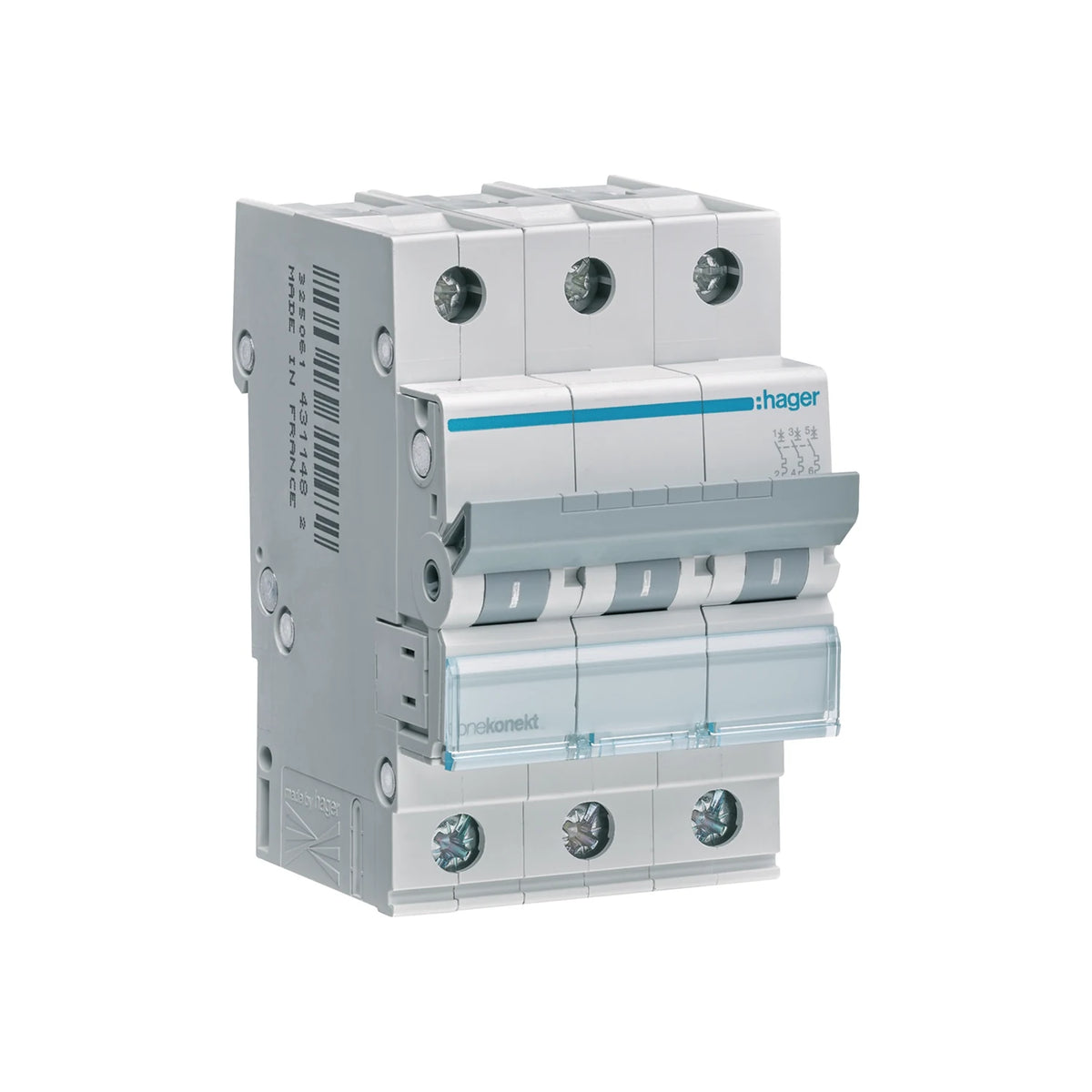

Hager miniature circuit breaker, characteristic curve C, 3-pole, 20A - MCN320

Hager miniature circuit breaker MCN320 – characteristic curve C, 3-pole, 20A

The Hager MCN320 miniature circuit breaker is a first-class solution for protecting your electrical installations. With a rated current of 20 A and a robust C-curve, this 3-pole circuit breaker is particularly suitable for commercial and industrial applications. It offers reliable protection against overloads and short circuits, thus ensuring the safety of your electrical systems.

Technical details:

• Manufacturer : Hager

• Model : MCN320

• Product type : Miniature circuit breaker (MCB)

• Number of poles : 3 – ideal for protecting three-phase circuits

• Rated current (In) : 20 A – designed for medium to high current loads

• Switching capacity : 6 kA – ensures high short-circuit withstand capability and reliable protection

• Tripping characteristic : Characteristic curve C – trips at 5–10 times the rated current, optimal for inductive loads such as motors and transformers

• Power supply : 400 V AC – suitable for three-phase AC networks

• Mounting type : DIN rail – for easy installation in the distribution box

• Operating temperature range : -25°C to +70°C – ensures reliable operation under various environmental conditions

• Protection class : IP20 – protects against contact and solid foreign objects, ideal for dry indoor areas


Advantages of the Hager MCN320:

1. Reliable protection : The MCN320 offers excellent protection against overloads and short circuits, thus extending the lifespan of your electrical devices.

2. High switching capacity : With a switching capacity of 6 kA, this circuit breaker is able to react quickly to short circuits and prevent damage to your electrical systems.

3. Easy installation : The Hager MCN320 is designed for mounting on DIN rails, which allows for quick and easy installation in the distribution box.

4. Versatile applications : The MCN320 is ideally suited for protecting industrial machinery, pumps and other equipment in commercial applications.


Conclusion:

The Hager MCN320 miniature circuit breaker is the ideal choice for anyone seeking a reliable and high-performance solution for protecting their electrical installations. With its excellent technical features and versatile application, it meets the requirements of modern electrical installations. Choose the Hager MCN320 to effectively protect your electrical systems!

Manufacturer part number : MCN320
Article number : VER0164
