Hager miniature circuit breaker, characteristic curve C, 3-pole, 20A, QC - MCS320

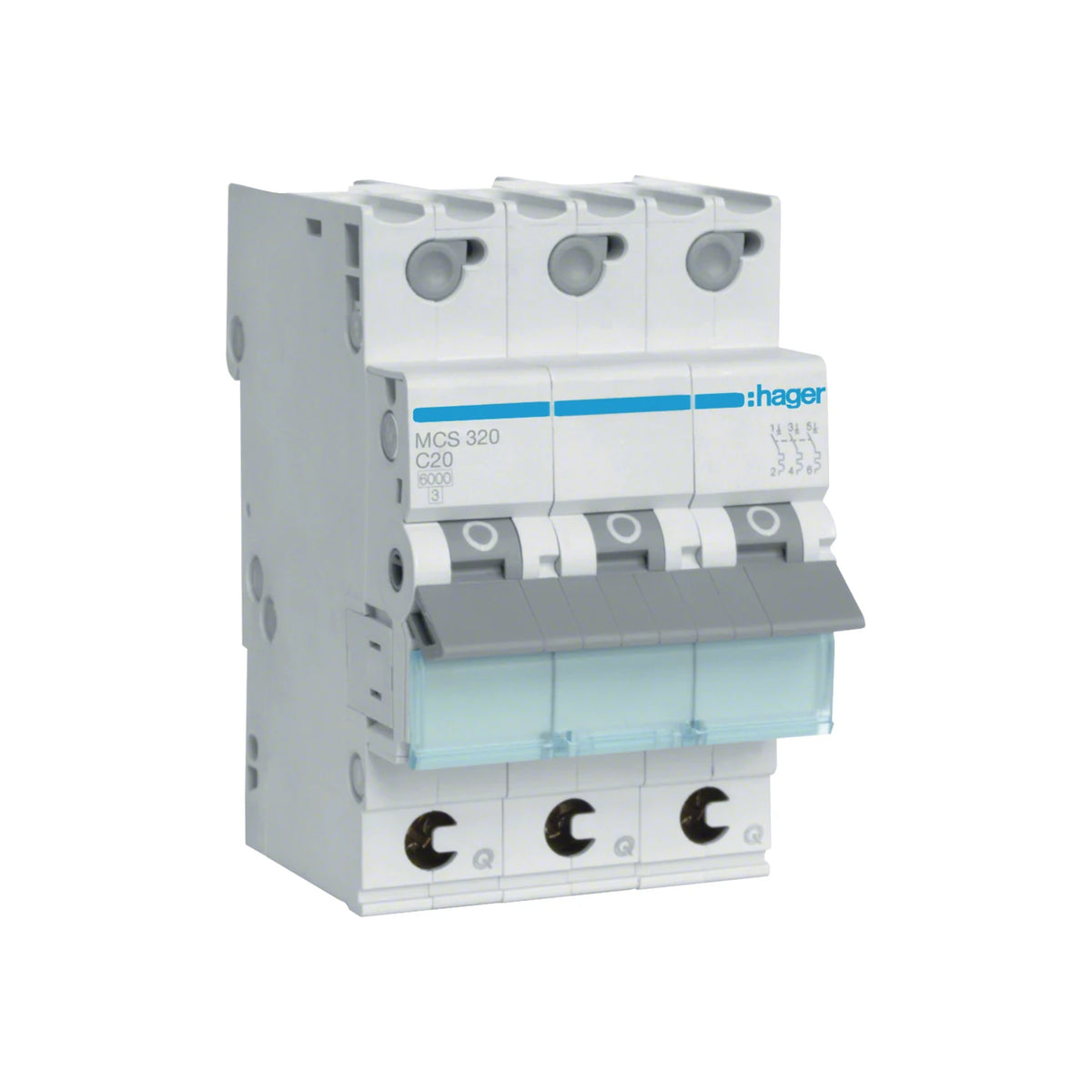

Hager MCS320 miniature circuit breaker – characteristic curve C, 3-pole, 20A, QC

The Hager MCS320 miniature circuit breaker is a first-class choice for the reliable protection of your electrical installations. With a rated current of 20 A and a robust C-curve, this 3-pole circuit breaker is ideal for use in commercial and industrial applications. The integrated Quick Connect (QC) technology simplifies installation and enables fast and safe wiring.

Technical details:

• Manufacturer : Hager

• Model : MCS320

• Product type : Miniature circuit breaker (MCB)

• Number of poles : 3 – protects three outer conductors and is ideally suited for three-phase systems

• Rated current (In) : 20 A – designed for medium to high current loads

• Switching capacity : 6 kA – ensures high short-circuit withstand capability and reliable protection

• Tripping characteristic : C-curve – trips at 5–10 times the rated current, ideal for inductive loads such as motors and transformers

• Power supply : 400 V AC – suitable for three-phase AC networks

• Mounting type : DIN rail – for easy installation in the distribution box

• Operating temperature range : -25°C to +70°C – ensures reliable operation under various environmental conditions

• Protection class : IP20 – protects against contact and solid foreign objects, suitable for dry indoor areas

• Quick Connect (QC) function : significantly simplifies installation and wiring, thereby reducing time and effort.


Advantages of the Hager MCS320:

1. Reliable protection : The MCS320 protects your electrical systems from overloads and short circuits, especially in applications with high inrush currents.

2. Easy installation : Quick Connect technology enables fast and straightforward wiring, minimizing installation effort and time.

3. High switching capacity : With a switching capacity of 6 kA, this circuit breaker provides effective protection against short circuits and contributes to the longevity of your electrical devices.

4. Versatile applicability : The Hager MCS320 is ideally suited for protecting motors, pumps and other electrical equipment in industrial and commercial applications.


Conclusion:

The Hager MCS320 miniature circuit breaker is the perfect choice for anyone seeking a powerful and user-friendly solution for protecting their electrical installations. With its outstanding technical features and convenient Quick Connect function, it meets the demands of modern electrical installations and ensures safe operation. Trust the Hager MCS320 to effectively protect your electrical systems!

Manufacturer part number : MCS320
Article number : VER0165
