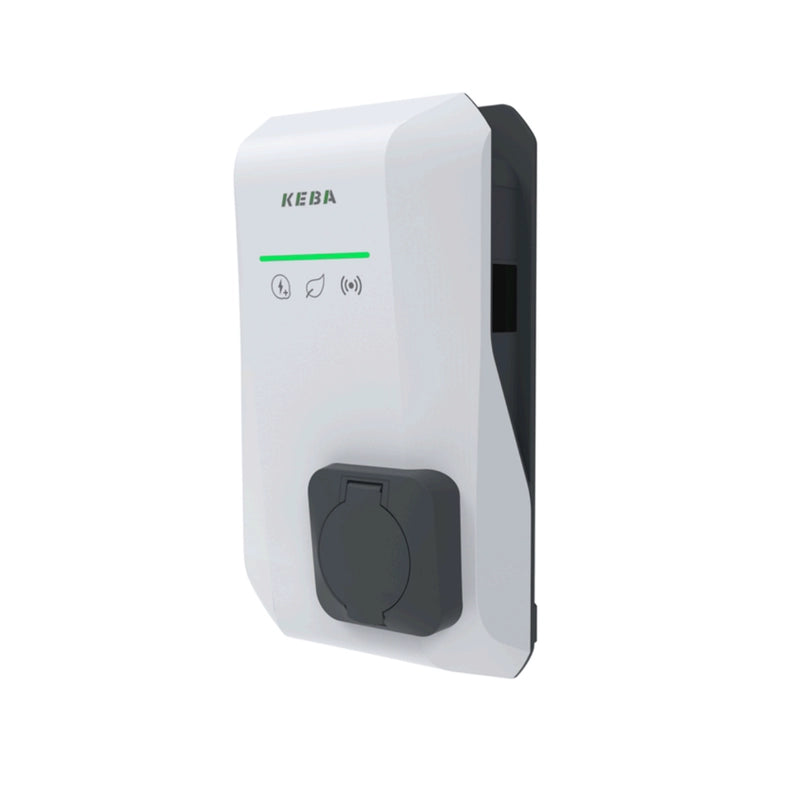

KEBA KeContact P40 Pro white 22 kW – socket, RFID, BLE, WLAN, LTE, ISO 15118, MessEV
The KEBA KeContact P40 Pro is an AC charging station for indoor and outdoor use and supports Mode 3 charging according to EN 61851-1.
Performance and supply
- Power variant: 22 kW .
- Rated current: 32 A .
- Nominal supply voltage: 230 / 3x230 (400) V .
- Mains frequency: 50 Hz .
- Network types: TT / TN / IT .
- Current limit adjustable via service button: 6 A, 8 A, 10 A, 13 A, 16 A, 20 A, 25 A, 32 A .
- Current limit adjustable via app between 6 A and 32 A in 1 A increments.
Charging port
- Version as a bushing variant .
- Charging port: Type 2 socket according to EN 62196-1 and EN 62196-2.
- Maximum charging current: up to 32 A / 400 V AC .
Energy meter
- Integrated electricity meter for active power.
- Design: Certified by MessEV .
Communication and interfaces
- Backend communication protocol: OCPP 1.6 .
- Support for ISO 15118 .
- Local protocols: Modbus TCP .
-
WLAN (IEEE 802.11 b,g,n, 2.4 GHz).
-
Bluetooth® BLE 5.0 or higher for connection to the KEBA eMobility App.
-
LTE connectivity.
- Ethernet interface RJ45 (10/100 Mbit/s) .
- Serial energy meter interface RS485 .
RFID and operation
-
RFID function (ISO 14443 or ISO 15693, 13.56 MHz).
- User interface: LED .
Protective and safety features
- Protection class: I .
- Protection class: IP54 .
- Protection against mechanical impact: IK08 (socket variant).
- Residual current protection: RCCB type A.
- DC residual current monitoring RDC-DD (6 mA DC) according to IEC 62955.
- Rated residual current: 30 mA .
Assembly and dimensions
- Mounting: Wall mounting or freestanding column.
- Dimensions (H × W × D): 411 × 221 × 127 mm .
- Weight: approx. 3.8 kg (depending on variant).
- Operating temperature (with certified measuring device): -25 °C to +50 °C .
design
- Design cover: White
- Lower part: Anthracite grey
Conclusion
The KEBA KeContact P40 Pro in 22 kW version combines high charging power with MessEV-compliant energy recording.
Thanks to RFID, WLAN, LTE, Bluetooth® and ISO 15118, it is suitable for professional applications in private and commercial environments.
