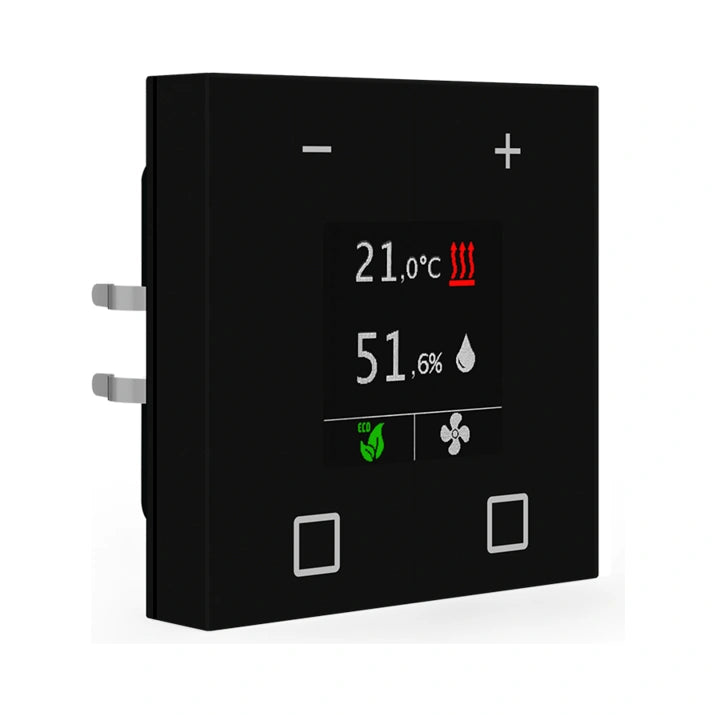

MDT Smart 55 room temperature controller – climate control in elegant matte black
The MDT Smart 55 room temperature controller SCN-RTR55S06.01 in matte black controls the room temperature with an integrated temperature and humidity sensor. It controls switching or heating actuators with thermal or motorized KNX actuators. It also offers 4 binary inputs for push buttons, switches, or window contacts.
Main features
-
Control
- Active color display, adjustable background color and display brightness
- Display of setpoint and actual temperature, easy setpoint adjustment via +/- buttons
- Selectable 2-point, PI or PWM control type
- Storage of setpoints in the event of a bus power failure, frost alarm
- Dew point calculation and notification when leaving the comfort range
- Ventilation control with manual or automatic operation, 14-byte plain text diagnostics
-
Suitable for 55 mm switch programs in matte black
-
GIRA: E2
-
BERKER: B3, B7
-
JUNG: A550
-
MERTEN: M-Pure
Technical details
- Temperature sensor: -10 to +50 °C
- Humidity sensor: 0 – 95 % (avoid condensation)
- Binary inputs: 4 for potential-free contacts
- Power supply: KNX bus, typ. < 0.3 W
- Dimensions (W x H): 55 x 55 mm
- Color: Matte black
- Installation in switch box with supplied mounting ring
- Recommended mounting height: 1.6 m, 22 cm connection cable
- Ambient temperature: 0 to +45 °C
- Protection rating: IP20
Applications
- Individual room control for heating and cooling
- Connection of window contacts and push buttons
- Dark switch programs in modern residential buildings
Additional benefits
- Integrated bus coupler
- Production in Engelskirchen (Germany), certified according to ISO 9001
-
3-year product warranty from MDT
With the MDT 55 x 55 mm temperature controller with display matte black UP (SCN-RTR55S06.01), you are choosing KNX technology from MDT technologies in Germany. This allows you to benefit from well-thought-out functions, easy commissioning in ETS, and long-lasting quality. Order now at techarena24.shop and take your building automation to the next level.
Product information
Manufacturer part number: SCN-RTR55S06.01
Item number: SMH0327
